• Model NO.：GM-SB-76CNC-2A-1S
• Type：Pipe and Tube Bending Machine
• Transport Package：Iron Frame
• Trademark：GMACC
• Origin：China
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-SB-76CNC-2A-1S Type Pipe and Tube Bending Machine Transport Package Iron Frame Trademark GMACC Origin China Production Capacity 5000PCS/Year

Product Description

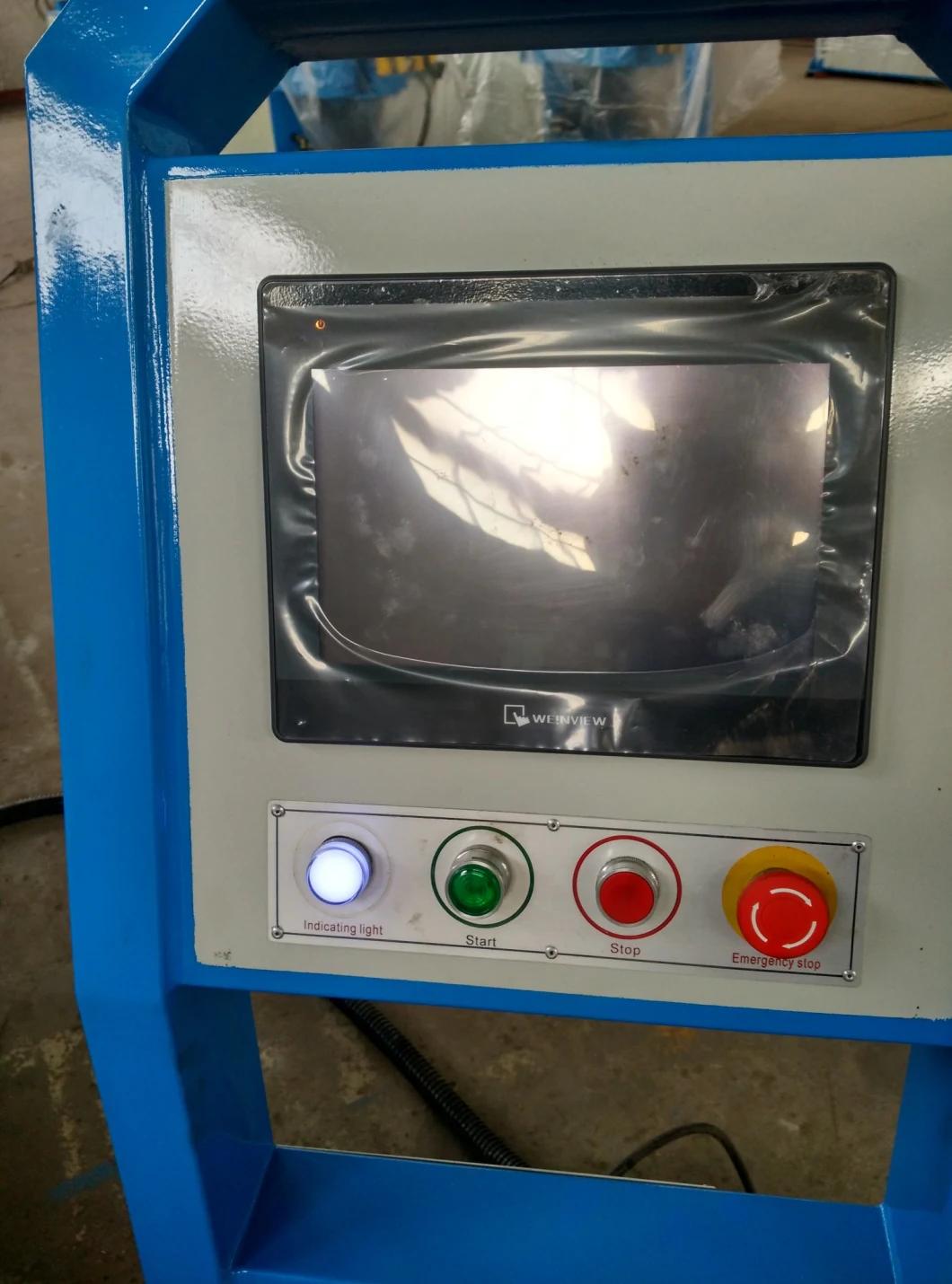

GM-SB-76CNC automatically bend in the same machine suitable for continuous automatic workpiece complete different direction, a number of different angles of three-dimensional workpieces, using the touch-screen machine operators and industrial computer control procedures, is an efficient, economical automatic pipe bender. 1. Construction Machine Body by welding, mechanical parts assembly, import hydraulic system, electronic control of imports of fabric to complete. 2. Major performances Using industrial touch screen, in English mode menu is simple, with high precision, fast, multifunctional and high degree of automation. Each action of machine is controlled by PLC programme control system.
3. The technical parameters
Name Unit GM-SB-76CNC
Max. Bending Capacity mm 76*4
Bending Radius Region mm 30-350
Bending Angle Region ° 0- 190
Max. Through Effective Distance mm 2500
Bending Precision ° ± 0.10
Bending Speed ° /sec 30
Feeding Precision mm ± 0.10
Feeding Speed mm/sec 800
Turn Pipe Precision ° ± 0.10
Turn Pipe Speed ° /sec 160
Motor Power of Oil Pump System KW 7.5
Max. Pressure Kgh/cm2 16
General Length*Width*Height mm 5000*1200*1350
General Weight T 3.5

1. Configuration of Hydraulic and Electronic Control System


Name	Manufacturer
Hydraulic Motor	Suzhou Jialifan
Hydraulic Pump	Wuxi Tuoli
Hydraulic Valve	Japan Yuken(Imported)
Oil way Board	Suzhou Kejia
Cylinder	Shanghai Qifan
Oil tube	Suzhou Kejia
Touch screen	Taiwan Weinview(Imported)
PLC	Japan Mitsubishi(Imported)
Angle controller	Japan Nemicon(Imported)
Switch power	Wenzhou Changjiang
Contactor	German SCHNEIDER(Imported)
Other Electric Parts	German SCHNEIDER,Omron, Taiwan SHILIN(Imported)
