• Model NO.：GM-SB-168NCBA
• Type：Pipe and Tube Bending Machine
• Transport Package：Iron Frame
• Specification：GM-SB-168NCBA
• Trademark：GMACC
• Origin：China
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-SB-168NCBA Type Pipe and Tube Bending Machine Transport Package Iron Frame Specification GM-SB-168NCBA Trademark GMACC Origin China Production Capacity 5000PCS/Year

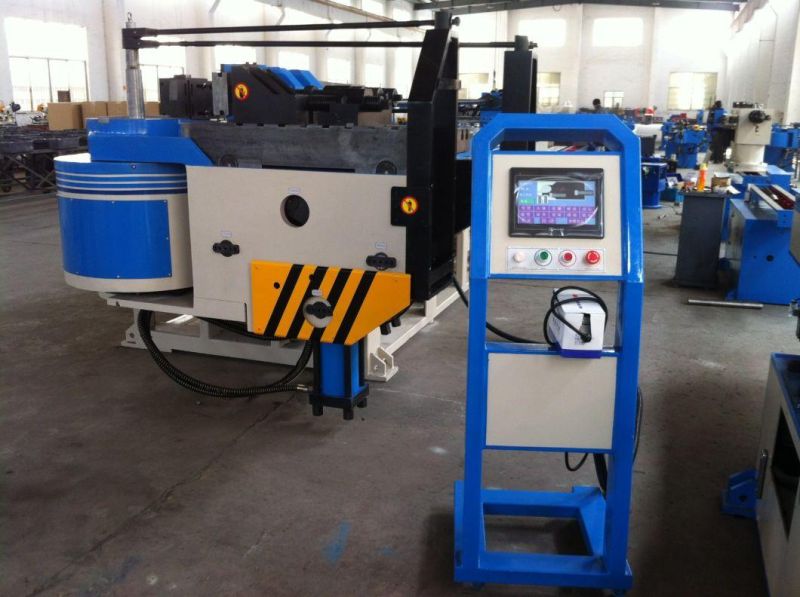

Product Description

1. Construction Machine Body by welding, mechanical parts assembly, import hydraulic system, electronic control of imports of fabric to complete.

2. Major performances Using industrial touch screen, in English mode menu is simple, with high precision, fast, multifunctional and high degree of automation. Each action of machine is controlled by PLC programme control system.

3. The technical parameters
Name Unit GM-SB-168NC
Max. Bending Capacity mm 168*12
Bending Radius Region mm 120-650
Bending Angle Region ° 0- 190
Bending Precision ° ± 0.15
Bending Speed ° /sec 12
Turn Pipe Precision ° ± 0.10
Turn Pipe Speed ° /sec 160
Motor Power of Oil Pump System KW 22
Max. Pressure Kgh/cm2 16
Oil flow productivity of the pump L 45
General Length*Width*Height mm 10000*2100*1400
General Weight T 12

4. Configuration
A) linear guide way, made in Taiwan ABBA Hydraulic system, have adopted a combination of import items Fuzhou, Taiwan's sole hydraulic motor-source Hydraulic Pump, made in Taiwan Hydraulic Elements, made in USA BEST Oil way board, made in Taiwan Cylinder, made in Shanghai
Double-layer laminated steel tubing used legitimately imported Taiwan Datong
B) Electronic parts Touch screen made in Taiwan
PLC made in Taiwan
Servo motor made in Taiwan
Other Electronic, made in Taiwan
