• Model NO.：GM-SB-42B
• Type：Pipe and Tube Bending Machine
• Transport Package：Iron Frame
• Specification：GM-SB-42B
• Trademark：GMACC
• Origin：China
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-SB-42B Type Pipe and Tube Bending Machine Transport Package Iron Frame Specification GM-SB-42B Trademark GMACC Origin China Production Capacity 5000PCS/Year

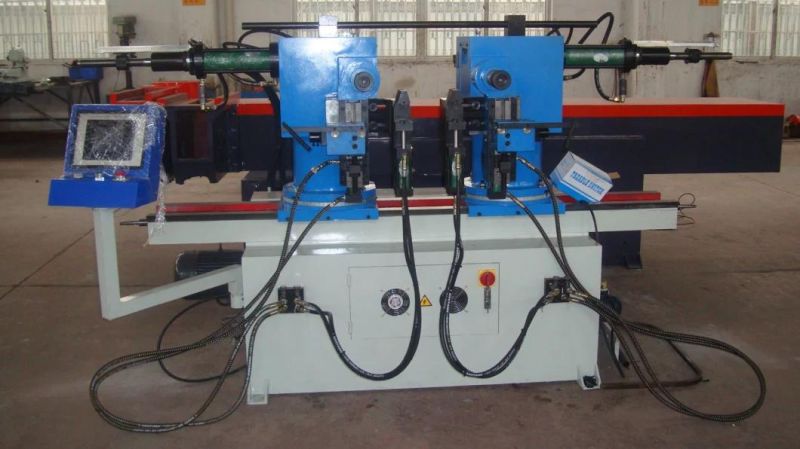

Product Description

1. Characteristics of the machine:
(1) The control system has normal PLC type and contact digital control type.
(2) According to different base frame, it can be divided into standard type and rotary type.
(3) Hand-operated, auto, semi-circulation and other functions can be chosen.
(4) PLC control, imported electric elements. The program can be stored forever, no losing.

(5) Foot switch has auto start, emergency stop, emergency-stop and going on function, it has high safety.
(6) Double head can be used separately.
(7) Three pieces can be bended one times.

Main technical parameters	unit	GM-DB-42B
Max pipe bending capacity	mm	42×2
Bending radius region	mm	42~250
Max bending angle region	°	185°
Centre distance of double head	mm	170-1450
Main motor power	kw	4
Bending speed	°/sec	50
Oil flow productivity of the pump	L	17
Oil system pressure	mpa	14
Clamping traverse	mm	50
Pieces of one time bending	piece	3
Capacity of oil tank	L	120
Machine dimension	mm	2700×900×1800
Machine weight	kg	1800
