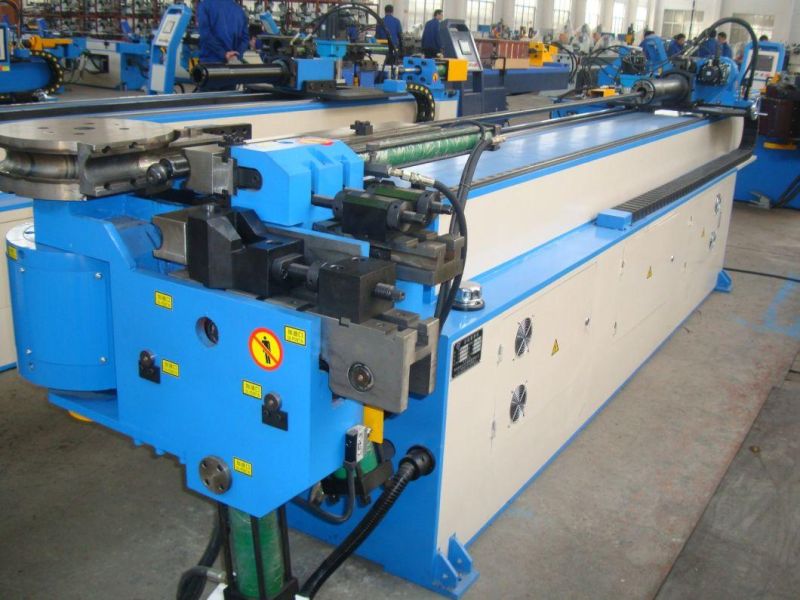

GM-SB-38CNC-2A-1S Full-Auto Numerical Control
Single-Head Bending Machine
Model:38×2A×1S

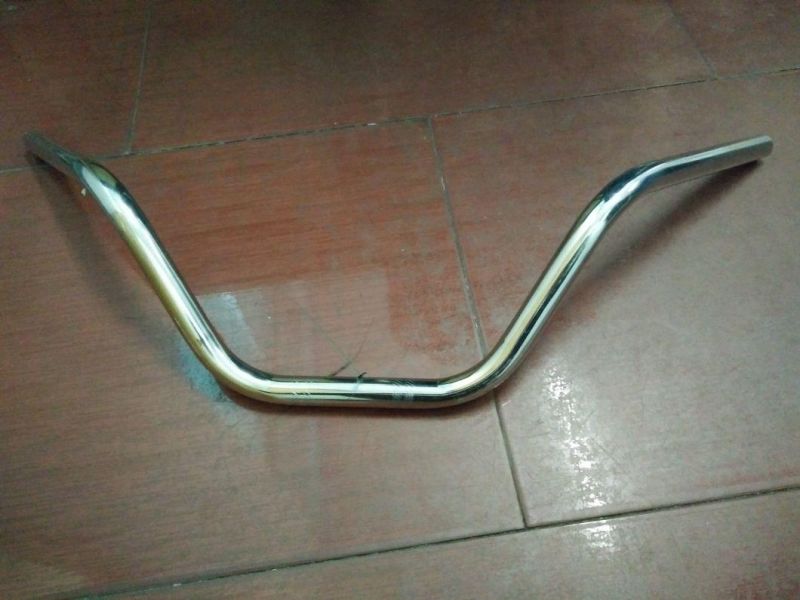

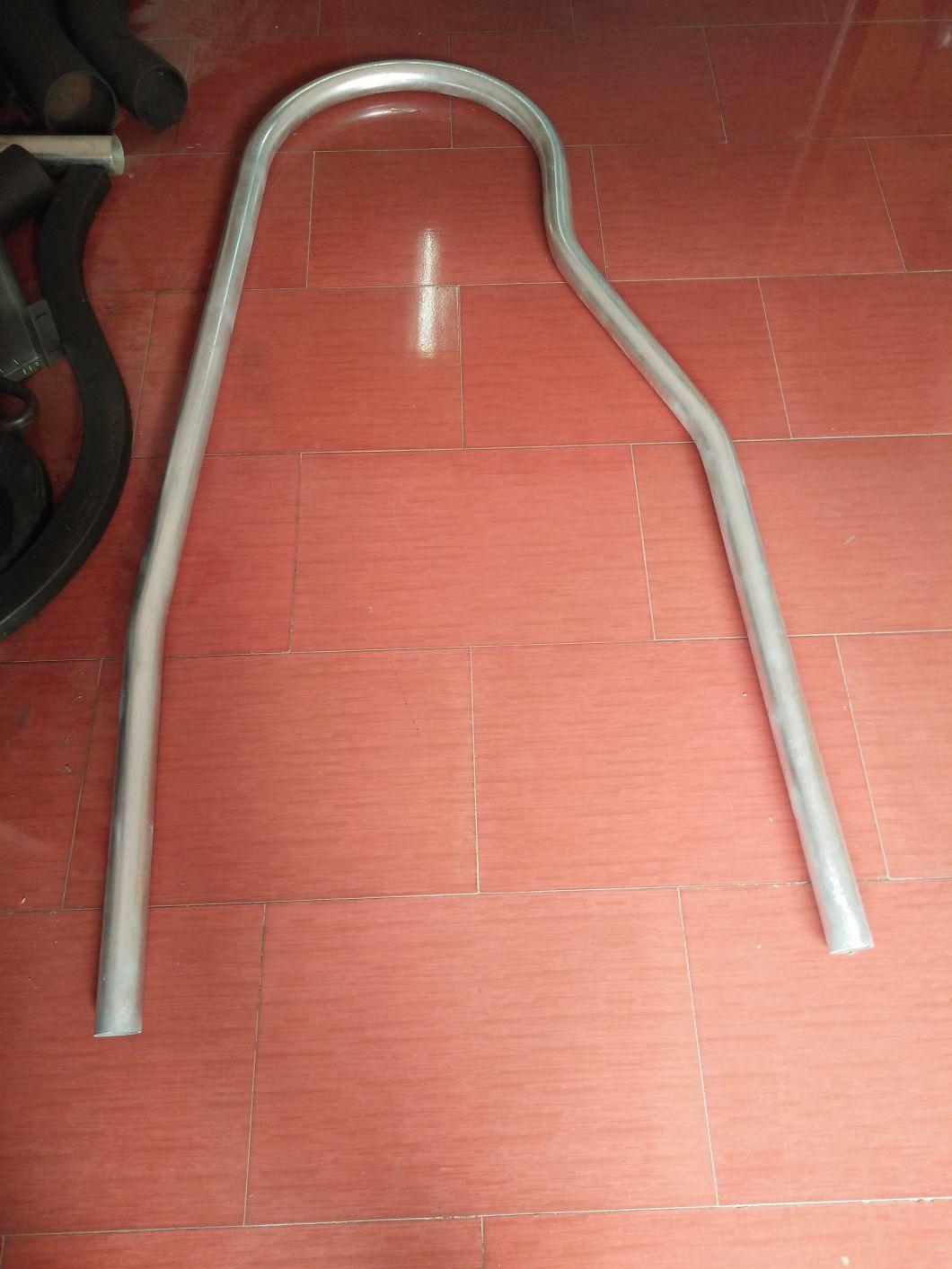

1. Machine Characteristics

GM-SB-38CNC-2A-1S Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinates of motions under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. Pipe rotating (B axis), and pipe feeding(Y axis) are both driven by servo motor. Pipe bending(C axis) is hydraulic by cylinder.

1. Main Technical Parameter

Name	Unit	Parameter
Mild steel round tube	mm	38*2
Bending Radius Range	mm	20-250
Max. Bending Angle	°	190°
Bending Speed	°/sec	45
Turning Speed	°/sec	200
Feeding Speed	mm/sec	1000
Bending Precision	°	±0.10
Turning Precision	°	±0.10
Feeding Precision	°	±0.10
Turning Servomotor Power	kW	1
Feeding Servomotor Power	kW	0.75
Though Effective Distance	mm	3500
System Motor Power	kW	5.5
Max. Pressure	Mpa	16
Oil Pump Delivery Volume	L	17
L*W*H (Packaging Dimension)	mm	4000*800*1300
Weight	T	2.5



1. Configuration of Hydraulic and Electronic Control System

Name	Manufacturer
Hydraulic Motor	Suzhou Runmali
Hydraulic Pump	Wuxi Tuoli
Hydraulic Valve	Japan Yuken
Oil way Board	Suzhou Boguan
Cylinder	Shanghai Qifan
Oil tube	Suzhou Kejia
Touch screen	Taiwan Weinview
PLC	Japan Mitsubishi
Servo Motor	Japan Mitsubishi
Angle controller	Japan Nemicon
Switch power	Wenzhou Changxing
Contactor	German SCHNEIDER(Imported)
Other Electric Parts	German SCHNEIDER,Omron, Taiwan SHILIN(Imported)
