Nc Series Automatic Pipe Bender GM-50ncba
Zhangjiagang King-Macc Machinery Manufacturing Co., Ltd.- Waterproof Rating:IPX-8
- Warranty:2-year
- Condition:New
- Certification:ISO 9001:2008, CE, UL
- Automation:Automatic
- Suitable for:Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.:GM-50NCBA
- Type:Pipe and Tube Bending Machine
- Certificate:ISO9001: 2000
- Applicable Material:S. S, M. S., Copper, Aluminium, Alloy, Galvanized
- Applicable Shape:Round, Rectangle, Square, Oval, Solid Bar, Profile
- Bending Drive:Hydraulic
- Technical:Cold Bend
- Transport Package:Iron Frame,Wooden Case
- Specification:CE
- Trademark:GMACC
- Origin:China
- HS Code:8462219000
- Production Capacity:5000PCS,Year
Description
Basic Info.
Model NO. GM-50NCBA Type Pipe and Tube Bending Machine Certificate ISO9001: 2000 Applicable Material S. S, M. S., Copper, Aluminium, Alloy, Galvanized Applicable Shape Round, Rectangle, Square, Oval, Solid Bar, Profile Bending Drive Hydraulic Technical Cold Bend Transport Package Iron Frame/Wooden Case Specification CE Trademark GMACC Origin China HS Code 8462219000 Production Capacity 5000PCS/YearProduct Description

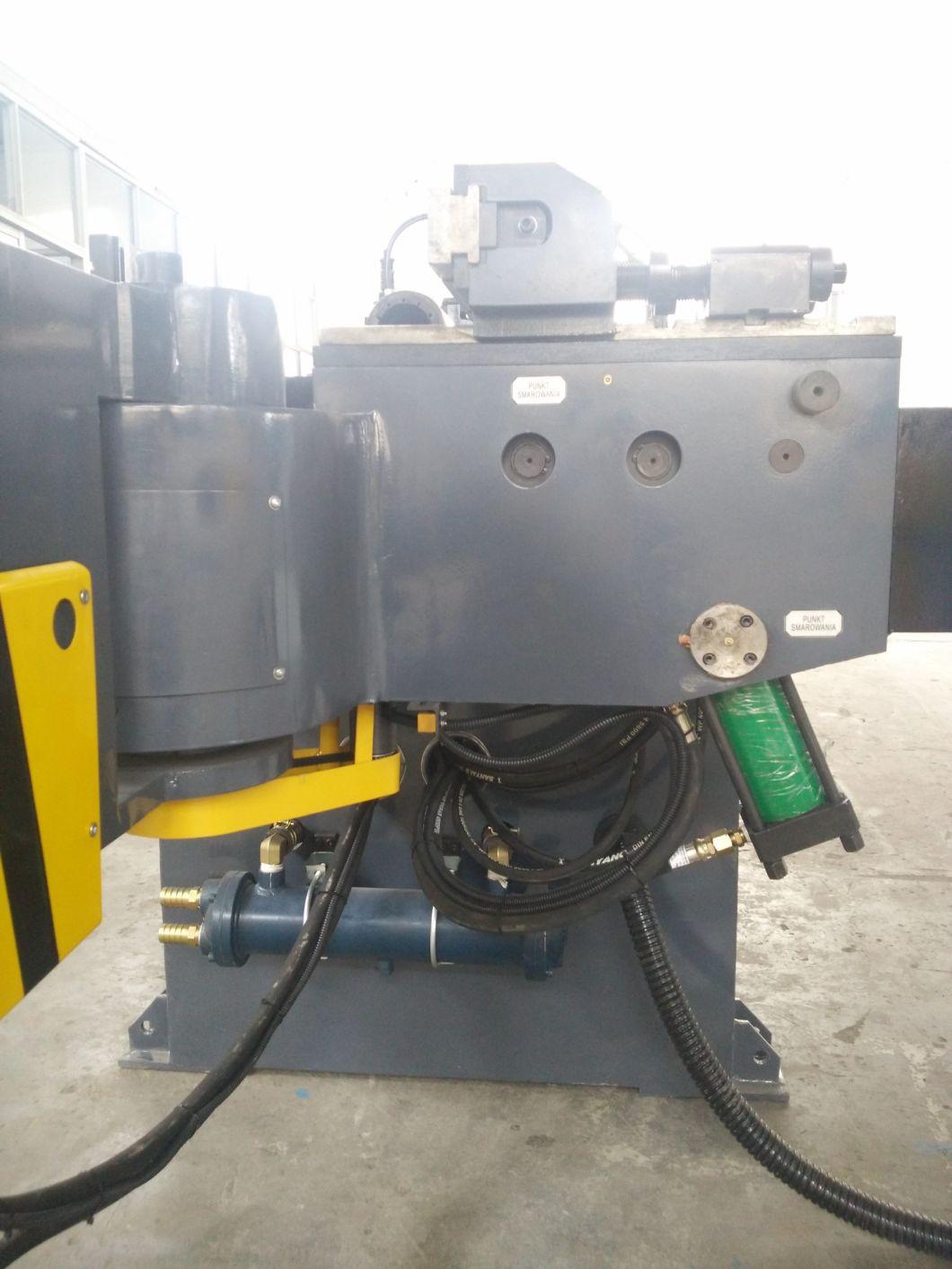

Machine CharacteristicsGM-SB-50NCBA series single-head bending machine, importing advanced design technology from Italy, is a kind of automatic three-dimensional pipe bending machine, integrated with machine lathe, hydraulic, and electricity. Various data and orders can be input and stored in advanced imported touch screen, which can automatically rotate the angle in three dimension continuously, besides, manual material feeding meets the requirement for processing precision of complicated work pieces all make NCBA series a professional and high speed European pipe bending equipment.
Main Technical Parameter
Name | Unit | Parameter |
Max. Bending Capacity | mm | ¢50*2 |
Bending Radius Range | mm | 20-250 |
Max. Bending Angle | ° | 190° |
Though Effective Distance | mm | 2300 |
Bending speed | °/sec | 45 |
Turning speed | °/sec | 200 |
Bending precision | ° | ±0.10 |
Turning precision | ° | ±0.10 |
Rotating Servomotor Power | KW | 0.75 |
System Motor Power | KW | 5.5 |
Oil Pump Delivery Volume | L | 17 |
Max. Pressure | Mpa | 16 |
L*W*H (Packaging Dimension) | mm | 4000*800*1300 |
Weight | T | 2.5 |
Name | Manufacturer |
Hydraulic Motor | Siemens or Suzhou Runmaili |
Hydraulic Pump | Wuxi Tuoli |
Hydraulic Valve | Japan Yuken(Imported) |
Oil way Board | Suzhou Boguan |
Cylinder | Shanghai Qifan |
Oil tube | Suzhou Kejia |
Touch screen | Taiwan Weinview(Imported) |
PLC | Japan Mitsubishi(Imported) |
Servo Motor | Japan Mitsubishi(Imported) |
Angle controller | Japan Nemicon(Imported) |
Switch power | Wenzhou Changxing |
Contactor | German SCHNEIDER(Imported) |
Other Electric Parts | German SCHNEIDER,Omron, Taiwan SHILIN(Imported) |
