Cutting & Fold-bend Machine

Tunnel Bulding Hydraulic H Beam Bending Machine for Sale

Henan Yugong Machinery Co., Ltd.
  • Waterproof Rating:None
  • Warranty:2-year
  • Condition:New
  • Certification:RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL, SGS
  • Automation:Semi-Automatic
  • Suitable for:Carbon Steel, Stainless Steel, H Beam, I Beam

Base Info

  • Model NO.:WGJ-250
  • Type:Beading Machine
  • Name:Hydraulic Bending Machine
  • Minimum Bending Radius:1.8m
  • Raw Material:I -Beam,H -Beam,U Type Steel Bar
  • Cylinder Propulsion Speed:5.5mm,S
  • Working Pressure:25MPa
  • Roller Rotation Speed:7r,Min
  • Total Power:8.4kw
  • Transport Package:20-Foot Container
  • Specification:2.5mx1.5mx1.2m
  • Trademark:YG,OEM
  • Origin:China
  • HS Code:8401200000
  • Production Capacity:500sets,Month

Description

ModelSWGJ250WGJ250Material specification14-25 I beam 14-25 I beam Cylinder propulsion speed3-3.5mm/s8-15mm/sRoller rotation speed7r/min/Hydraulic system power highest pressure25mpa25mpaTotal power8.4KW11KWCylinder power4KW/Main Drive wheel motor2.2KW*2/Minimum bending radius2m1.8m Dimension2760*1639*1360mm1800*1500*1500mm Weight 1500kg1500kgAbout Us

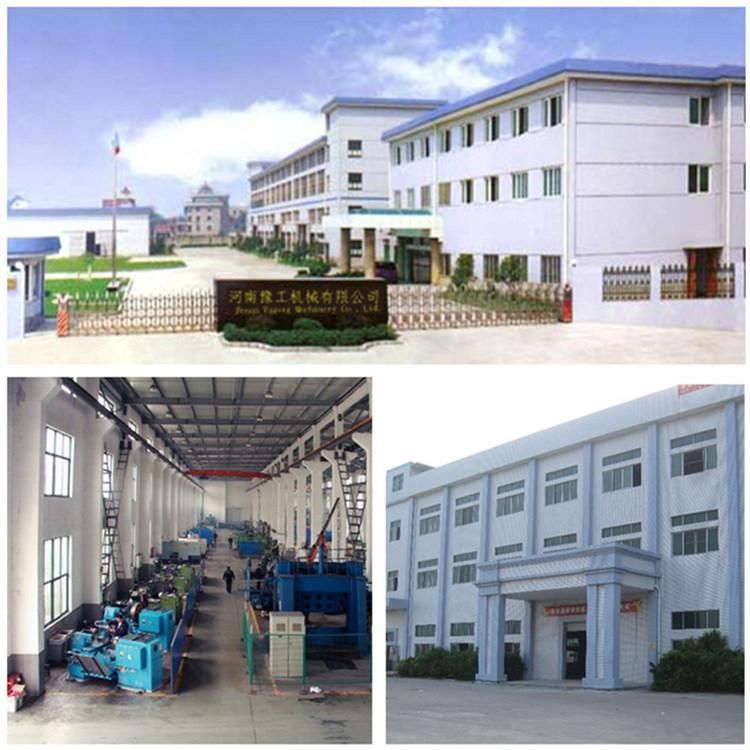

Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on.

We believes that good quality can give us survival, thus we only provide you top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.

All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery.
Tunnel Bulding Hydraulic H Beam Bending Machine for Sale
