High Quality Automatic Pipe Bender GM-76ncba

Zhangjiagang King-Macc Machinery Manufacturing Co., Ltd.
  • Waterproof Rating：IPX-8
  • Warranty：2-year
  • Condition：New
  • Certification：RoHS, ISO 9001:2000, CE, UL
  • Automation：Semi-Automatic
  • Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

Base Info

  • Model NO.：GM-76NCBA
  • Type：Pipe and Tube Bending Machine
  • Certificate：ISO9001: 2000
  • Applicable Material：S. S, M. S., Copper, Aluminium, Alloy, Galvanized
  • Applicable Shape：Round, Rectangle, Square, Oval, Solid Bar, Profile
  • Bending Drive：Hydraulic
  • Technical：Cold Bend
  • Transport Package：Iron Frame,Wooden Case
  • Specification：CE
  • Trademark：GMACC
  • Origin：China
  • HS Code：8462219000
  • Production Capacity：5000PCS,Year

Description

Basic Info.

Model NO. GM-76NCBA Type Pipe and Tube Bending Machine Certificate ISO9001: 2000 Applicable Material S. S, M. S., Copper, Aluminium, Alloy, Galvanized Applicable Shape Round, Rectangle, Square, Oval, Solid Bar, Profile Bending Drive Hydraulic Technical Cold Bend Transport Package Iron Frame/Wooden Case Specification CE Trademark GMACC Origin China HS Code 8462219000 Production Capacity 5000PCS/Year

Product Description

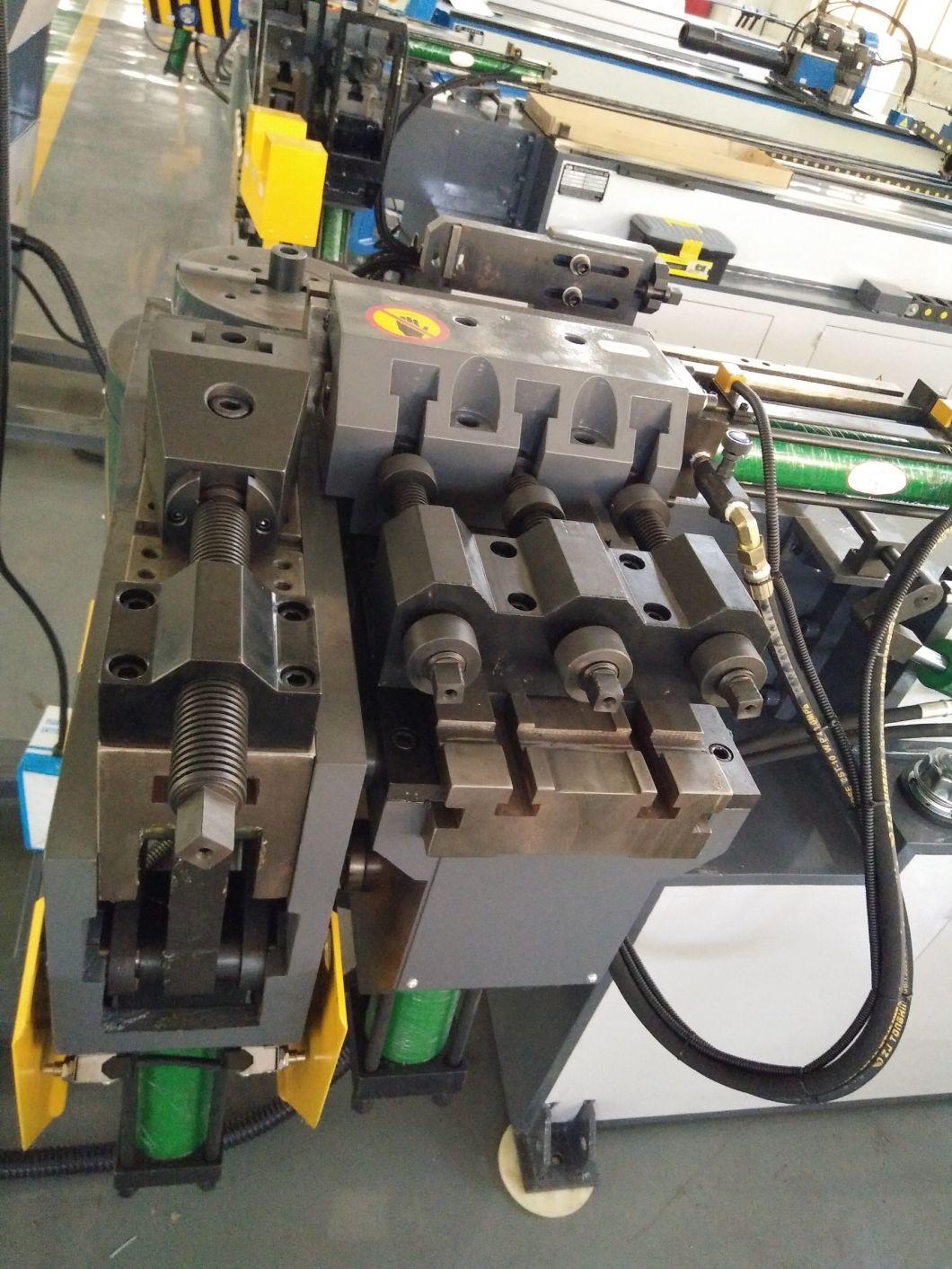

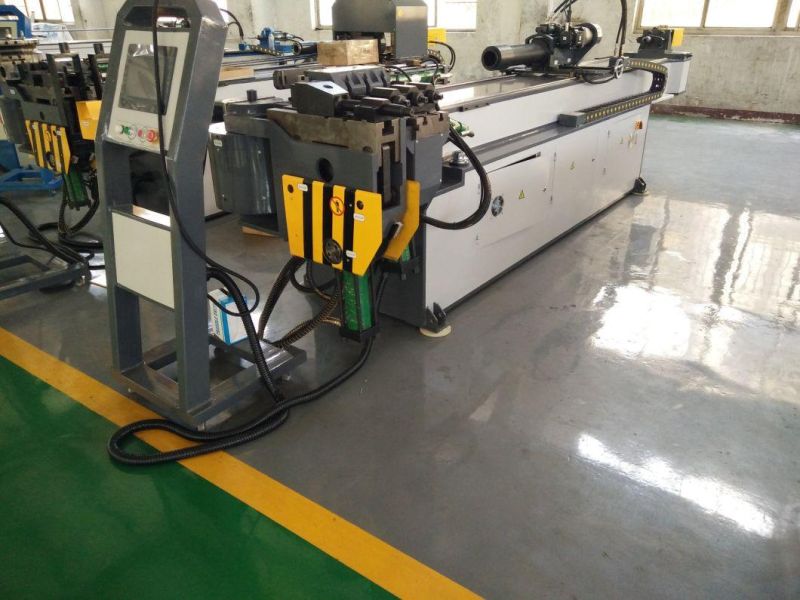

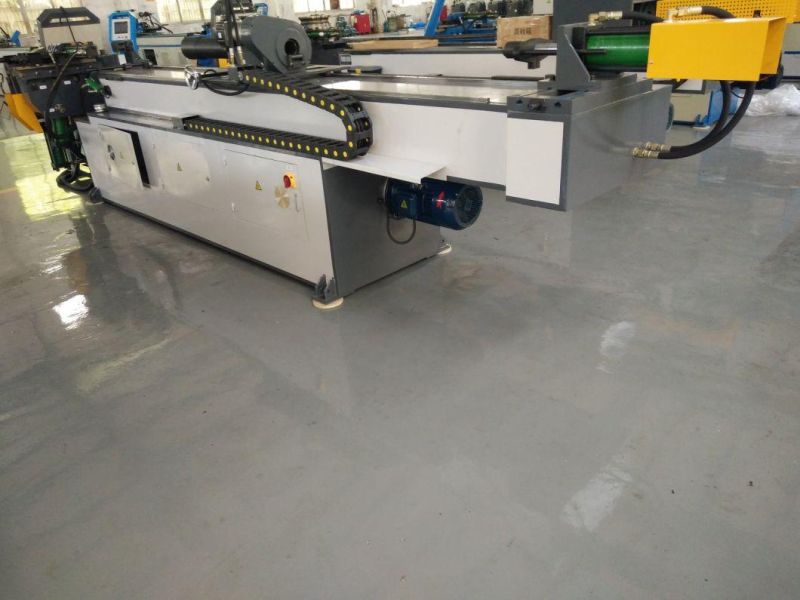

 GM-SB-76NCBA Automatic Three Dimensional
Pipe Bending Machine
1.  Machine Characteristics
   GM-SB-76NCBA series single-head bending machine, importing advanced design technology from Italy, is a kind of automatic three-dimensional pipe bending machine, integrated with machine, hydraulic, and electricity. Various data and orders can be input and stored in advanced imported touch screen, which can automatically rotate the angle in three dimension continuously, besides, manual material feeding meets the requirement for processing precision of complicated work pieces all make NCBA series a professional and high speed European pipe bending equipment. It has the automatic rotation function.
2.  Main Technical Parameter
NameUnit Parameter
Max bendingmm¢76*5
Bending radiusmm30-350
Max. Bending radius(Standard)mm350
Max. Bending Angle°190°
Though Effective Distancemm3000
Bending angle Precision°±0.10
Rotation angle Precision - axis Z°±0.10
System Motor PowerKW7.5
Max. PressureMpa16
L*W*H (Packaging Dimension)mm4200*1200*1350
Machine WeightT3.5
  • Configuration of Hydraulic and Electronic Control System
NameManufacturer
Hydraulic MotorSuzhou Runmali
Hydraulic PumpWuxi Tuoli
Hydraulic ValveJapan Yuken(Imported)
CylinderShanghai Qifan
Oil tubeSuzhou Kejia
Touch screenTaiwan Weinview(Imported)
PLCJapan Mitsubishi(Imported)
Servo MotorJapan Mitsubishi(Imported)
Angle controllerJapan Nemicon(Imported)
Switch powerWenzhou Changxing
ContactorGerman SCHNEIDER(Imported)
High Quality Automatic Pipe Bender GM-76ncba
High Quality Automatic Pipe Bender GM-76ncba
High Quality Automatic Pipe Bender GM-76ncba

High Quality Automatic Pipe Bender GM-76ncba
High Quality Automatic Pipe Bender GM-76ncba
High Quality Automatic Pipe Bender GM-76ncba
High Quality Automatic Pipe Bender GM-76ncba
High Quality Automatic Pipe Bender GM-76ncba

contact person:Ms Georgina Huang

Mob:008613606222268
