• Model NO.：WE67K-250X4000
• Working force：250 T
• Length of table：4000 mm
• distance between frames：3100 mm
• Transport Package：Steel Pallet
• Specification：Total 250t, 4000mm
• Trademark：HAVEN
• Origin：China
• HS Code：8459
• Production Capacity：30 Units,Month

Basic Info.

Model NO. WE67K-250X4000 Working force 250 T Length of table 4000 mm distance between frames 3100 mm Transport Package Steel Pallet Specification Total 250t, 4000mm Trademark HAVEN Origin China HS Code 8459 Production Capacity 30 Units/Month

Product Description

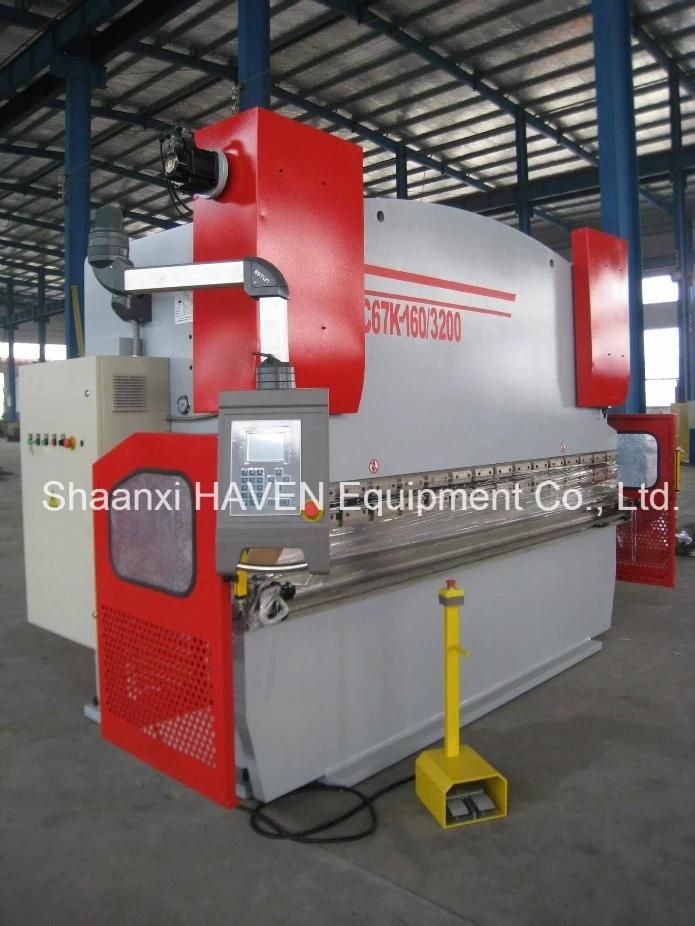

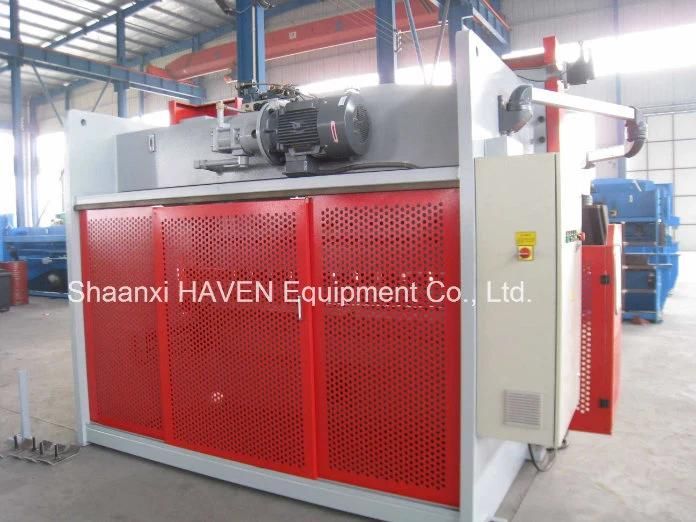

CNC Hydraulic Press Brake machine steel plate Bending Machine

1. Equipped with DELEM CNC system made in Holland and other key parts such as
Linear scale, hydraulic valve, servo motor are all importing products.
2. There are two linear scales installed on "C" plates on both sides, which is fixed on worktable to eliminate the effect ion of deflection when working. The linear scale will inspect the both end positions of RAM (Y1, Y2) and send signal. After amplified by CNC amplifier, the signal will be fed back to computer. Then the computer will control the volume of oil, which is going to enter into cylinders. So the parallelism of RAM and worktable could be controlled under ± 0.01mm.
3. DELEM system has automatic testing and self-diagnosis functions. Also, Programming is simply composed of putting in sizes of plate to bend, dimensions of work piece and choosing tools. Then CNC system could calculate the bending force and position of back gauge and RAM automatically. Also the RAM penetrating and pressing time relay could be calculated.
4. Good quality electro-hydraulic proportional valve is adopted to ensure the synchronization of both cylinders as well good capacity to deal eccentric load.
5. The stroke of RAM and back gauge are all controlled by CNC system with good precision.
6. Main sliding parts such as cylinders, piston rod, guide way, are all treated with wear-resistance.
7. Back gauge adopts rolling ball screw and rolling guide way, so the repeat positioning precision of X axis could reach ± 0.1mm.

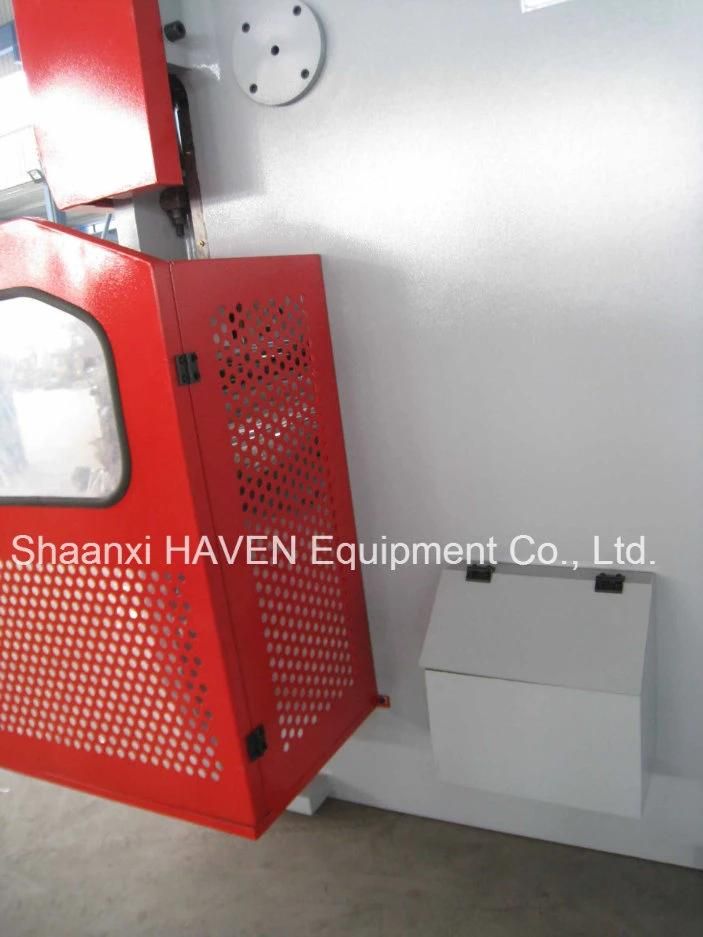

8. Full machine is guarded with safety guard and interlocker to protect the operator
From injured.

Main specification:

Type	Hydraulic CNC electro-hydraulic synchro
Working force	250 T
Length of table	4000 mm
distance between frames	3100 mm
Throat depth	400 mm
Open height	560 mm
Stroke/Strocks	250 mm / 3 min -1
Main motor	15 kw
CNC system	Type: DELEM DA56 Delem Co., Netherlands 4 Axis(Y1,Y2,X,R) +Automatic mechanic compensation system
Tool	With 1 punching and 1 bottom die
Main Electric Elements in cabinet	Schneider or Siemens
Seal in the cylinders	NOK, made in Japan
Gross weight	15500 kg
Packing size(mm) LxWxH	4300x2200x3170
Packing:	With plastic cover Transportation: 20' OT x 1
