• Model NO.：WE67K-200X4000
• CNC Type：Tander Press
• Working force：200t
• Length of table：4000mm
• distance between frames：3100mm
• Transport Package：Steel Pallet
• Specification：Total 200t, 4000mm
• Trademark：HAVEN
• Origin：China
• HS Code：8459
• Production Capacity：30 Units,Month

Basic Info.

Model NO. WE67K-200X4000 CNC Type Tander Press Working force 200t Length of table 4000mm distance between frames 3100mm Transport Package Steel Pallet Specification Total 200t, 4000mm Trademark HAVEN Origin China HS Code 8459 Production Capacity 30 Units/Month

Product Description

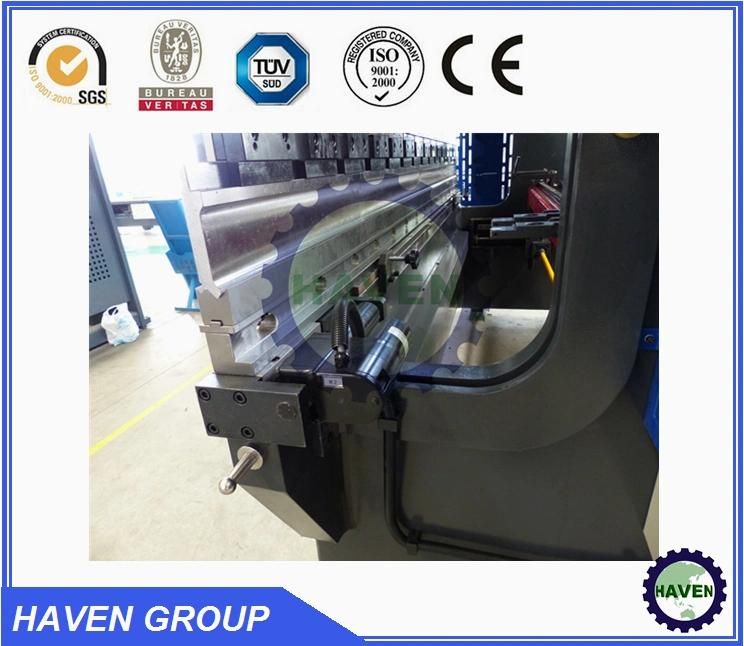

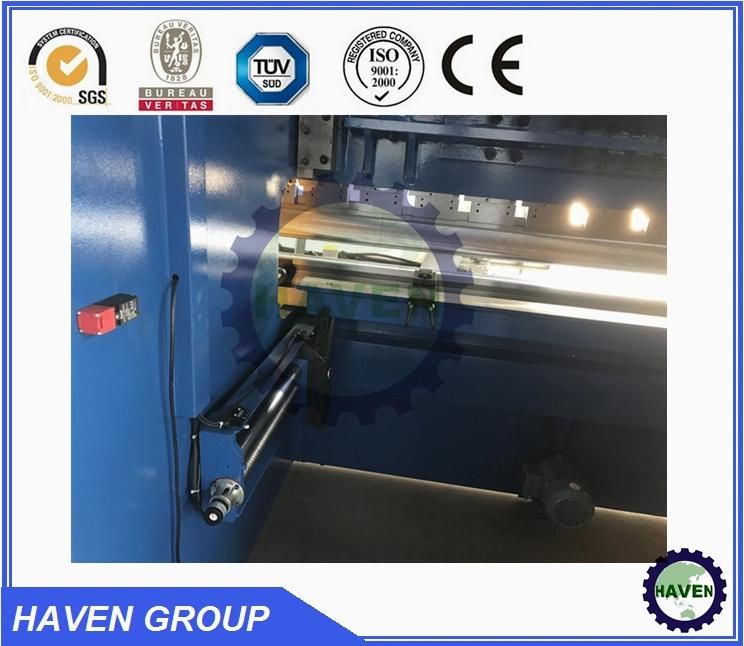

200t CNC Hydraulic Press Brake Machine



Standard Facilities:
1. ESTUN E21 NC control + Frequency inverter
 2.Front support arms
3. Motorized stroke adjustment
4. T slot on both front side and back side of the worktable
5.  OMAGE Hydraulic valve
6.  SUNNY hydraulic pump
7.  Siemens famous brand motor
8.  Siemens or Schneider Electric parts
9.  Machine power is turn-off when the electric cabinet door opened
10. Upper clamps with Anti Wedges
11. Hydraulic and Electrical overload protection
12. Side safety guard and Full height back safety guard
13. With standard Top punch and Bottom Die
14. Back gauge beam is made of profile steel and liner guide
15. Back gauge is supported with ball screw and polished steel round bar with 0,05mm accuracy
2. Estun E21 NC Press Brake Control system:
1. Monochrome LCD Box Panel.
2. Integral factor programmable freely
3. Automatic positioning control
5.Internal time relay
6.Ram stroke counter
3. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement
4. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
5. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
6. Main features
1. The whole machine is in sheet plate welded structure, which internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.
2. Double hydraulic oil cylinder is applied for upper transmission, provided with mechanical limit stopper and synchronous torsion bar, stable and reliable operation, as well as high precision.
3. Electrical adjustment and manual fine-tuning adjustment mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital display device, easy and quick in use.
4. Upper clamp is fitted with compensation device.
5. Worktable mechanical compensation or hydraulic compensation device is optional.


Type	Hydraulic CNC electro-hydraulic synchro
Working force	200 T
Length of table	4000 mm
distance between frames	3100 mm
Throat depth	320 mm
Open height	560 mm
Stroke	200mm
Speed	Fast down speed: 80mm/s Working speed: 8mm/s Return speed: 80mm/s
Main motor	30 kw
CNC system	Type: DELEM DA56 Delem Co., Netherlands 3 Axis(Y1,Y2,X)+automatic compensation system
Tool	With 1 punching and 1 bottom die The bottom with manual type compensation system
Main Electric Elements in cabinet	Schneider
Seal in the cylinders	NOK, made in Japan
Hydraulic components	BOSCH , Germany
Linear Raster displayer sensor	HEIDENHAIN, GERMANY
Gross weight	14500 kg
Overall sizes(mm) LxWxH	4400x2200x3200
Packing:	With plastic cover Transportation: 1x20' OT CONTAINER
