• Model NO.：WE67K-200x3200
• Type：Press Brake
• Synchro Press Brake：CNC Press
• Type for Fold-bending Machine：Hydraulic Fold-bend Machine
• Nomal Pressure (Kn)：2000KN
• Length of Table (mm)：3200mm
• Transport Package：Steel Pallet
• Specification：CE standard
• Trademark：HAVEN
• Origin：China
• HS Code：8466
• Production Capacity：50 Units,Month

Basic Info.

Model NO. WE67K-200x3200 Type Press Brake Synchro Press Brake CNC Press Type for Fold-bending Machine Hydraulic Fold-bend Machine Nomal Pressure (Kn) 2000KN Length of Table (mm) 3200mm Transport Package Steel Pallet Specification CE standard Trademark HAVEN Origin China HS Code 8466 Production Capacity 50 Units/Month

Product Description

Hydraulic Press Brake Machine Plate Bending Machine WE67K/200X3200





CNC Synchro Press Brake WE67K
Descriptions of CNC Synchro Press Brake:
Hydraulic system:
-A complete electrolyte servo synchro CNC (Computer Numerical Control) controlled press brake.
-Adopt Bosch electrolyte servo system (from Germany)

Mechanical system:
- Two light rulers are installed at the two ends of the slide, making the slide movement be parallel to the working table
- Adopt the working table compensation structure.

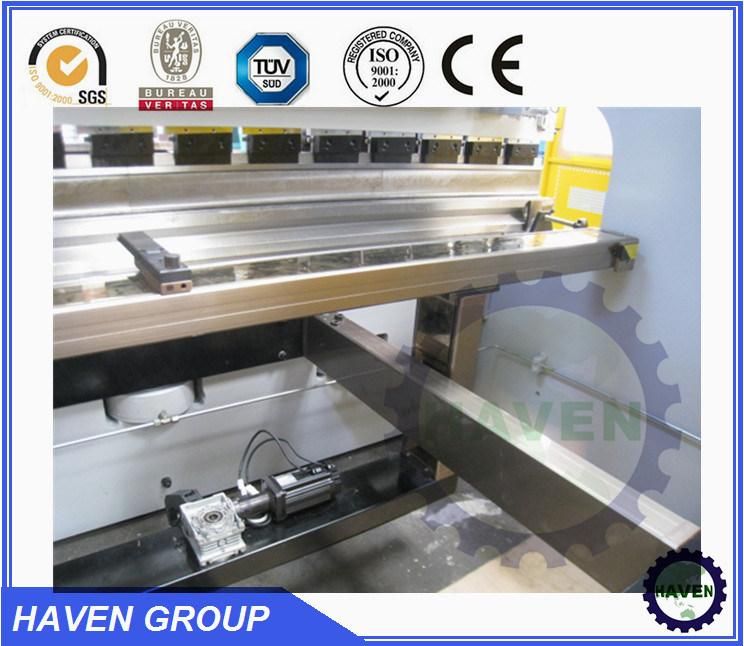

- The CNC servo motor of the back gauge gives a high positioning accuracy.

CNC system:

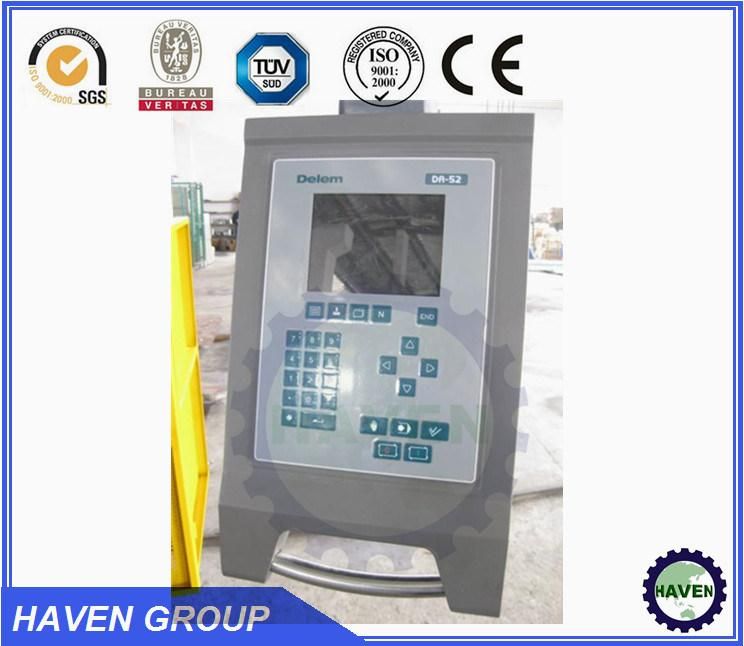

- The DA65W computer imported from Holand Delem Co.
- Automatically calculate the working time and quantities of press brake actions.
- For single step operation, the user only needs to input the relevant data into the system, and then the system will check out the pressure needed for press brake and get every thing in order.
- When making several steps press brake actions on the parts, the user just needs to input the intended dimensions into the system, and then the system can make continuous press brake actions according to the requirements.
- Can store 25 press brake procedures.
- Give alarm signals on incorrect operations
- Automatically control the following datum: Pressure discharge time, pressure keeping time, press brake pressure, press brake angle, the opening height of slide and etc.

Synchro control system:

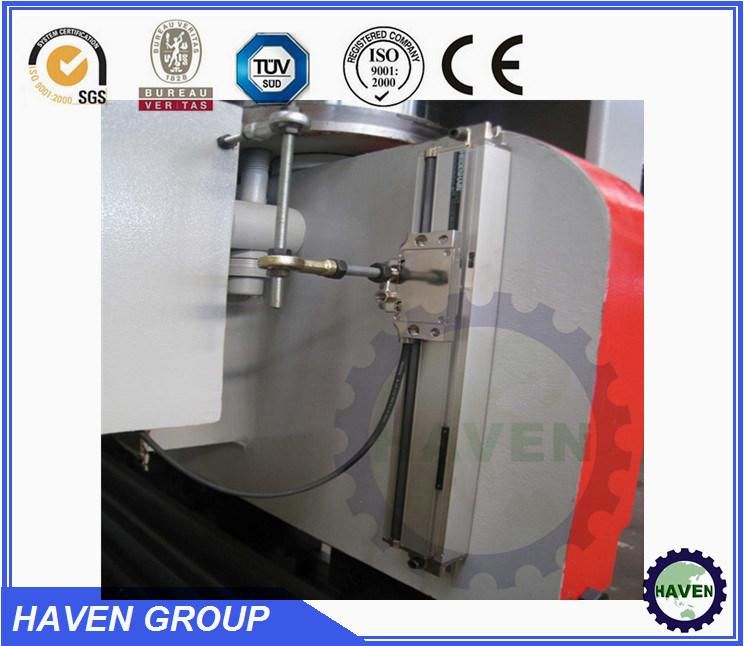

-Two light rulers (Y1-Y2) have been installed at the two sides of the machine to measure the exact distances.
-The position data will be delivered to the CNC system and then it can check out the servo valve control signal (S2-S2).

Transmission system:
- High-precision ball screw and linear guide-way
- Panasonic HINAS A4 series; AC servo motor and drive;

Compensation System:
-WILA deflection compensation;
-Automatic worktable compensation for wear and tear of the bed
The deviation resistance ability of the machine tool:
-The electrolyte servo system of this forging machine is an inner closing ring control system, which can check out the synchro discrepancies of the slide by the movement of the light ruler.
-The electrolyte servo valve can correct the slide discrepancies, making the slide parallel to the working table.

Main specification:


Models	Nomal Pressure (Kn)	Length of Table (mm)	Distance Between Housing (mm)	Throat Depth (mm)	Stroke (mm)	Open Hight (mm)	Main Motor (Kw)	Weight (t)	Overall Dimensions (L × W × H) (mm)
WE67K-63/2500	630	2500	2000	320	150	380	5.5	5	2875× 1650× 2350
WE67K-63/3200	630	3200	2700	320	150	380	5.5	5.5	3800× 1650× 2450
WE67K-100/3200	1000	3200	2700	400	180	440	7.5	7.5	3810× 1750× 2530
WE67K 125/3200	1250	3200	2700	400	180	440	7.5	8.2	3820× 1800× 2530
WE67K-125/4000	1250	4000	3200	400	180	440	7.5	9	4600× 1800× 2580
WE67K 160/3200	1600	3200	2700	400	180	450	11	10.8	3830× 1870× 2560
WE67K 160/4000	1600	4000	3200	400	180	450	11	11.5	4610× 1920× 2700
WE67K-200/3200	2000	3200	2700	400	180	450	11	12.5	3900× 1920× 2560
WE67K-200/4000	2000	4000	3200	400	180	450	11	13.8	4620× 1950× 2700
WE67K-200/6000	2000	6000	4800	400	180	480	11	18.5	6080× 1950× 2900
WE67K-250/3200	2500	3200	2700	400	200	480	15	15	3900× 2150× 2950
WE67K-250/4000	2500	4000	3200	400	200	480	15	16.5	4080× 2150× 3000
WE67K-250/5000	2500	5000	4000	400	250	560	15	17.5	5080× 2200× 3250
WE67K-250/6000	2500	6000	4800	400	250	560	15	20	6080× 2200× 3400
WE67K-300/4000	3000	4000	3200	400	250	560	22	19	4080× 2200× 3200
WE67K-300/5000	3000	5000	4000	400	250	560	22	21	5100× 2200× 3300
WE67K-300/6000	3000	6000	4800	400	250	560	22	24	6200× 2200× 3500
WE67K-400/4000	4000	4000	3200	400	320	630	30	25	4100× 2400× 3500
WE67K-400/5000	4000	5000	4000	500	320	630	30	28	5200× 2600× 3700
WE67K-400/6000	4000	6000	4800	500	320	630	30	38	6200× 2650× 4800
WE67K-500/4000	5000	4000	3200	600	320	630	37	40	4200× 2800× 4600
WE67K-500/5000	5000	5000	4000	600	320	630	37	45	5200× 2800× 4900
WE67K-500/6000	5000	6000	4800	600	320	630	37	50	6200× 2800× 5200
WE67K-600/5000	6000	5000	4000	600	320	630	45	58	5200× 3000× 5300
WE67K-600/6000	6000	6000	4800	600	320	630	45	63	6200× 3000× 5600
WE67K-800/5000	8000	5000	4000	700	350	800	55	75	5200× 3500× 5600
WE67K-800/6000	8000	6000	4800	700	350	800	55	85	6200× 3500× 5800
WE67K-1000/6000	10000	5000	4800	700	400	800	55	105	6200× 4100× 6900
