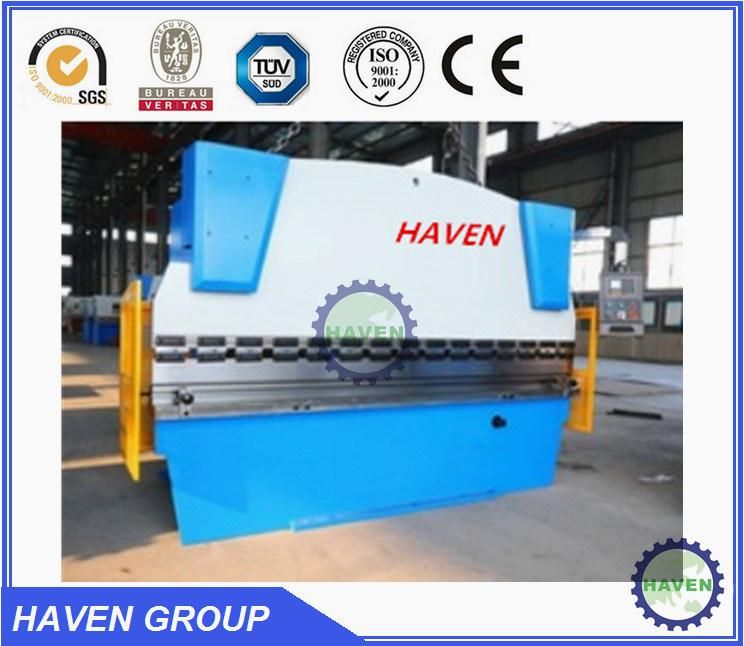

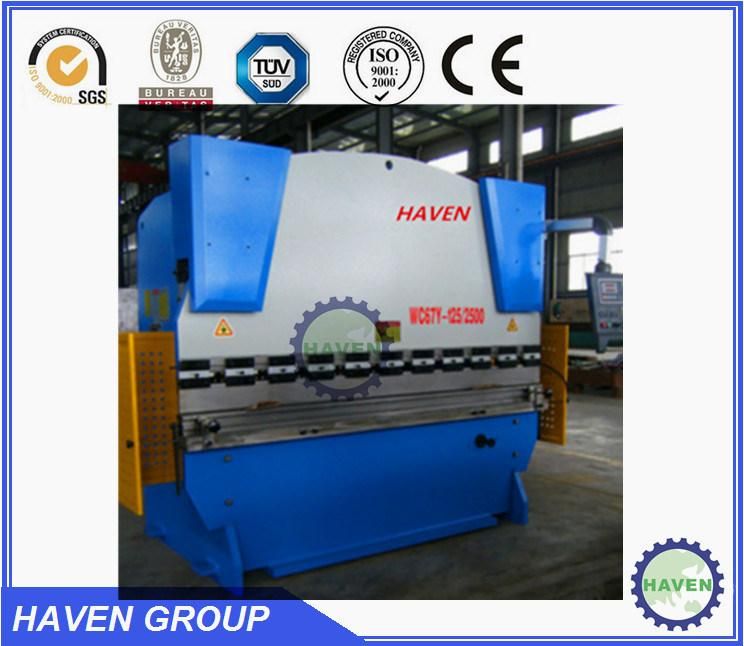

CNC Hydraulic Folding Press Brake Machine (WE67K-80X2500)

Shaanxi HAVEN Equipment Co., Ltd.
  • Warranty：1-year
  • Condition：New
  • Certification：ISO 9001:2000, CE
  • Automation：Semi-Automatic
  • Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
  • Type：Hydraulic Bending Machine

Base Info

  • Model NO.：WE67K-80X2500
  • Working force：800kn
  • Working table dimension：2500mm
  • Distance between frames：2050mm
  • hroat depth：250mm
  • Transport Package：Steel Pallet
  • Specification：Total 80t, 2500mm
  • Trademark：HAVEN
  • Origin：China
  • HS Code：8459
  • Production Capacity：30 Units,Month

Description

TypeHydraulic CNC electro-hydraulic synchroWorking force80 TWorking table dimension2500 mm x 150mm (L x W)Distance between frames2050 mmThroat depth250 mmOpen height420 mmStroke200mmRam speedFast approach110 mm /sWorking9 mm /sReturn110 mm /sWorking table height800 mmBack gauge stroke600 mmMain motor11kwCNC systemType: DA-52
3 Axis(Y1,Y2,X)+(V) Automatic hydraulic compensation systemCompensationAutomatic hydraulic typeToolWith 1 punching and 1 bottom dieMain Electric Elements in cabinetSchneider or SiemensSeal in the cylindersNOKHydraulic componentsBOSCH , GermanyLinear Raster displayer sensorHEIDENHAIN, GERMANYOil tank capacity (working/full)260 L/ 330 LNet weight5600 kgGross weight6000kgOverall size(mm) LxWxH2780x1725x2550Packing:With plastic covers
