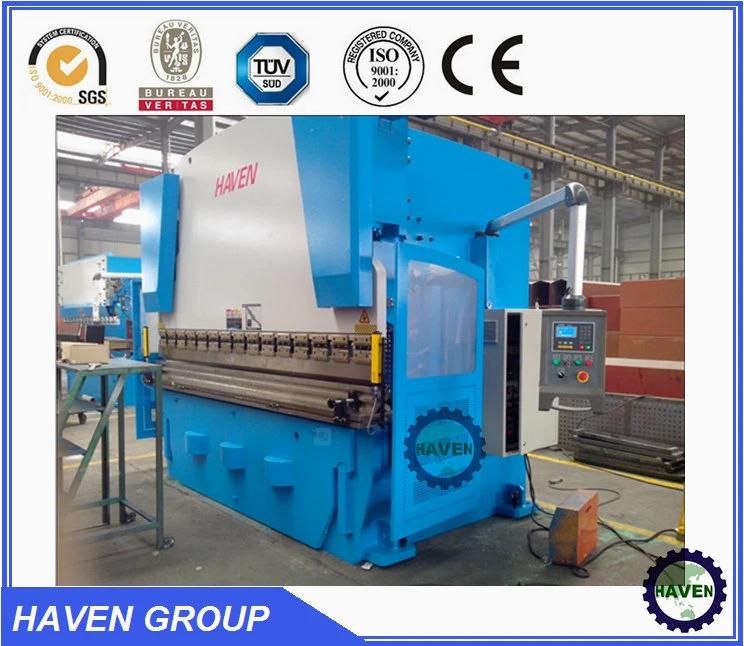

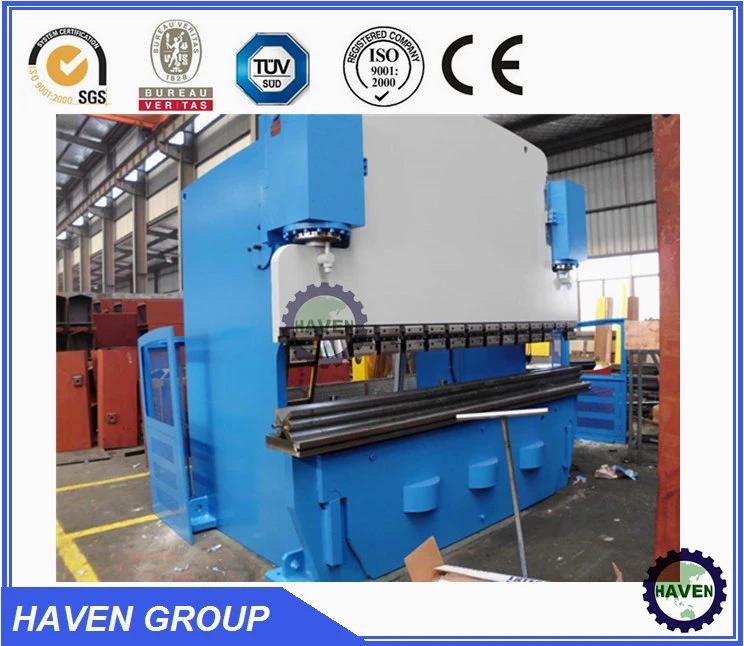

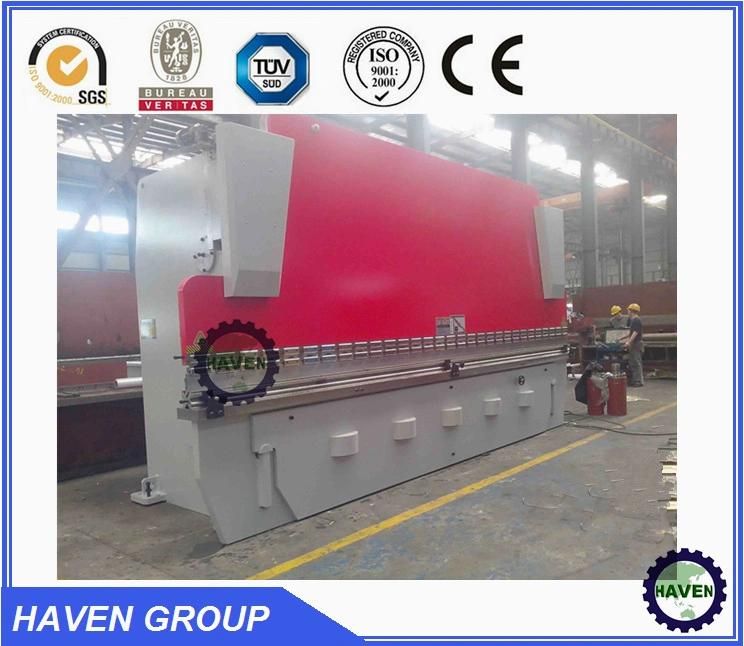

400t Hydraulic CNC Bending Machine
Shaanxi HAVEN Equipment Co., Ltd.- Waterproof Rating：IPX-3
- Warranty：1-year
- Condition：New
- Certification：ISO 9001:2000, CE
- Automation：Semi-Automatic
- Suitable for：Rubber, Copper, Aluminum, Carbon Steel, Stainless Steel
Base Info
- Model NO.：2-WE67K-400X6000
- Type：Cnc Bending Machine
- CNC Type：Tander Prss
- Working force：2X400Ton
- Length of table：2X6000mm
- distance between frames：4800mm
- Transport Package：Steel Pallet
- Specification：Total 8000t, 12000mm
- Trademark：HAVEN
- Origin：China
- HS Code：8459
- Production Capacity：30 Units,Month
Description
TypeMult-machine Tandem Hydraulic CNC electro-hydraulic synchro Working force 2X400Ton Length of table 2X6000mm distance between frames 4800mm Throat depth 800mm Open height 6000mm Stroke 320mm Working
Speed Unload 70mm /s Working 7mm /s Return 60mm /s Main motor 2x37kw CNC system Type: DELEM DA52
Delem Co., Netherlands
2 axis(Y1,Y2)
+Automatic crowning system Tool With 1 punching and 1 multi V block bottom die for making octagonal taper type pole.
With front and back sheet supporting stand Seal in the cylinders NOK, made in Japan Hydraulic components BOSCH-Rexroth - , Germany Hydraulic pump Nitch , Japan, or BOSCH , Germany, Linear Raster displayer sensor HEIDENHAIN, GERMANY Main Electric Elements in cabinet Schneider Gross weight 2x 52000kg(net 48000kg) Overall size(mm) LxWxH 2x6250x4170x5600 Packing: With plastic cover
The machine should be disassembled during transportation. Our engineer should go to customer to assemble and adjust it.
Transportation:
Speed
Delem Co., Netherlands
2 axis(Y1,Y2)
+Automatic crowning system
With front and back sheet supporting stand
The machine should be disassembled during transportation. Our engineer should go to customer to assemble and adjust it.
Transportation:
