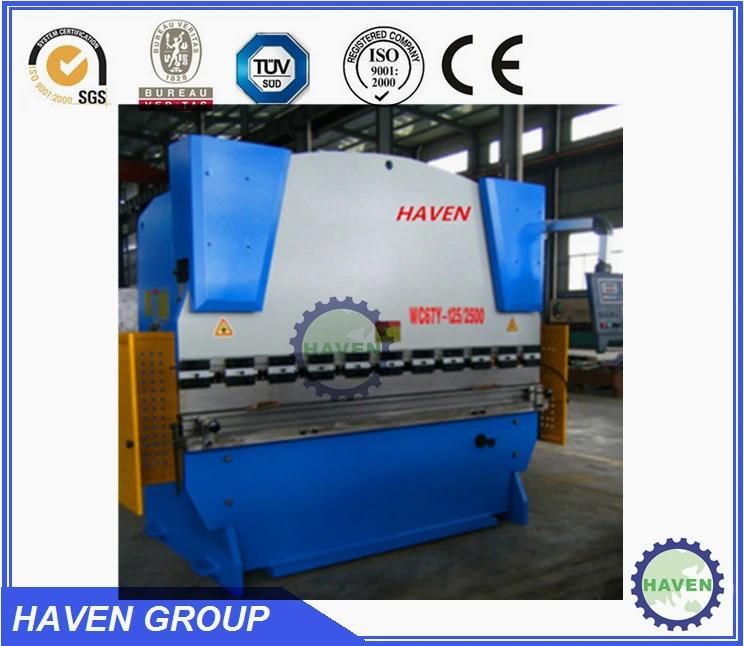

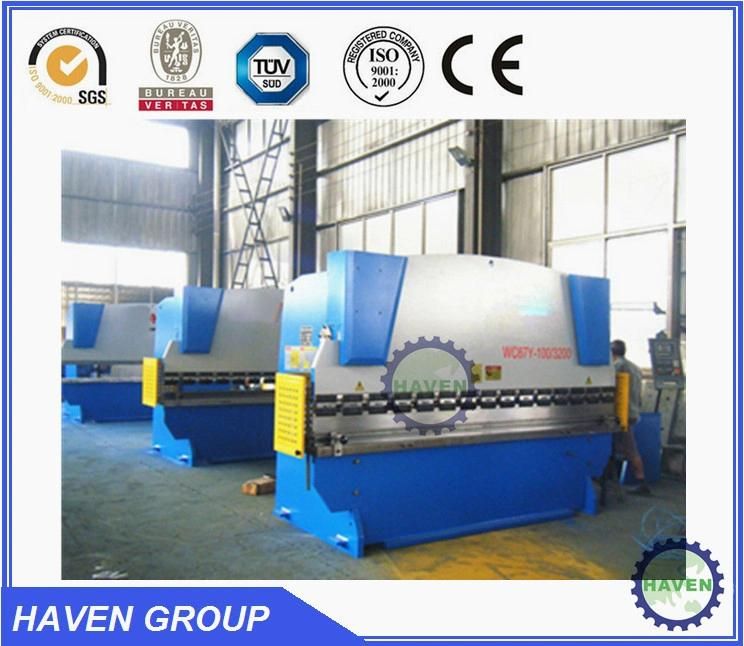

CNC Hydraulic Press Brake machine
Shaanxi HAVEN Equipment Co., Ltd.- Waterproof Rating：IPX-1
- Warranty：1-year
- Condition：New
- Certification：ISO 9001:2000, CE
- Automation：Semi-Automatic
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.：WE67K-63X2500
- Type：Hydraulic Bending Machine
- Working force：630KN
- Working table dimension：2500mm
- Distance between frames：2050mm
- Throat depth：250 mm
- Transport Package：Steel Pallet
- Specification：Total 63t, 2500mm
- Trademark：HAVEN
- Origin：China
- HS Code：8459
- Production Capacity：30 Units,Month
Description
TypeHydraulic CNC electro-hydraulic synchro Working force 63 T Working table dimension 2500 mm x 150mm (L x W) Distance between frames 2050 mm Throat depth 250 mm Open height 420 mm Stroke 200mm Ram speed Fast approach 110 mm /s Working 9 mm /s Return 110 mm /s Working table height 800 mm Back gauge stroke 600 mm Main motor 7.5kw CNC system Type: DA-52
3 Axis(Y1,Y2,X)+(V) Automatic hydraulic compensation system Compensation Automatic hydraulic type Tool With 1 punching and 1 bottom die Main Electric Elements in cabinet Schneider or Siemens Seal in the cylinders NOK Hydraulic components BOSCH , Germany Linear Raster displayer sensor HEIDENHAIN, GERMANY Oil tank capacity (working/full) 260 L/ 330 L Net weight 5200 kg Gross weight 5400 kg Overall size(mm) LxWxH 2780x1725x2550 Packing: With plastic covers
3 Axis(Y1,Y2,X)+(V) Automatic hydraulic compensation system
