• Model NO.：GT-WB-60-5A
• Type：Cnc Bending Machine
• Name：3D CNC Metal Wire Bending Machine China
• Machine Type：Coiling Bending Machine
• Raw Material：Steel Bar
• Power：CNC
• Voltage：220V,380V,415V,440V,Customized
• Material / Metal Processed：Stainless Steel
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Application：Stainless Plate Bending
• Material：Steel Bar
• Extra Services：End Forming
• Color：Customized
• Transport Package：Standard Fumigated Wooden Case
• Trademark：WG-XINSHENG
• Origin：Guangdong, China (Mainland)
• HS Code：8462219000
• Production Capacity：2 Set Per Month

Basic Info.

Model NO. GT-WB-60-5A Type Cnc Bending Machine Name 3D CNC Metal Wire Bending Machine China Machine Type Coiling Bending Machine Raw Material Steel Bar Power CNC Voltage 220V/380V/415V/440V/Customized Material / Metal Processed Stainless Steel After-Sales Service Provided Engineers Available to Service Machinery Overseas Application Stainless Plate Bending Material Steel Bar Extra Services End Forming Color Customized Transport Package Standard Fumigated Wooden Case Trademark WG-XINSHENG Origin Guangdong, China (Mainland) HS Code 8462219000 Production Capacity 2 Set Per Month

Product Description

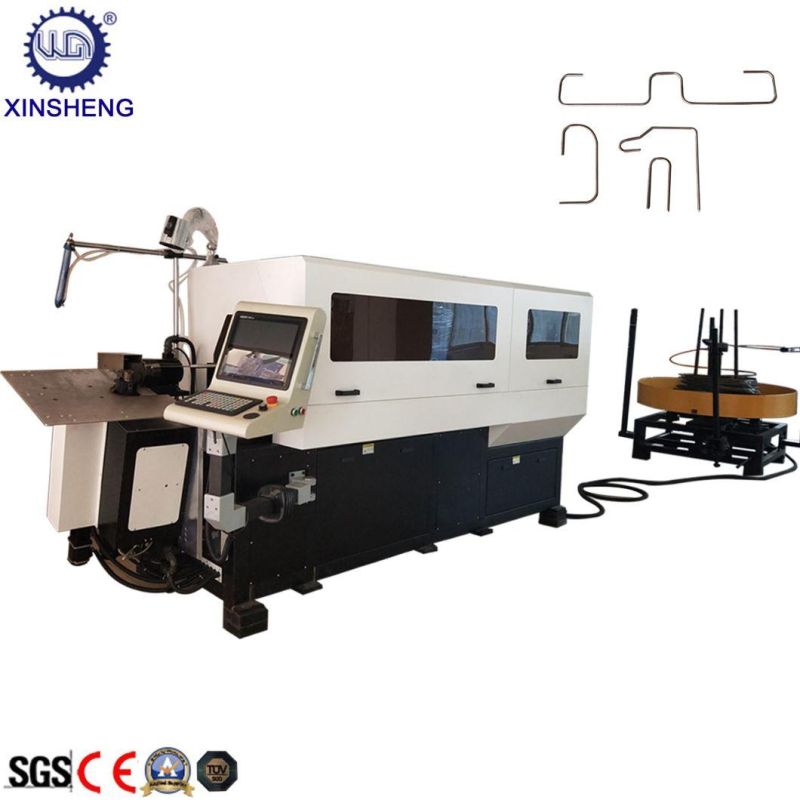

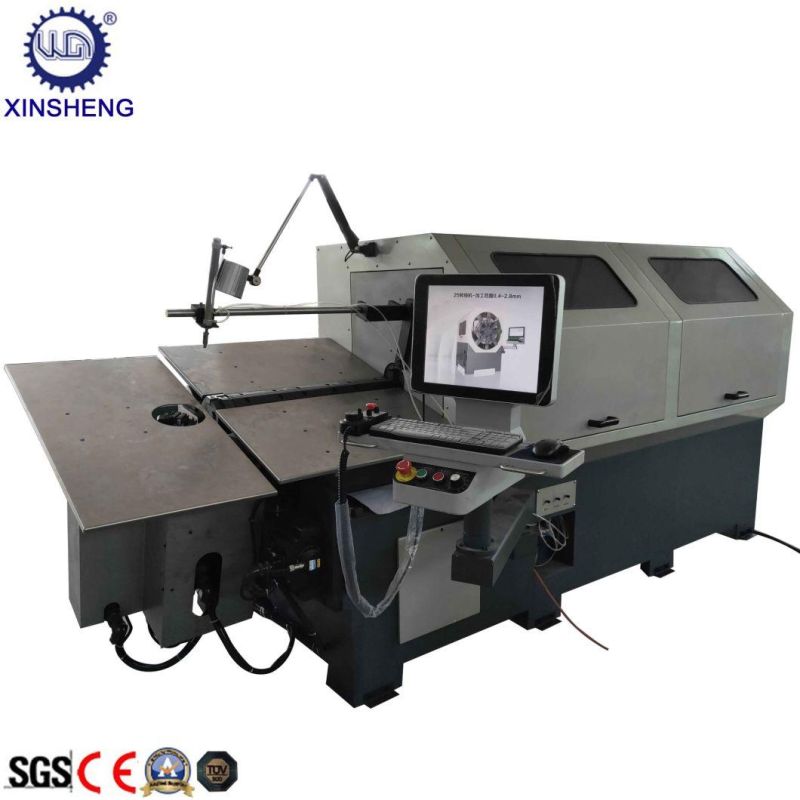

Cnc wire bending machine is to expertly produce kinds of wire forms in 2D/3D fully automatically.
It is suitable for wire size from 2.0mm up to 6.0mm.

Technical parameter:

wire diameter	600N/mm2   2.0mm-6.0mm 1900N/mm2  2.0mm-4.0mm
feed roller	3 pairs
twisting wire angel	0°- unlimited
platform lifting height	+50mm-170mm
twisting head lifting height	+20mm-100mm
out twisting lifting height	+20mm-55mm
left to right moving range	Left:80mm   Right:40mm
Feeding front and back moving range	Front:300mm  Back:300mm
CNC axis	10
Machine size	3.0M(L)*1.2M(W)*1.4M(H)
Weight	3200kg
