• Model NO.：GT-SF-35W
• Type：Coiling Bending Machine
• Speed：0-100 PCS,Min
• Weight：1200kg
• Machine Type：CNC
• Max. Outer Dia.：50mm
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Feeding Length：Unlimited
• Width：1.0-4.0mm
• Axes：3(4)
• Transport Package：Standard Fumigated Wooden Case
• Trademark：XINSHENG
• Origin：Guangdong, China (Mainland)
• HS Code：8463300000
• Production Capacity：10 Set Per Month

Basic Info.

Model NO. GT-SF-35W Type Coiling Bending Machine Speed 0-100 PCS/Min Weight 1200kg Machine Type CNC Max. Outer Dia. 50mm After-Sales Service Provided Engineers Available to Service Machinery Overseas Feeding Length Unlimited Width 1.0-4.0mm Axes 3(4) Transport Package Standard Fumigated Wooden Case Trademark XINSHENG Origin Guangdong, China (Mainland) HS Code 8463300000 Production Capacity 10 Set Per Month

Product Description

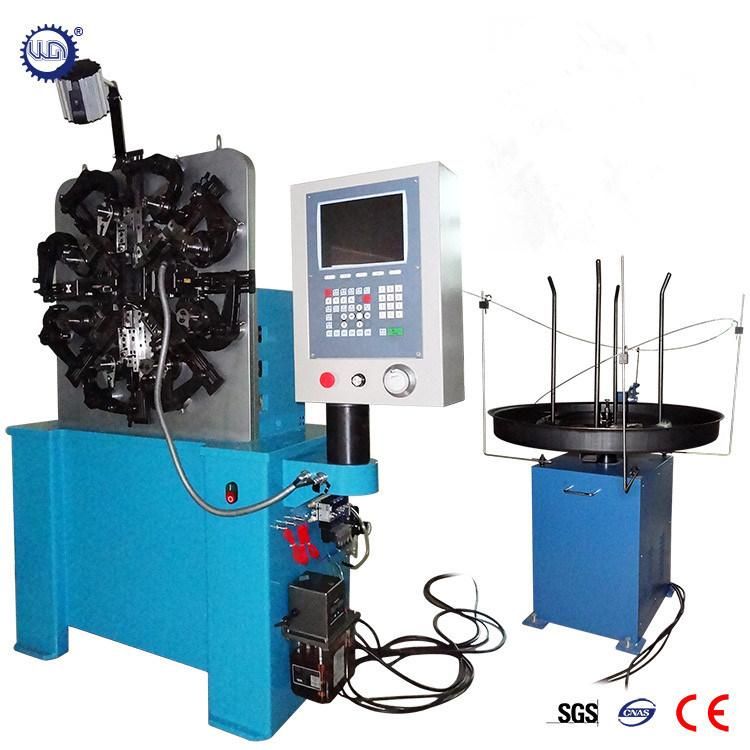

3-4 Axes Automatic CNC Automobiles Spring Forming Machine



Product Description


 Fast Speed CNC Spring forming Machinery is to produce kinds of springs expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with Taiwan controller. It can produce kinds of compression spring, torsion spring, tension spring ,abnormal spring and other wire forms. Can be extended to 4 axis with spinner upon request.



Model	GT-SF-35W
Wire size(mm)	1.0-4.0
Max. outer dia.	50mm
Axes	3(4)
Feeding length	unlimited
Wire feed speed	0-75M/min
Production rate	0-100pcs/min
Wire feed Motor	5.5kw
Cam motor	5.5kw
Quill motor	1.0kw
Size(L*W*H)mm	1700x800x1900
Weight	1200.0kg



Advantages:


 1:high production capacity

 2:Stable performance and high precision

 3:Easy to operate,automatic

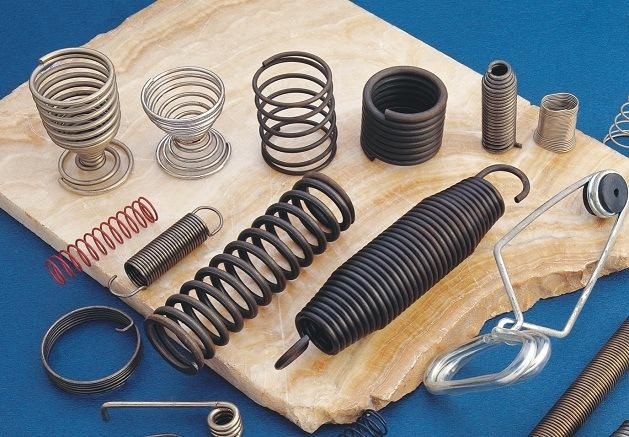

3-4 Axes Automatic CNC Automobiles Spring  Machine and product show:
