3 Axes 2D CNC Wire Bending Machine for Wire Forming
Dongguan Xinsheng Hardware Machinery Co., Ltd.- Warranty：12 Months
- Condition：New
- Certification：CE
- Automation：Automatic
- Axis：3
- Twisting Head Lifting Height：20-100mm
Base Info
- Model NO.：GT-WB-60-3A
- Raw Material：Steel Bar
- Platform Lifting Height：50-170mm
- Power：CNC
- Wire Size：2.0-6.0mm
- Extra Services：Bending and Forming
- Wire Turning Angle：Unlimited
- Feeding Roller Number：3 Pairs
- Machine Type：2D CNC Bending Machine
- Weight：3000kg
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Material / Metal Processed：Stainless Steel
- Trademark：WG
- Origin：Guangdong, China (Mainland)
Description
Basic Info.
Model NO. GT-WB-60-3A Raw Material Steel Bar Platform Lifting Height 50-170mm Power CNC Wire Size 2.0-6.0mm Extra Services Bending and Forming Wire Turning Angle Unlimited Feeding Roller Number 3 Pairs Machine Type 2D CNC Bending Machine Weight 3000kg After-Sales Service Provided Engineers Available to Service Machinery Overseas Material / Metal Processed Stainless Steel Trademark WG Origin Guangdong, China (Mainland)Product Description

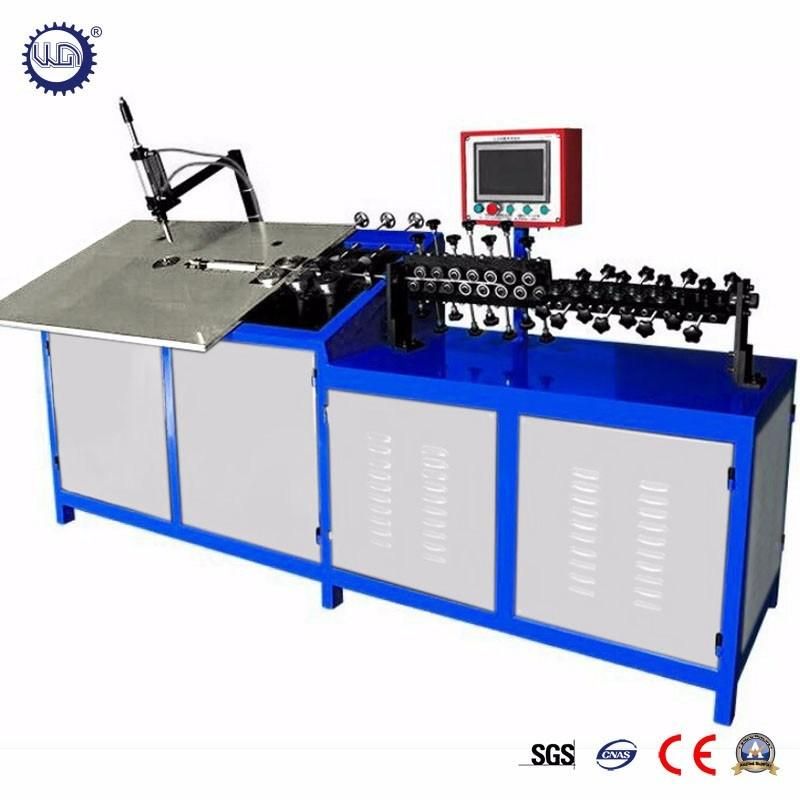

Product Description3 Axes 2D CNC Wire Bending Machine for Wire Forming

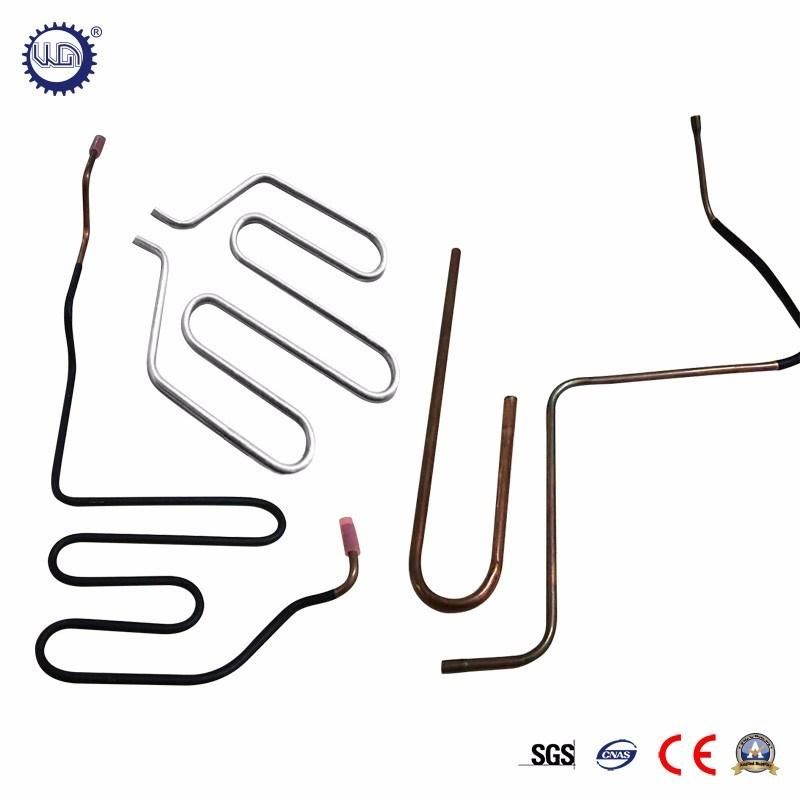

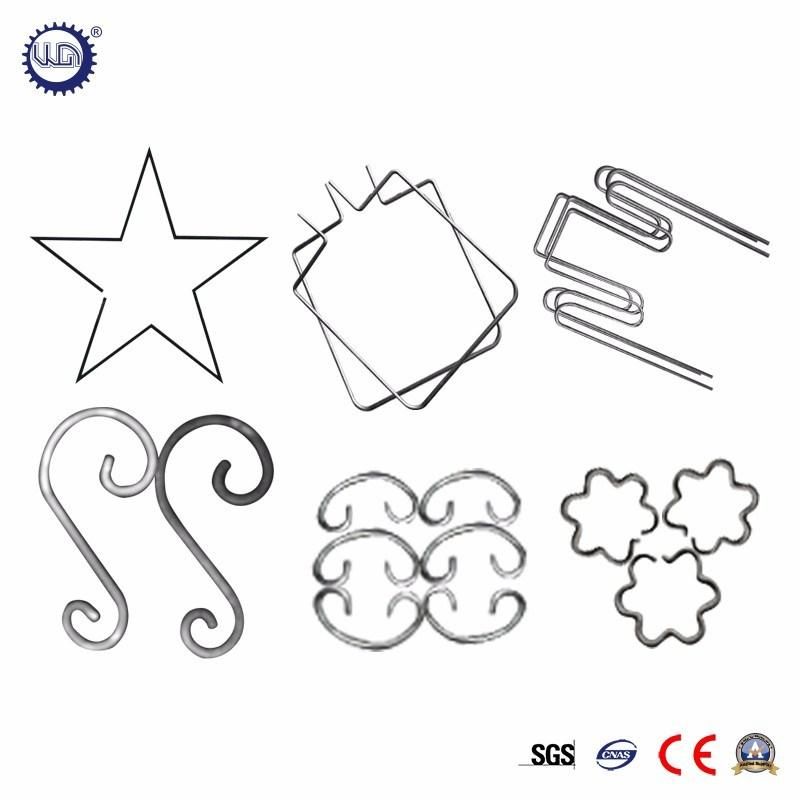

CNC 2D wire bending machine is to produce kinds of wire forms expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with Taiwan controller.
Advantages & Main Features

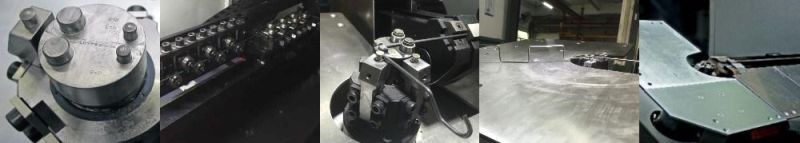

1)3-4 pairs feeding roller,feeding motor fixed on the bottom base, so as to decrease the feeding box weight,that wire rotation is more fast and stable.
2)Twist head is designed in copper tube transport, more stable and stronger than bearing transfer
3) Adopting advanced world famous brand components in CNC parts ,electric parts and operation parts.
4) Running in a high automatization and intellectualization,no pollution
| Model | GT-WB-60-5A | GT-WB-60-10A | GT-WB-80-9A | GT-WB-100-9A | GT-WB-120-7A |
| Wire Size(mm): | 2.0-6.0 | 2.0-6.0 | 3.0-8.0 | 5.0-10.0 | 5.0-12.0 |
| Axis: | 5 | 10 | 9 | 9 | 7 |
| Feeding Roller Number: | 3 pairs | 3 pairs | 3 pairs | 4 pairs | 4 pairs |
| Wire Turning Angle: | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited |
| Platform lifting height: | 50-170mm | 50-170mm | 25-120mm | 25-120mm | 25-120mm |
| Twisting head lifting height: | 20-100mm | 20-100mm | 20-80mm | 20-80mm | 20-80mm |
| Distance between cutting and bending head | / | / | / | 305mm | 305mm |
| Distance between bending head and machine body | / | / | / | 800mm | 800mm |
| Out twisting lifting height | / | 20-55mm | / | / | / |
| Left to right moving range | / | left:80mmright:40mm | left:100mm right:60mm | / | / |
| Feeding front and back moving range | / | front:300mm back:100mm | front:300mm back:100mm | / | / |
| Machine size(cm) | 180*120*120 | 300*120*140 | 350*120*150 | 380*140*170 | 450*180*170 |
| Machie weight(kg) | 3000.0 | 3200.0 | 3400.0 | 4800.0 | 8600.0 |
Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
