• Model NO.：GT-SF-60W
• Type：Coiling Bending Machine
• Speed：0-120 PCS,Min
• Weight：1500kg
• Machine Type：CNC
• Max. Outer Dia.：110mm
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Feeding Length：Unlimited
• Width：3.0-6.5mm
• Axes：3(4)
• Transport Package：Standard Fumigated Wooden Case
• Trademark：XINSHENG
• Origin：Guangdong, China (Mainland)
• HS Code：8463300000
• Production Capacity：2 Set Per Month

Basic Info.

Model NO. GT-SF-60W Type Coiling Bending Machine Speed 0-120 PCS/Min Weight 1500kg Machine Type CNC Max. Outer Dia. 110mm After-Sales Service Provided Engineers Available to Service Machinery Overseas Feeding Length Unlimited Width 3.0-6.5mm Axes 3(4) Transport Package Standard Fumigated Wooden Case Trademark XINSHENG Origin Guangdong, China (Mainland) HS Code 8463300000 Production Capacity 2 Set Per Month

Product Description

3-4 Axes Automatic CNC Multifunction Metal Wire Spring Forming Machine



Product Description

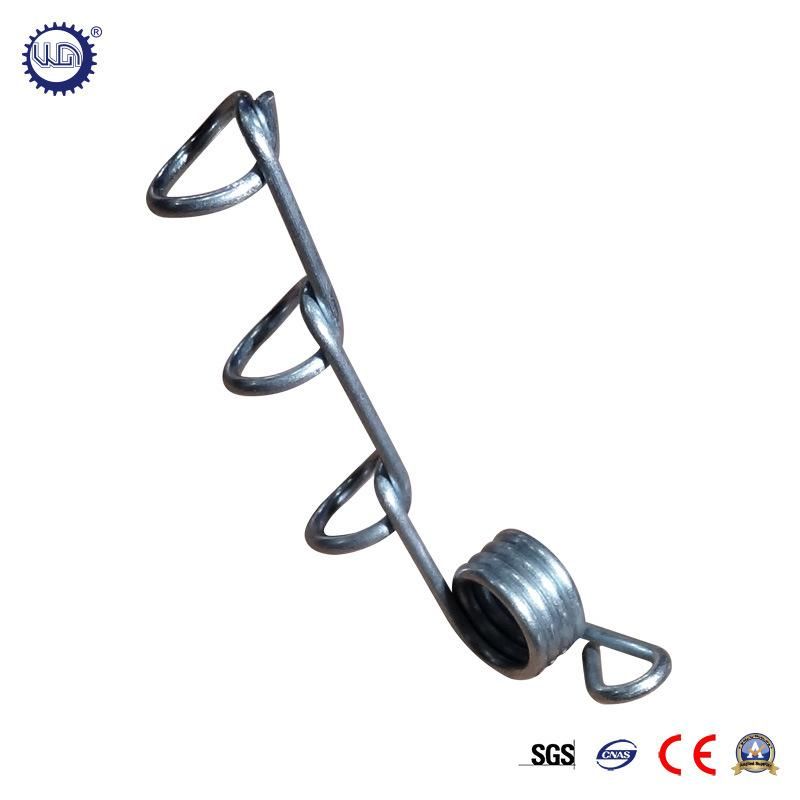

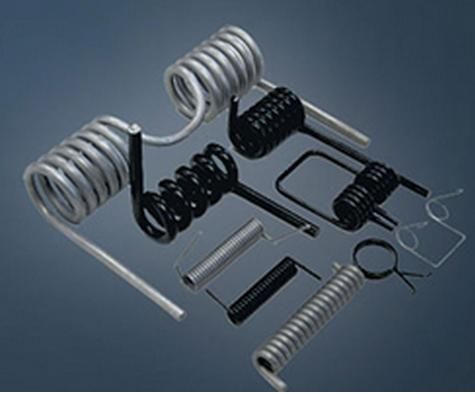

professional Automatic CNC Spring Forming Machinery is to produce kinds of springs expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with Taiwan controller. It can produce kinds of compression spring, torsion spring, tension spring ,abnormal spring and other wire forms. Can be extended to 4 axis with spinner upon request.



Technical Parameter:


Model	GT-SF-60W
Wire size(mm)	3.0-6.5
Max. outer dia.	110mm
Axes	3(4)
Feeding length	unlimited
Wire feed speed	0-75M/min
Production rate	0-120pcs/min
Wire feed Motor	15.0kw
Cam motor	7.5kw
Quill motor	1.5kw
Size(L*W*H)mm	3000x1800x2000
Weight	1500.0kg



Advantages:


 1:high production capacity

 2:Stable performance and high precision

 3:Easy to operate,automatic

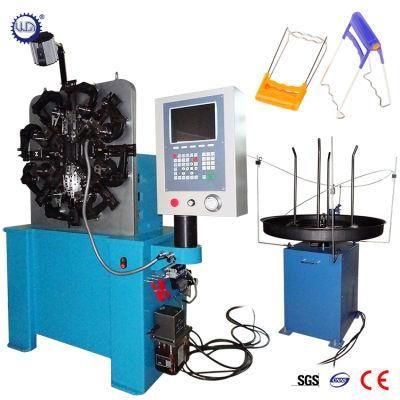

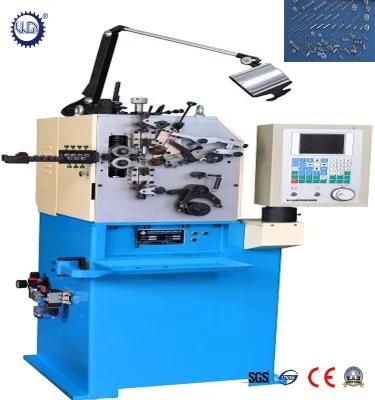

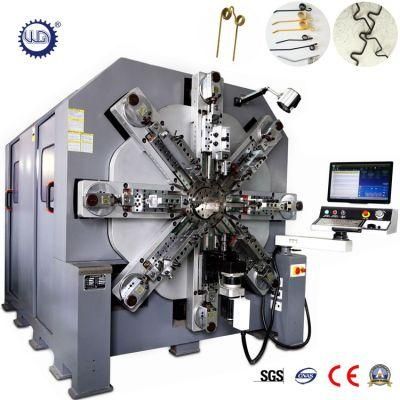

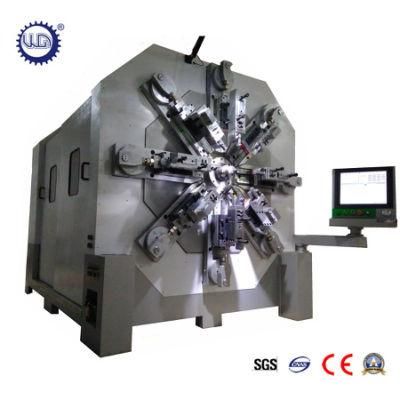

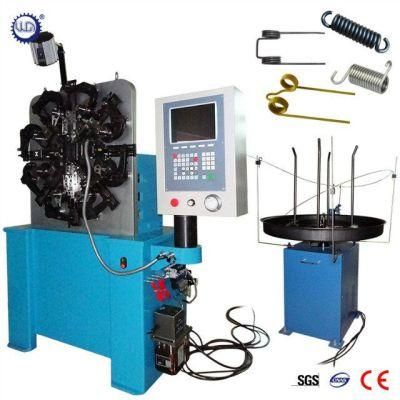

3-4 Axes Automatic CNC Multifunction Metal Wire Spring Forming Machine Display:
