• Model NO.：GT-WB-80-3A
• Type：Cnc Bending Machine
• Voltage：220V,380V,440V,415V,Customized
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Control System：PLC
• Color：Blue
• Transport Package：Standard Export Wooden Case
• Trademark：XINSHENG
• Origin：Guangdong, China (Mainland)
• HS Code：8462219000
• Production Capacity：10 Set Per Month

Basic Info.

Model NO. GT-WB-80-3A Type Cnc Bending Machine Voltage 220V/380V/440V/415V/Customized After-Sales Service Provided Engineers Available to Service Machinery Overseas Control System PLC Color Blue Transport Package Standard Export Wooden Case Trademark XINSHENG Origin Guangdong, China (Mainland) HS Code 8462219000 Production Capacity 10 Set Per Month

Product Description

Product Description

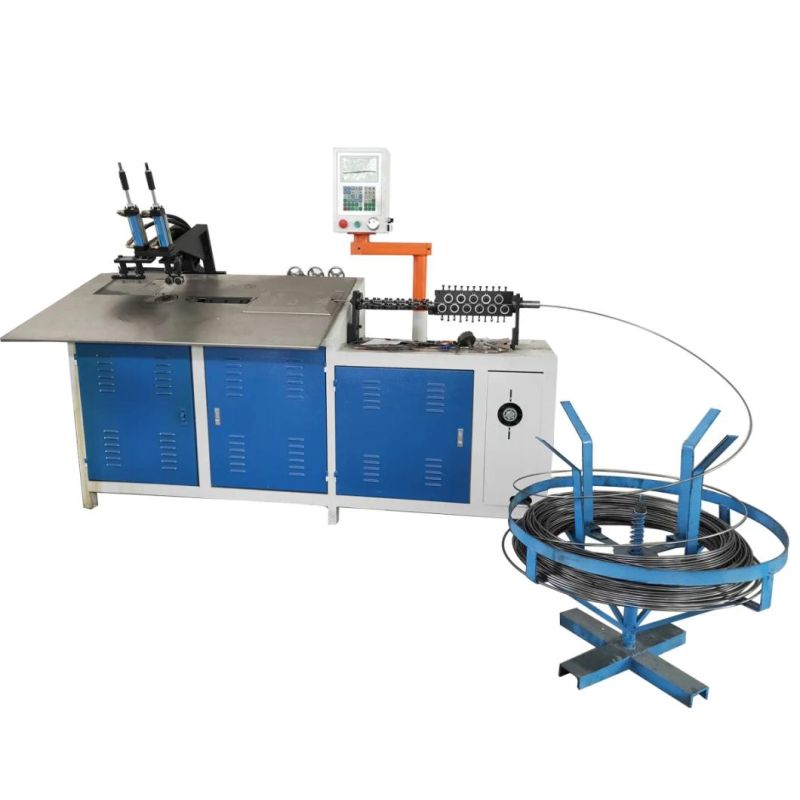

Model	GT-WB-80-3A
Line Diameter	3.0-8.0mm
Axis	3
Feeding Roller Number	24 pairs
Wire Turning Angle	180o
Feeding Servo Motor Power	2.3kw
Twisting Servo Motor Power	2.3kw
Lifting Servo Motor Power	0.75kw
Hydraulic Cylinder Number	5
Hydraulic Motor Power	2.2kw
Feeding Accurancy	±0.2mm
Bending Accurancy	±0.5mm
Feeding Speed	0-22mtrs/min
Production Capacity	10-12pcs/min(take 0.2*0.2m2 square frame as reference)
Dimension	280*85x158cm3
Weight	1200kg

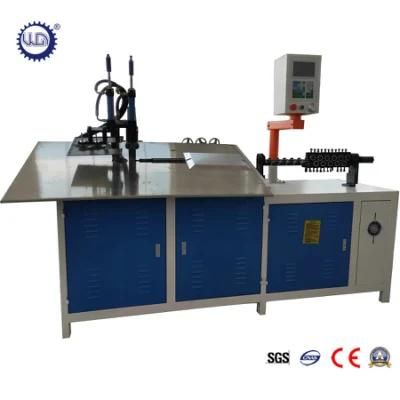

Driven by hydraulic power, controlled by CNC & PLC system, it can produce kindS of 2d wire bending products in high precision and stableness.



Features:
high precision
stableness
flexibility
no certain mold needed
program and store 300 kinds of products

  Certifications    Our ServicePre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
