• Model NO.：DB-40
• Machine Type：Hydraulic Tube Bending Machine
• Certificates：Ce, ISO9001
• Color：Blue or Customized
• Special Function：Two or Three Tubes Bend Together
• Modle：dB-38
• Brand：Sanco
• Technology：Taiwan
• Max Capacity：Od38*2mm
• 3D Bending：Available
• Head Rotary：Available
• Transport Package：Wooden Case
• Specification：1200kgs
• Trademark：Sanco
• Origin：China
• HS Code：846221
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. DB-40 Machine Type Hydraulic Tube Bending Machine Certificates Ce, ISO9001 Color Blue or Customized Special Function Two or Three Tubes Bend Together Modle dB-38 Brand Sanco Technology Taiwan Max Capacity Od38*2mm 3D Bending Available Head Rotary Available Transport Package Wooden Case Specification 1200kgs Trademark Sanco Origin China HS Code 846221 Production Capacity 3000 Sets/Year

Product Description

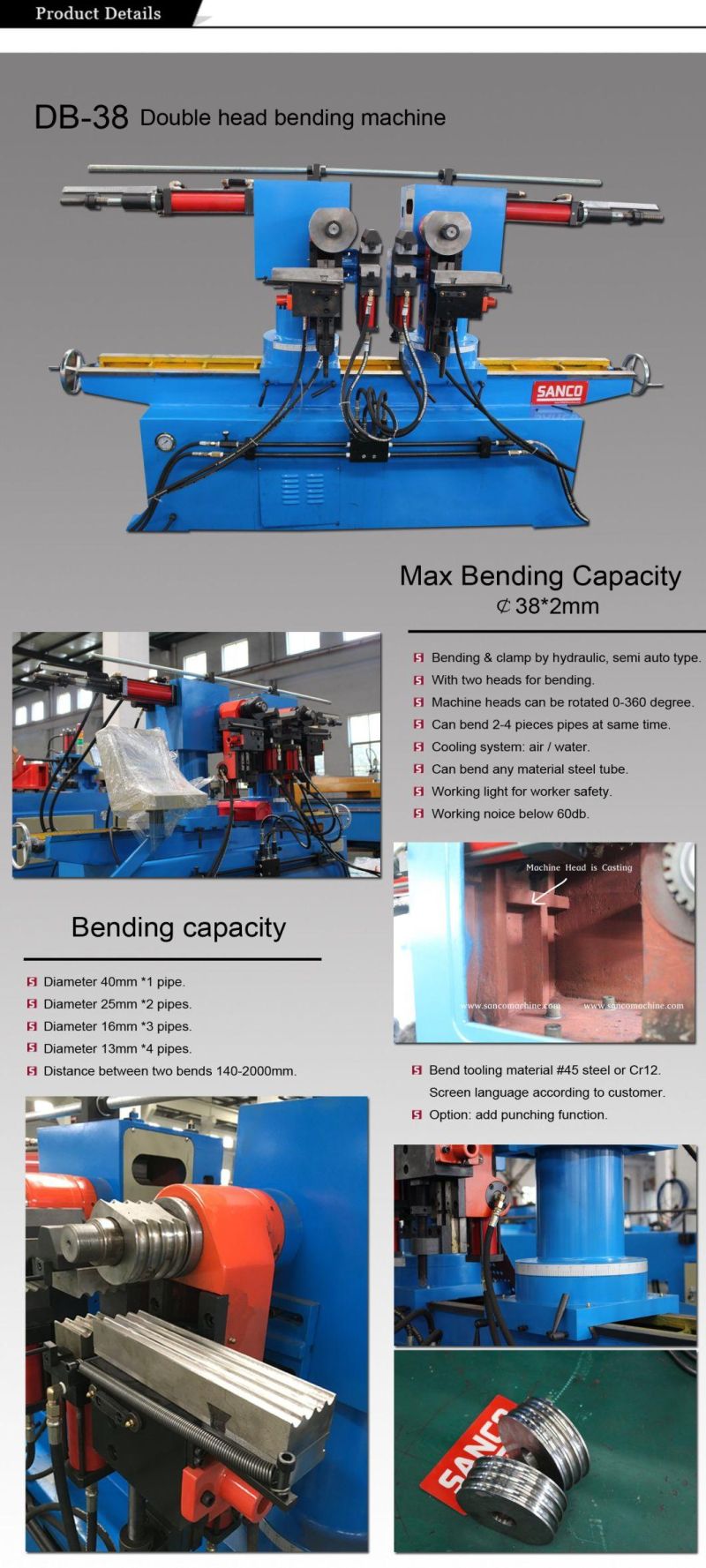

Double Head steel bar bending machine

All our series bending machine can bend both hollow tube and solid bar.
This double head pipe bending machine can bend more than one tube together same time, and make two bends on tube one time. It is mostly suitable for the chair frame, which can greatly decrease production time, reduce labor cost, and thus increase working efficiency in great grade.





Technical Data

Name	Specification
Max.Capacity(O.D×WT)	Mild steel¢40×2.0 mm
Capacity of bending	Φ40mm X 1  pipe Φ25mm X 2  pipes Φ16mm X 3  pipes Φ13mm X 4  pipes
Bending	Hydraulic
Rotating Machine Head	3600 rotating for 3D bending
Max. bending angle	185°
Distance between two bends	Standard: 140 - 2000 mm Option: According to customer
Bending speed	90°/sec
Bending precision	±0.05°
Max. Pressure	12MP (Adjustable)
Woking noise	≤60db
Screen language	English / other
Program storage	Maximum 20 sets
