• Model NO.：SB-75NCB
• Machine Type：Hydraulic Tube Bending Machine
• Certificates：Ce, ISO9001
• Color：Blue or Customized
• Eextra Function：1d Bending, Cutting
• Modle：Sb-38ncb
• Brand：Sanco
• Technology：Taiwan
• Application：Wheelbarrow, Wheelchair, Boiler, Automobile
• Applied Material：Carbon Steel, Stainless Steel, Copper, Aluminum
• Transport Package：Wooden Case
• Specification：1000KGS
• Trademark：Sanco
• Origin：China
• HS Code：8462219000
• Production Capacity：50000,Year

Basic Info.

Model NO. SB-75NCB Machine Type Hydraulic Tube Bending Machine Certificates Ce, ISO9001 Color Blue or Customized Eextra Function 1d Bending, Cutting Modle Sb-38ncb Brand Sanco Technology Taiwan Application Wheelbarrow, Wheelchair, Boiler, Automobile Applied Material Carbon Steel, Stainless Steel, Copper, Aluminum Transport Package Wooden Case Specification 1000KGS Trademark Sanco Origin China HS Code 8462219000 Production Capacity 50000/Year

Product Description

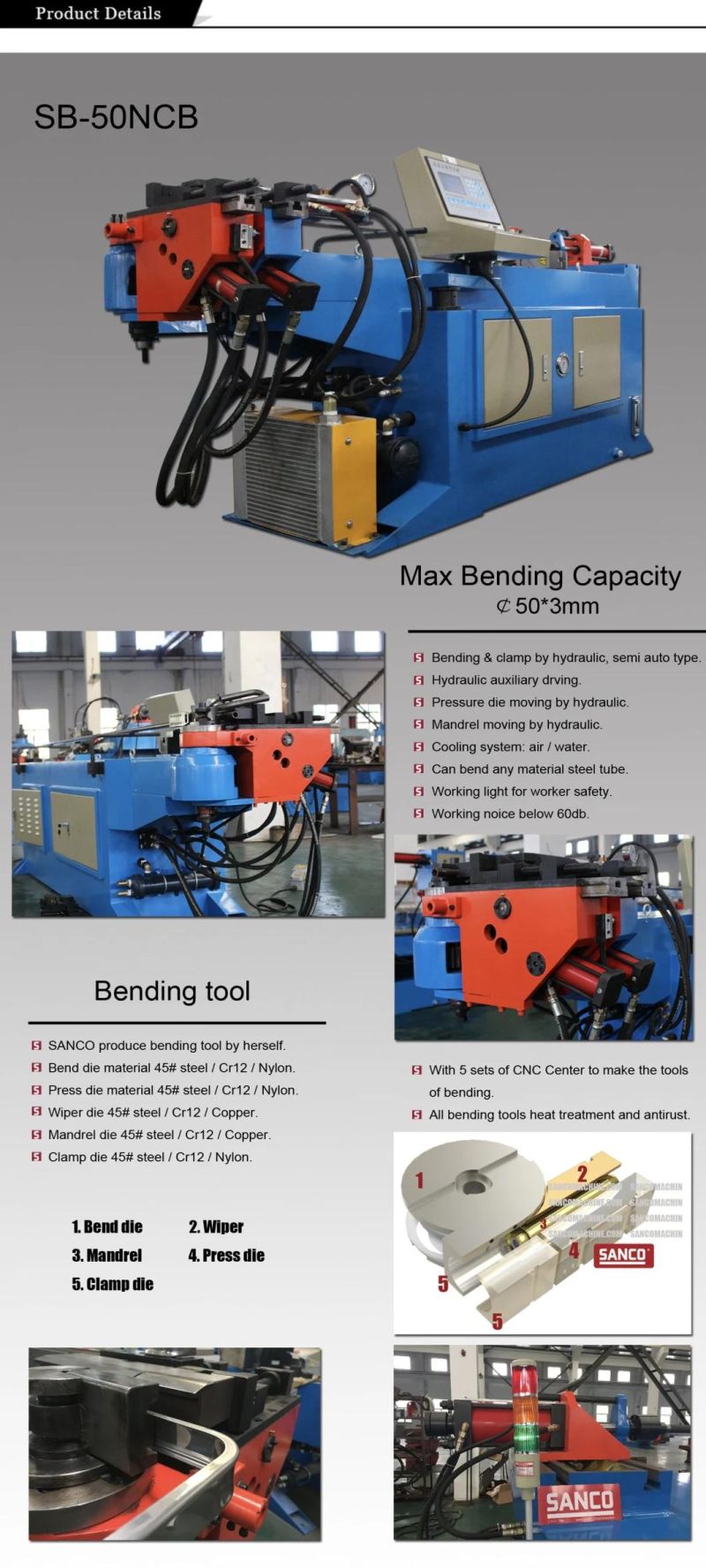

Hydrolic Pipe Bending Machine





Technical Data:

No.	Item	Data
1	Max Round Tube Mild Steel	50.8x2 mm
2	Non Ferrous	50.8x4 mm
3	Square Tube Mild Steel	40x40x2 mm
4	Solid Bar	25 mm
5	Min/Max Bend Radius	35 - 250 mm
6	Clamp Stroke	65 mm
7	Pressure Slide Stroke	65 mm
8	Max Bend Angle	190 Deg
9	Max Length Over Mandrel	2230 mm
10	Bending Speed	44 Deg/Sec
11	Bending Precision	+/-0.3 Deg
12	Hydraulic Motor	5.5 Kw
13	Total Power	5.5 Kw
14	Hydraulic Pressure	120 Bar
15	Hydraulic Tank Capacity	160 L
16	Machine Size	3050x720x1210 mm
19	Machine Weight	1000 Kg
