Wc67K E22 30t 1000mm Small Bending Angle Programmed CNC Press Brake

LZK CNC Machine Tool (Anhui) Manufacturing Co., Ltd.
  • Warranty：2-year
  • Condition：New

Base Info

  • Model NO.：WC67K 30T,1000mm
  • Certification：CE
  • Automation：Automatic
  • Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Mild Steel, Galvanized Sheet
  • Type：Press Brake
  • System：E22p

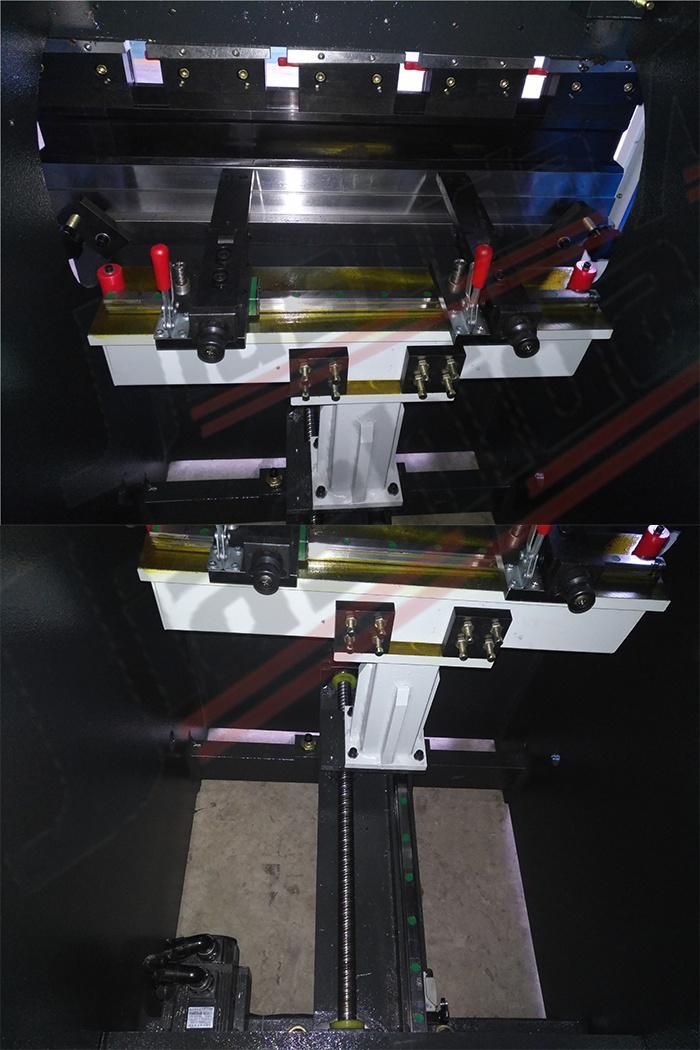

  • Backgauge：500mm Distance, Ball Screw, Linear Guide Rail
  • Bending Angle Programmed：Yes
  • Max Bending Thickness：4mm
  • Max Bending Legnth：1000mm
  • Clamping System：Quick Clamp
  • Main Motor：Siemens
  • Electrical Components：Schneider
  • Hydraulic Valve：Rexroth
  • Weight：2100kg
  • Transport Package：20gp
  • Specification：1200X1300X1750mm
  • Trademark：Jiashida Machine
  • Origin：China
  • HS Code：8462219000
  • Production Capacity：100 Sets,Month

Description

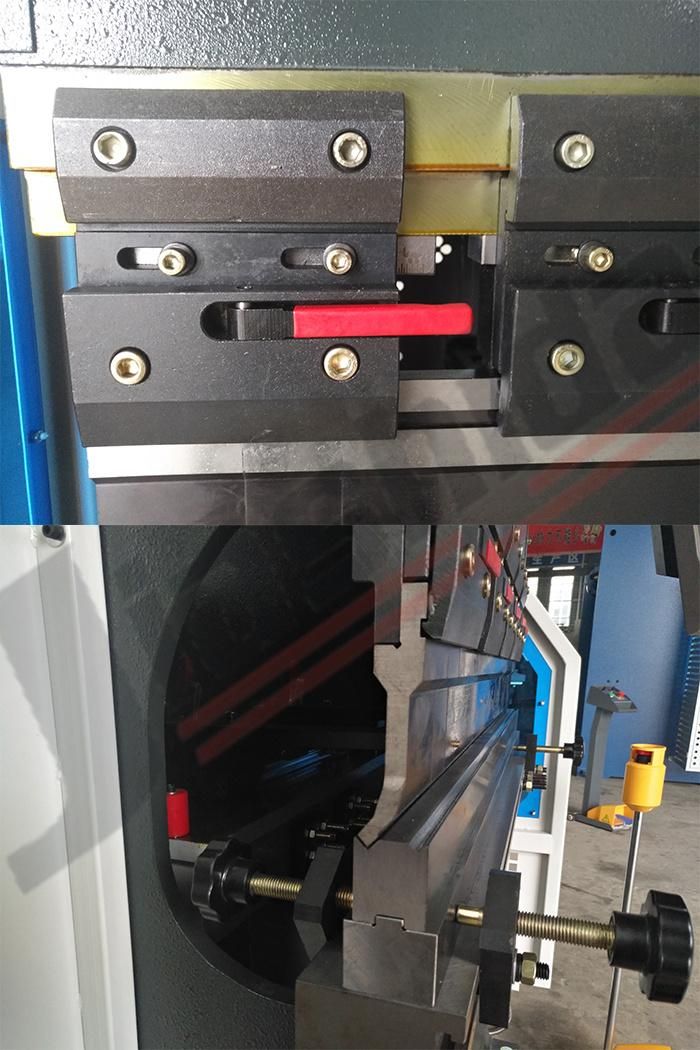

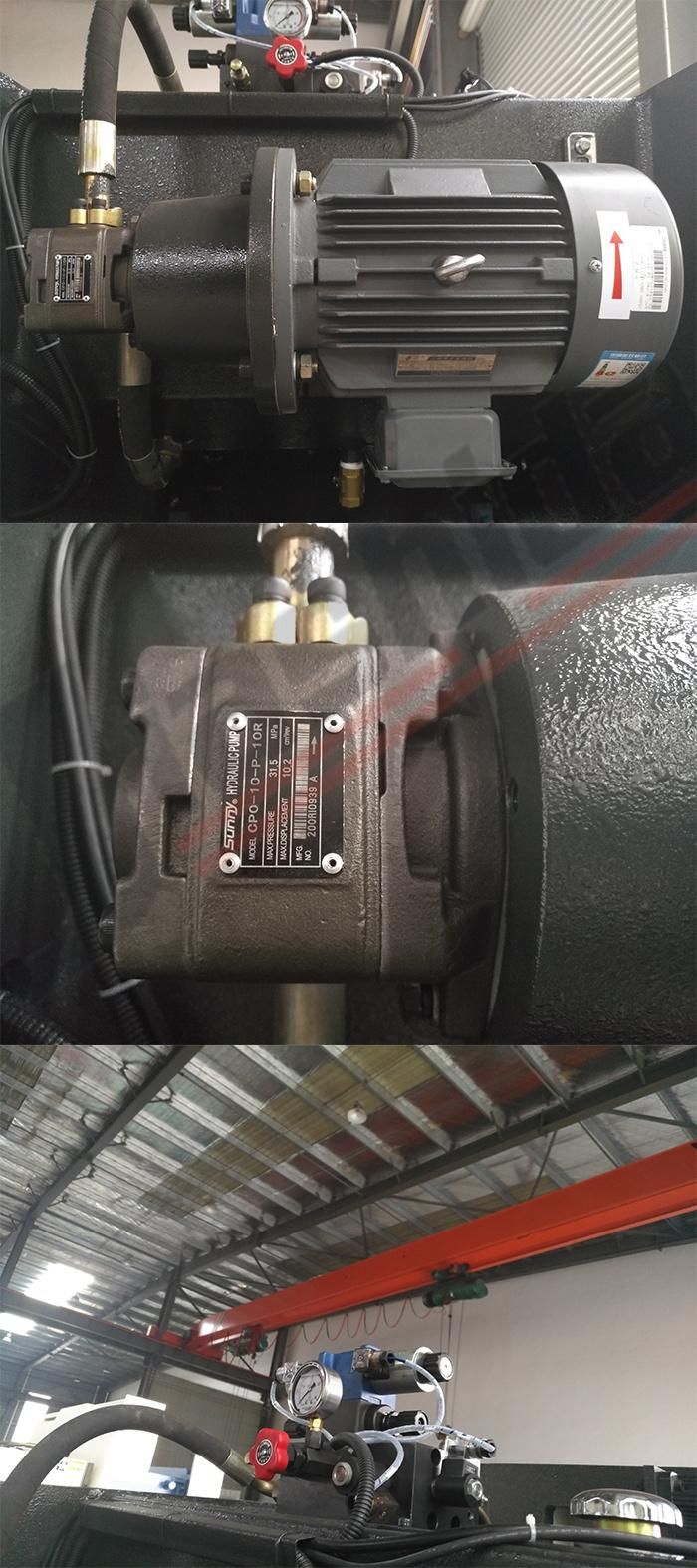

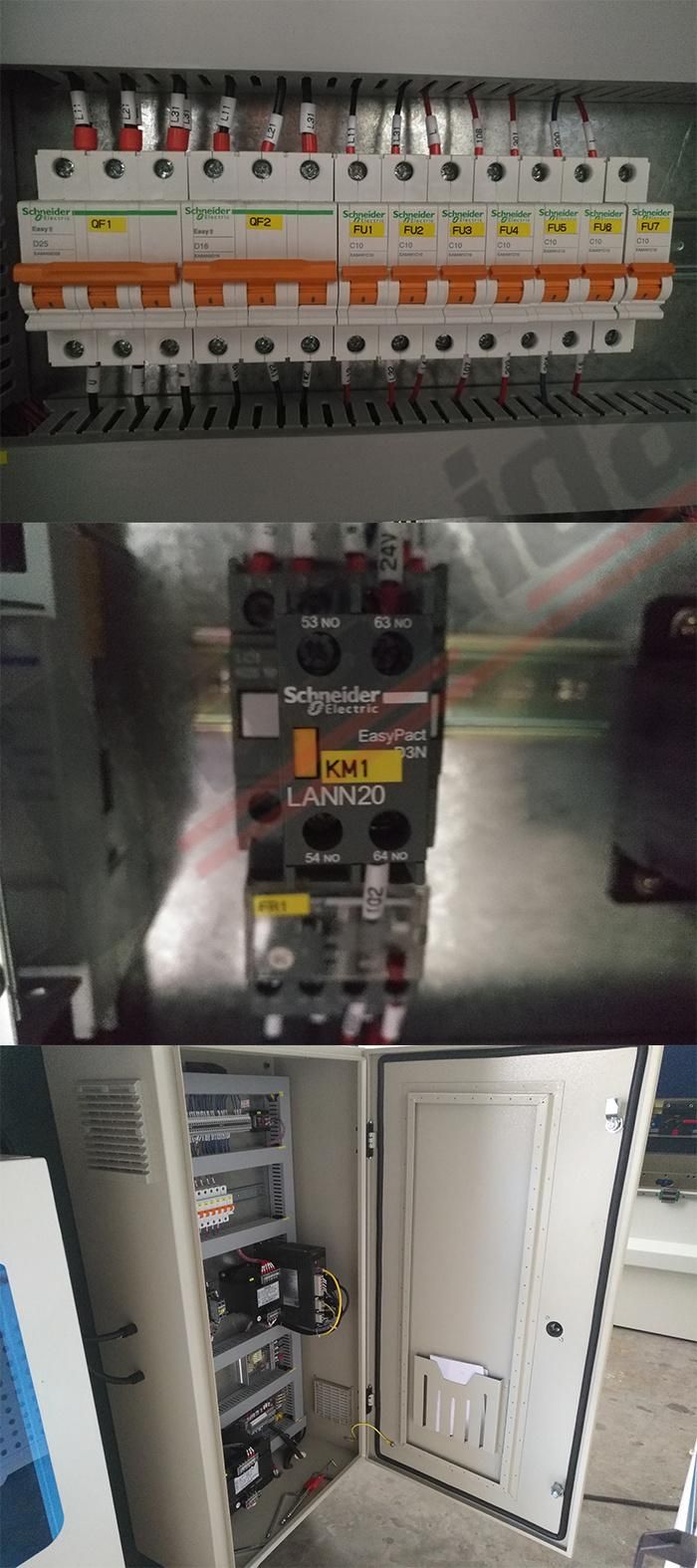

WC67K Series NC Press Brake Machine Features:The frame is made of steel structure, left and right vertical plate, worktable and pressure plate are welded into a whole structure. After welding, the internal stress is eliminated by tempering, so the whole steel is good and the stability is high.The oil cylinder has been forged, Quenched and tempered, fine grinding, hard chromium plating and other processes, and with the import of sealing ring, the phenomenon of oil leakage in customer service.Hydraulic synchronous control and E22 programmable logic controller ensure accurate repeat-ability and ease use, bending angle can be directly controlled by system. X axis and Y axis realize accurate positioning function by frequency converter through NC E22 system programming control.Wc67K E22 30t 1000mm Small Bending Angle Programmed CNC Press BrakeQuick Clamp2V toolsWc67K E22 30t 1000mm Small Bending Angle Programmed CNC Press BrakeSiemens Main MotorAmerica Sunny Oil PumpBosch-Rexroth ValveWc67K E22 30t 1000mm Small Bending Angle Programmed CNC Press BrakeSchneider main electrical componentsJapan Yaskawa servo motor and driveWc67K E22 30t 1000mm Small Bending Angle Programmed CNC Press BrakeBackgauge with 500mm distanceBall screw and linear gude railServo motor Wc67K E22 30t 1000mm Small Bending Angle Programmed CNC Press BrakeLimit SwitchSouth Korea Footpedal
