MB8 250t4000 8mm Mild Steel Sheet Metal Bending Press Brake

LZK CNC Machine Tool (Anhui) Manufacturing Co., Ltd.
  • Waterproof Rating：IPX-8
  • Warranty：2-year
  • Condition：New
  • Certification：CE
  • Automation：Automatic
  • Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Mild Steel, Galvanized Sheet

Base Info

  • Model NO.：MB8 250T4000
  • Type：Press Brake
  • CNC System：Delem Da52s
  • Axes：Y1, Y2, X, Automatic Crowning
  • Max Bending Length：4000mm
  • Max Bending Thickness for 4m Sheet：8mm
  • Weight：14800kg
  • Main Motor：Siemens
  • Hydraulic System：Bosch Rexroth
  • Servo Motor&Drive：Yaskawa

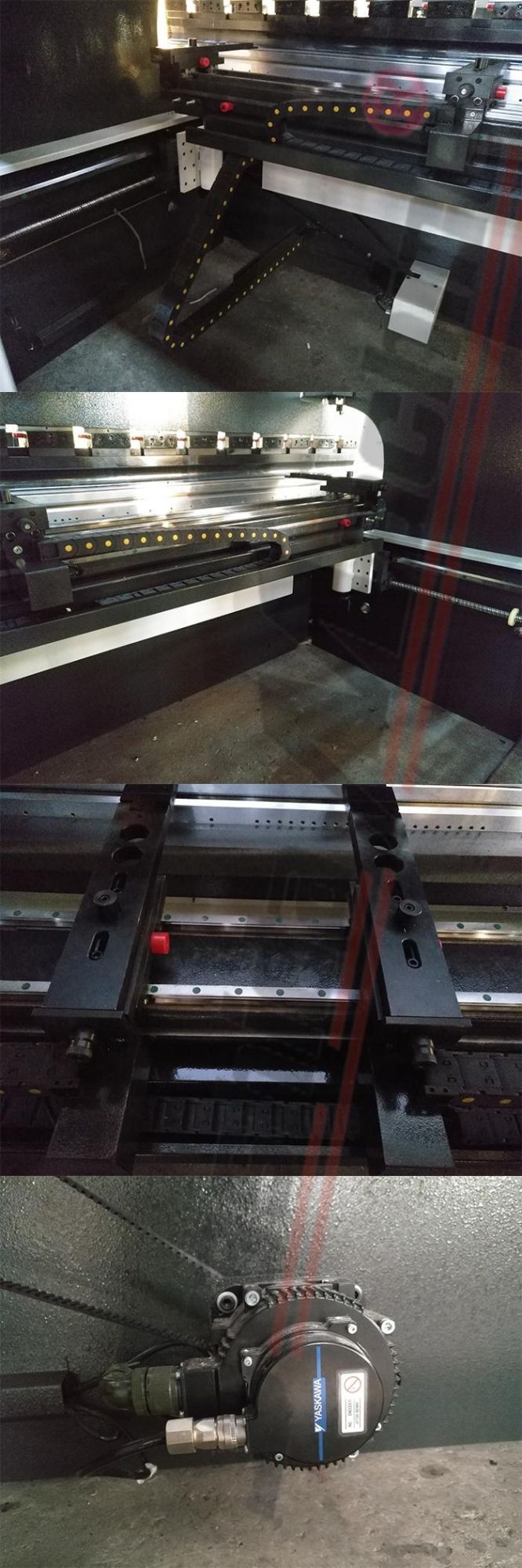

  • Backgauge：600mm Distance with Ball Screw&Linear Guide Rail
  • Main Electrical Components：Schneider
  • Transport Package：Covered with Plastic Film, 20ot Container
  • Specification：4450x2100x2850mm
  • Trademark：Jiashida Machine
  • Origin：China
  • HS Code：8462219000
  • Production Capacity：100 Sets,Month

Description

MB8 Series E-Hydraulic CNC Press Brake with DA52S System 3+1 Axes Features:The frame is made of steel structure, left and right vertical plate, worktable and pressure plate are welded into a whole structure. After welding, the internal stress is eliminated by tempering, so the whole steel is good and the stability is high.Latest high-frequency responding hydraulic control technology, faster, more efficient and accurate.The oil cylinder has been forged, Quenched and tempered, fine grinding, hard chromium plating and other processes, and with the import of sealing ring, the phenomenon of oil leakage in customer service.The hydraulic system adopts the integrated hydraulic system of oil road to reduce the installation of the pipeline, and the appearance of the hydraulic system is beautiful and concise.The use of hydraulic deflection compensation gives access to uniform full length workpieces. Hydraulic deflection compensation consists of a set of oil cylinders under the worktable, which can make the table occurs relative movement and form an ideal convex curve, ensuring the relative positions with slider keep unchanged. Compensation valves are subject to plate thickness and properties of material to be bent.MB8 250t4000 8mm Mild Steel Sheet Metal Bending Press BrakeBackgauge600mm X axis distanceBall Screw and Linear Guide Rail Z1, Z2 axes are electrical controlled, can move left and right by operating the small handles on the footpedal, with strong structure, long life. Japan YASKAWA servo motor, high precision and stable peroformance

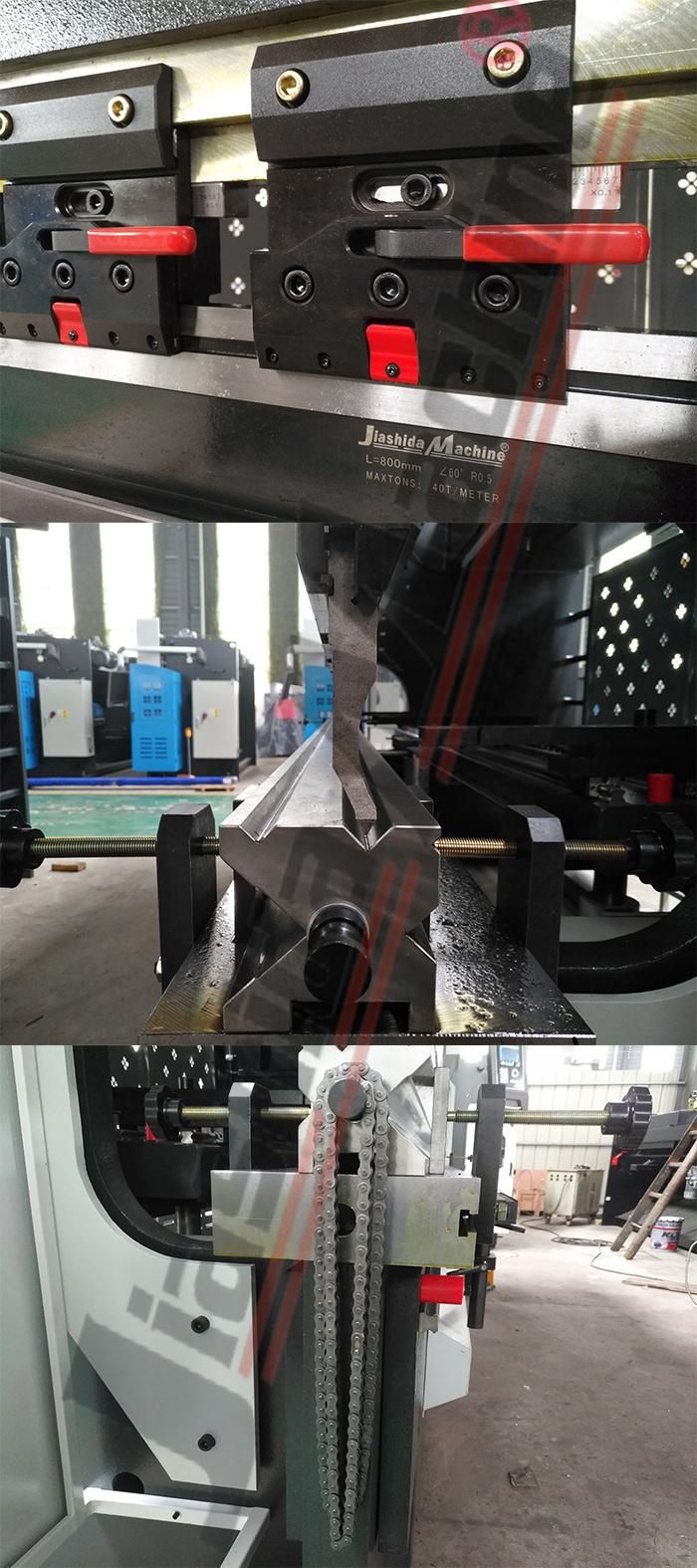

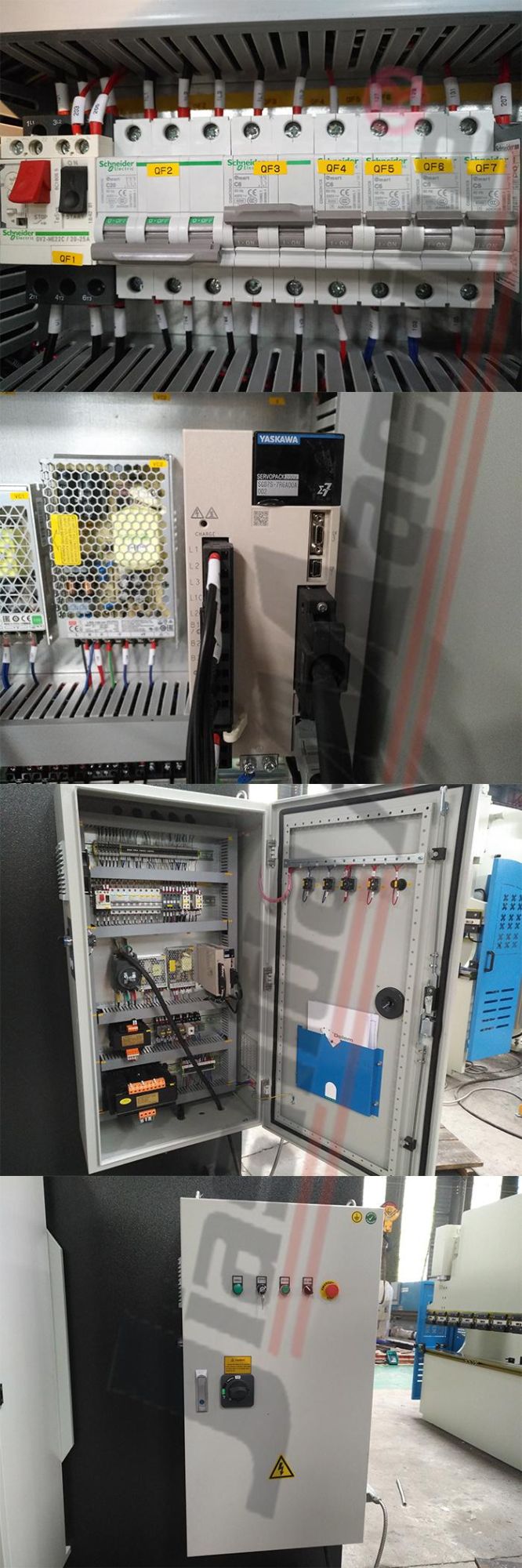

MB8 250t4000 8mm Mild Steel Sheet Metal Bending Press BrakeElectricsMain electrical component is SchneiderJapan YASKAWA servo driveMB8 250t4000 8mm Mild Steel Sheet Metal Bending Press BrakeQuick clamp, easy tool changingToolsMaterial: 42CrMo
Die: 2-V or Multi V
Overall quenching process, high hardness and
good wear resistance.
Can be segmented

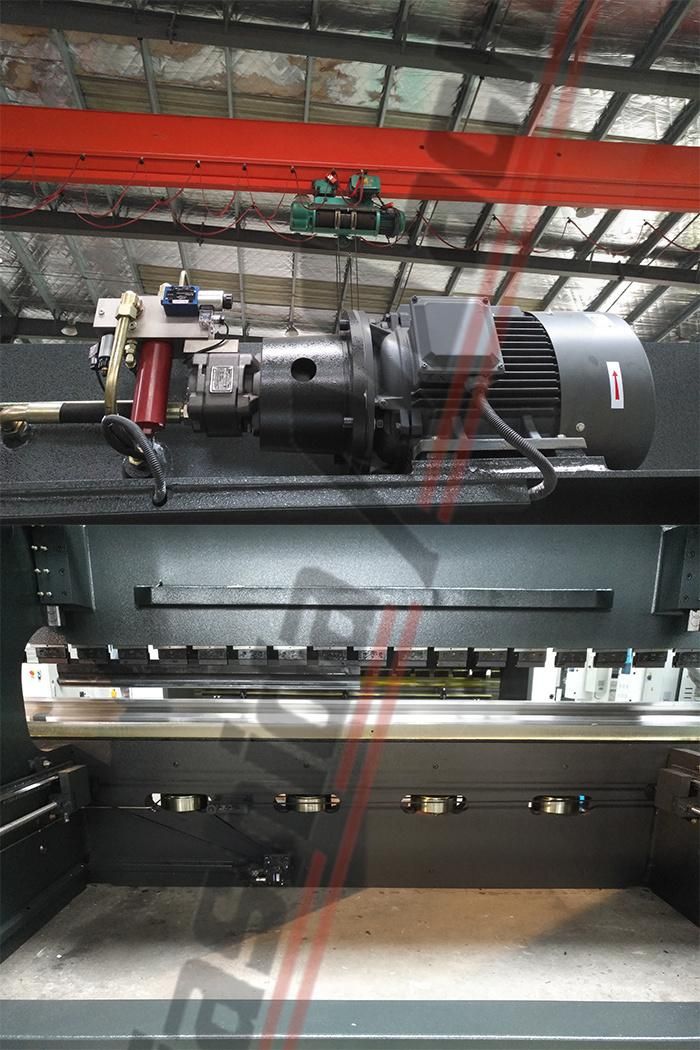

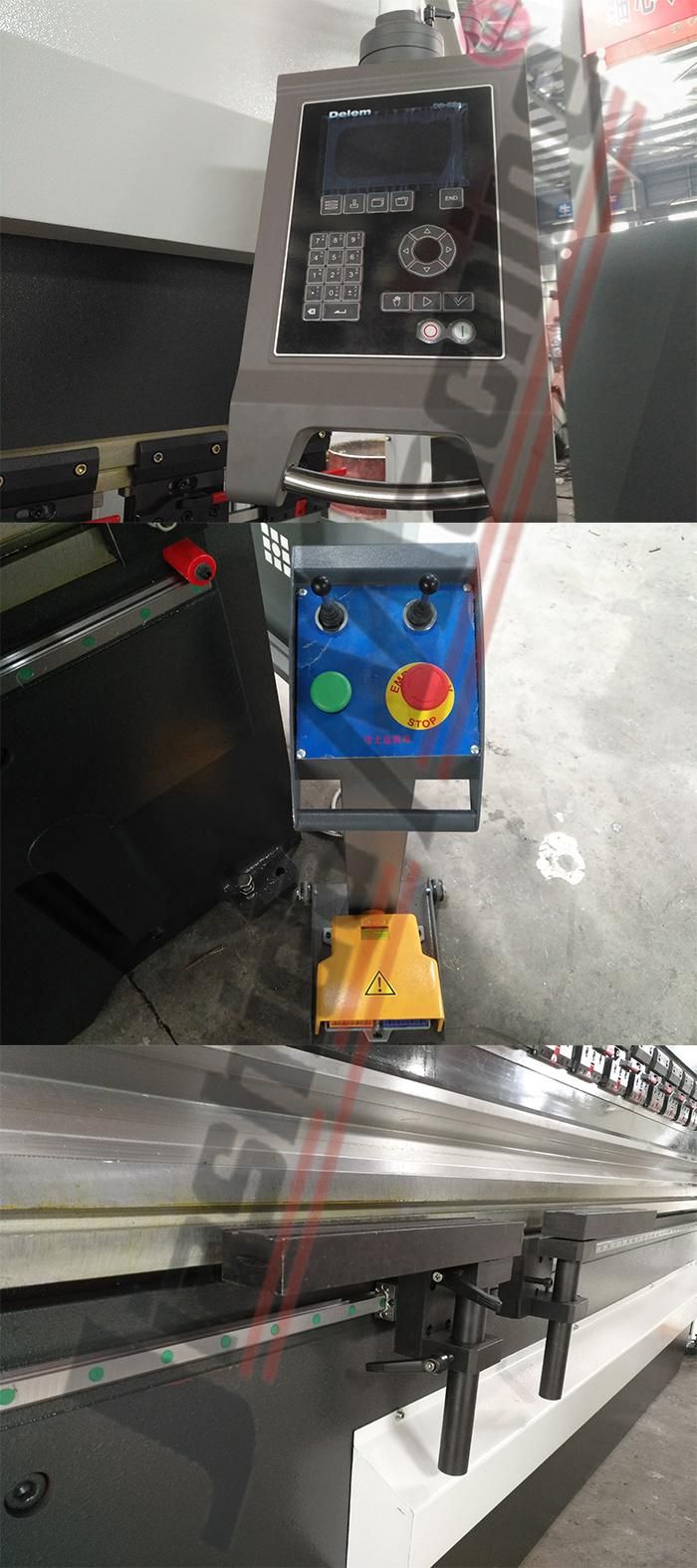

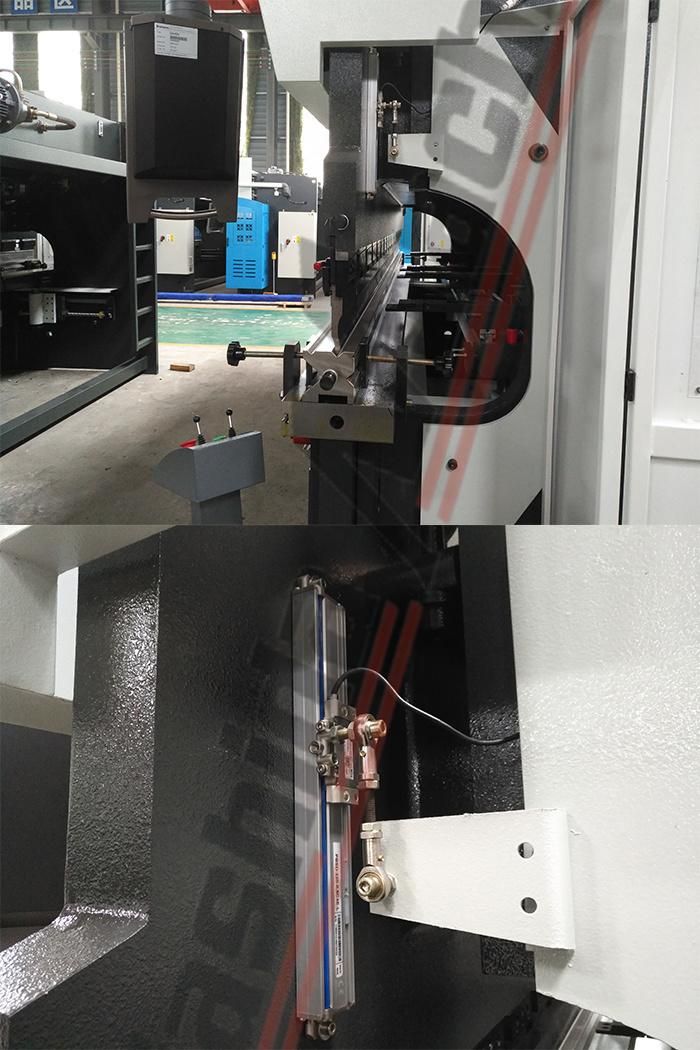

Can be customizedMB8 250t4000 8mm Mild Steel Sheet Metal Bending Press BrakeItaly Givi/Spanish FAGOR Grating RulerPress brake using fully closed-loop electro-hydraulic servo control technology, slider position signals can be feedback to CNC system by bilateral gratings, then CNC system adjusts the amount of fuel tank by changing the synchronous valve opening size, hereby controlling the slider Y1, Y2 running on the same frequency,maintaining the parallel state of the worktable.MB8 250t4000 8mm Mild Steel Sheet Metal Bending Press BrakeDelem DA52S CNC SystemSouth Korea Foot Pedal, the Z1 and Z2 axes can by controlled by the two black small handle on the foot pedal. Two Pieces of sliding front support arms can be moved along the rail MB8 250t4000 8mm Mild Steel Sheet Metal Bending Press BrakeHydraulic SystemBosch Rexroth ValveAmerica Sunny Oil PumpMain Motor SiemensHydraulic Automatic Compensation--When working, the lower compensating cylinder exerts an upward force on the vertical plate of the work table and the main oil cylinder is equal to the force of the working table, and generates an upward convex curve to compensate the deformation of the working platform vertical plate and the slide block during working.
--Each group consists of several groups of three-dimensional curved surfaces with different slopes. This compensates for the shortcomings of traditional hydraulic compensation in compensating blind spots. The compensation curve is closer to the deformation curve of the slide plate, which greatly improves the machining accuracy of the bending machine.MB8 250t4000 8mm Mild Steel Sheet Metal Bending Press Brake
MB8 250t4000 8mm Mild Steel Sheet Metal Bending Press Brake

Customer visited fromall over the world.

MB8 250t4000 8mm Mild Steel Sheet Metal Bending Press Brake

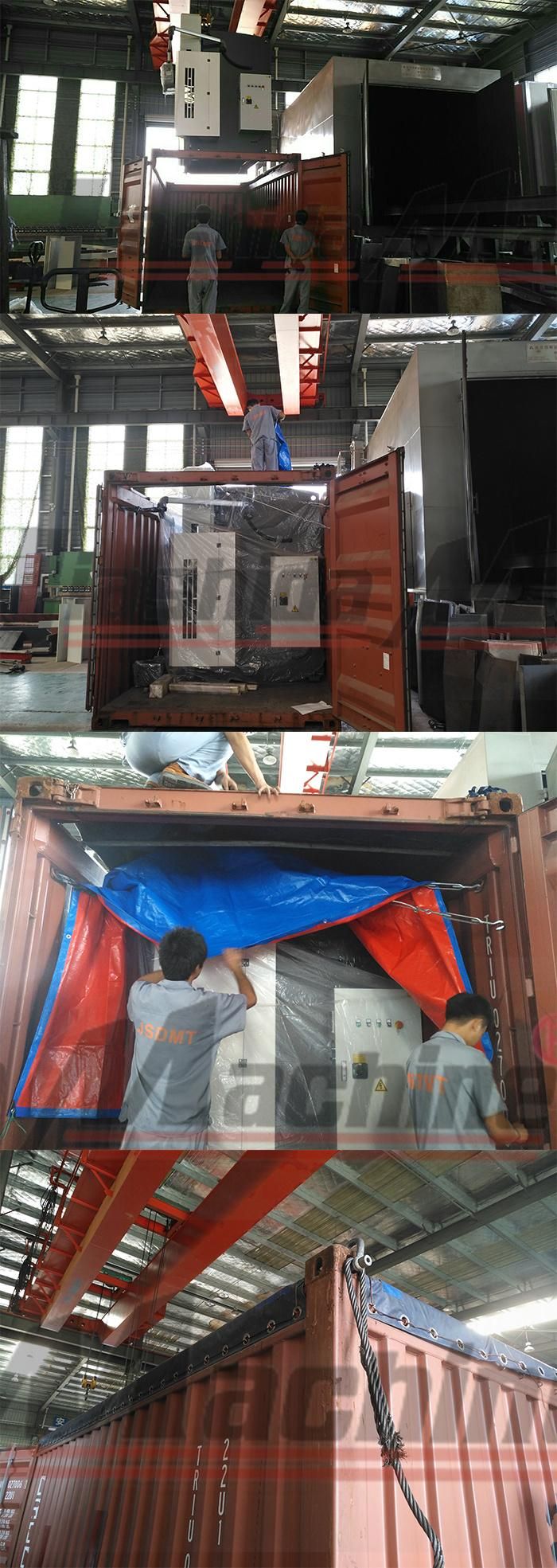

20OT loading process for the MB8 250T4000 CNC press brake

MB8 250t4000 8mm Mild Steel Sheet Metal Bending Press Brake
MB8 250t4000 8mm Mild Steel Sheet Metal Bending Press Brake

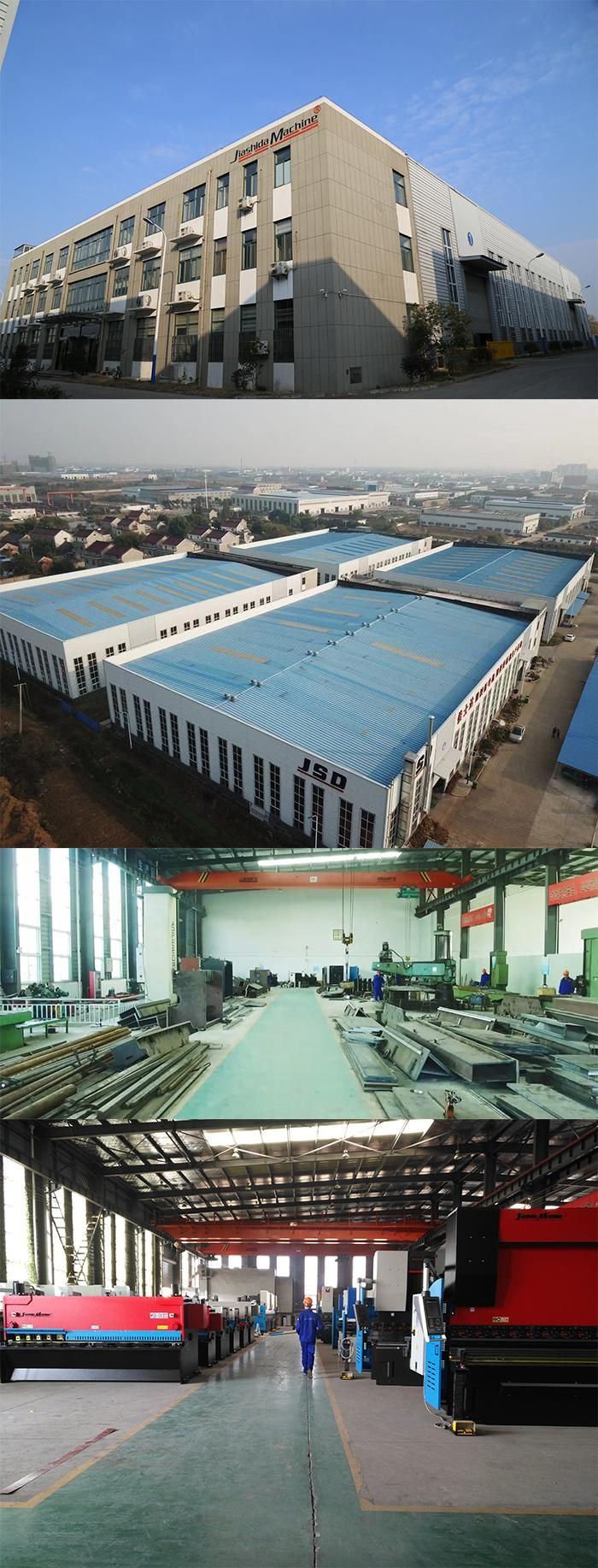

Company Brief View.
