• Type：Cnc Bending Machine
• Product Name：2D CNC Wire Bending Machine
• Axes：3
• Wire Size：2.0-6.0mm
• Weight：2000kg
• Transport Package：Standard Fumigated Wooden Case
• Specification：370x90x160cm
• Trademark：WG
• Origin：Dongguan, China
• HS Code：8462299000
• Production Capacity：10 Sets,Month

Basic Info.

Type Cnc Bending Machine Product Name 2D CNC Wire Bending Machine Axes 3 Wire Size 2.0-6.0mm Weight 2000kg Transport Package Standard Fumigated Wooden Case Specification 370x90x160cm Trademark WG Origin Dongguan, China HS Code 8462299000 Production Capacity 10 Sets/Month

Product Description

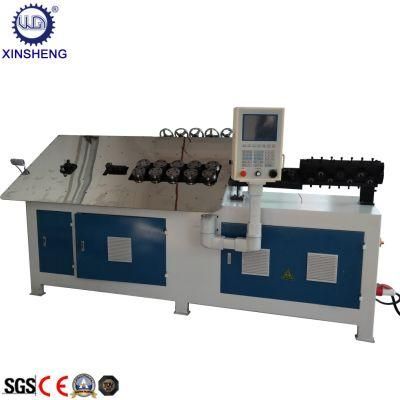

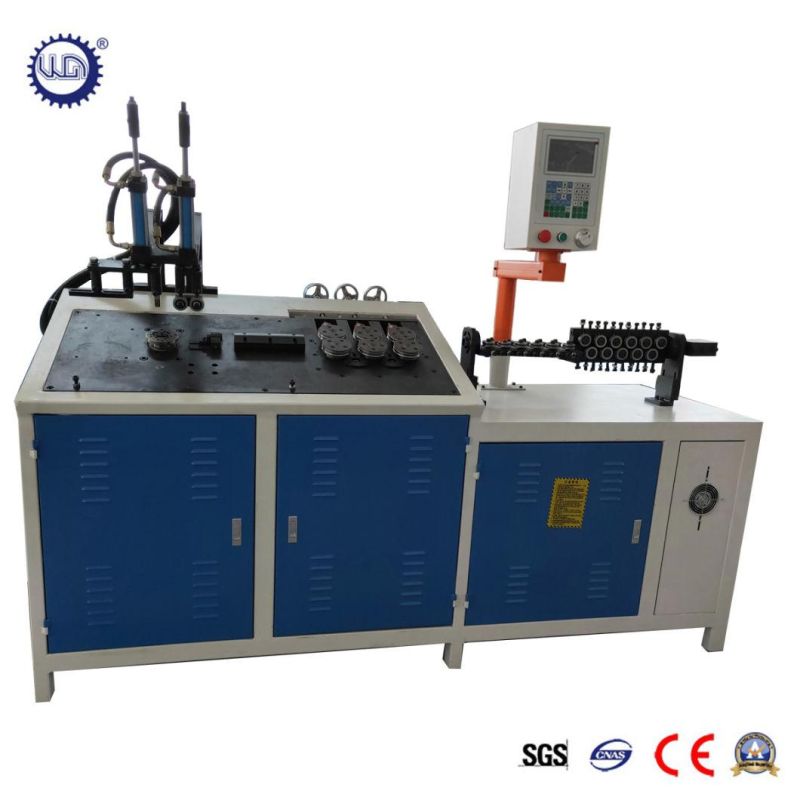

4 Axis 2D CNC Wire Bending Machine


Adopt CNC industrial computer system with 3 years guarantee period. It is combined with 3-4 servo motors, which can make and store 2000sets programs , supporting data and parameters outlet by USB,. Stable sire feeding, and convenient programming by inputting parameters. Has the advantage of less noise and endurable quality ,comparing with traditional hydraulic bending machine.

Technical Parameter

Model	GT-WB-60-4A	GT-WB-80-4A	GT-WB-100-4A	GT-WB-120-3A
Wire size(mm)	2.0-6.0	3.0-8.0	4.0-10.0	5.0-12.0
Axis	4	4	4	4
Screen display	10inch	10inch	10inch	10inch
feeding roller number	3 pairs	3 pairs	4pairs	4pairs
wire turning angle	0°~360°	0°~360°	0°~360°	0°~360°
lifting height	+20mm-20mm	+25mm-25mm	+25mm-25mm	+25mm-25mm
Feeding servo motor	3.0kw	3.0kw	4.0kw	5.5kw
Twisting servo motor	1.5kw	2.3kw	3.0kw	4.0kw
cutting servo motor	1.5kw	2.3kw	1.5kw	2.3kw
Up and down lift servo motor	cutting/lifting	/cutting/lifting	1.5kw	1.5kw
Bending accuracy	+/-0.3mm	+/-0.3mm	+/-0.5mm	+/-1.0mm
Feeding accuracy	+/-0.2mm	+/-0.2mm	+/-0.2mm	+/-0.3mm
Feeding speed	80mtrs/min	30ms/min	20 m/min	20m/min
machine size(cm)	230*100*160	240x100x160	280x100x160	320x100x160
machine weight(kg)	1300Kg	1400Kg	1600Kg	1800Kg

Dongguan Xinsheng Hardware Machinery Co.,Ltd

Zhongfeng industrial area, Niushan village, Dongcheng district,Dongguan city,China







Welcome your inquiry and come to visit our company!
