• Model NO.：GT-WB-80-4A
• Suitable for：Copper, Aluminum, Carbon Steel, Stainless Steel
• Type：Coiling Bending Machine
• Product Name：2D CNC Wire Bending Bender Machine
• Voltage：220,380,440V
• Feeding Roller Number：3 Pairs
• Wire Turning Angle：Unlimited
• Axis：4
• Wire Diameter：3-8mm
• Screen Display：10inch
• Feeding Servo Motor：3.0kw
• Twisting Servo Motor：2.3kw
• Cutting Servo Motor：2.3kw
• Bending Accuracy：+,-0.3mm
• Feeding Accuracy：+,-0.2mm
• Feeding Speed：30mtrs,Min
• Machine Size：250*100*160cm
• Weight：1400kg
• Transport Package：Standard Export Fumugated Wooden Case
• Specification：2500X1000X1600mm
• Trademark：WG
• Origin：China
• HS Code：846221900
• Production Capacity：1000 Sets Per Year

Basic Info.

Model NO. GT-WB-80-4A Suitable for Copper, Aluminum, Carbon Steel, Stainless Steel Type Coiling Bending Machine Product Name 2D CNC Wire Bending Bender Machine Voltage 220/380/440V Feeding Roller Number 3 Pairs Wire Turning Angle Unlimited Axis 4 Wire Diameter 3-8mm Screen Display 10inch Feeding Servo Motor 3.0kw Twisting Servo Motor 2.3kw Cutting Servo Motor 2.3kw Bending Accuracy +/-0.3mm Feeding Accuracy +/-0.2mm Feeding Speed 30mtrs/Min Machine Size 250*100*160cm Weight 1400kg Transport Package Standard Export Fumugated Wooden Case Specification 2500X1000X1600mm Trademark WG Origin China HS Code 846221900 Production Capacity 1000 Sets Per Year

Product Description

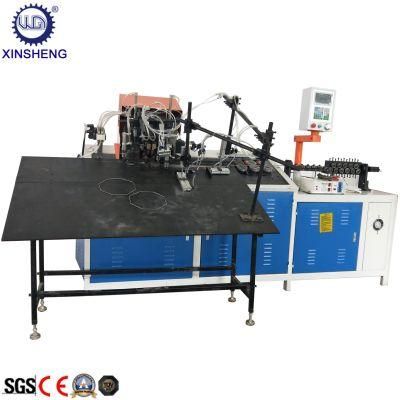

 Automatic 4Axis CNC 2D Wire Bending Manufacturer Bender Machine

Product Description
CNC wire bending machine is to expertly produce kinds of wire forms in 2D and 3D fully automatically.
It is suitable for wire size from 2.0mm up to 6.0mm.

Technical parameter of CNC Wire Bending Machine:

Model	GT-WB-60-4A	GT-WB-80-4A	GT-WB-100-4A	GT-WB-120-4A
Wire size(mm)	2.0-6.0	3.0-8.0	4.0-10.0	5.0-12.0
Axis	4	4	4	4
feeding roller number	3 pairs	3 pairs	3 pairs	3 pairs
wire turning angle	0-360°	0-360°	0-360°	0-360°
Feeding servo motor	3.0kw	3.0kw	4.0kw	5.5kw
Twisting servo motor	1.5kw	2.3kw	3.0kw	4.0kw
Turn head up and down servo motor	1.5kw	2.3kw	1.5kw	2.3kw
Bending accuracy	+/-0.3mm	+/-0.3mm	+/-0.5mm	+/-1.0mm
Feeding accuracy	+/-0.2mm	+/-0.2mm	+/-0.2mm	+/-0.3mm
Feeding speed	80 mtrs/min	30 mtrs/min	20 mtrs/min	20 mtrs/min
machine size(cm)	230*100*160	240x100x160	280x100x160	320x100x160
machine weight(kg)	1300.0	1400.0	1600.0	1800.0

Pls contact me for further information and you are cordially invitited to visit our factory at any your free time .

Skp:Jesusbaby2082



I will stay here waiting for you~

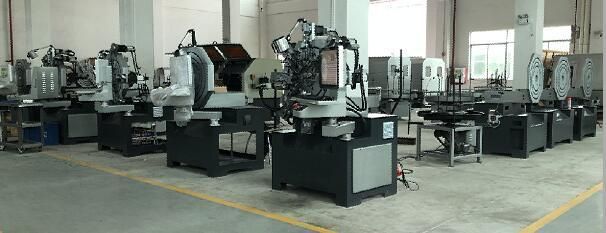

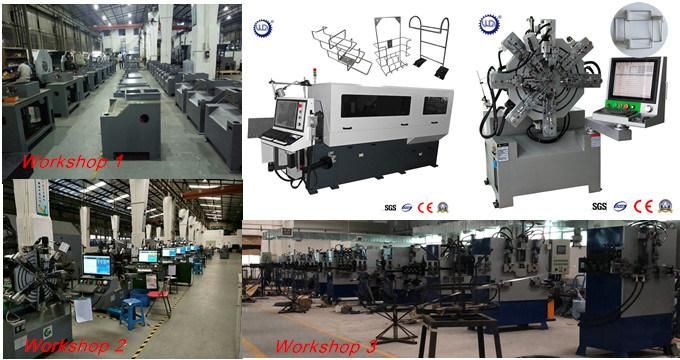

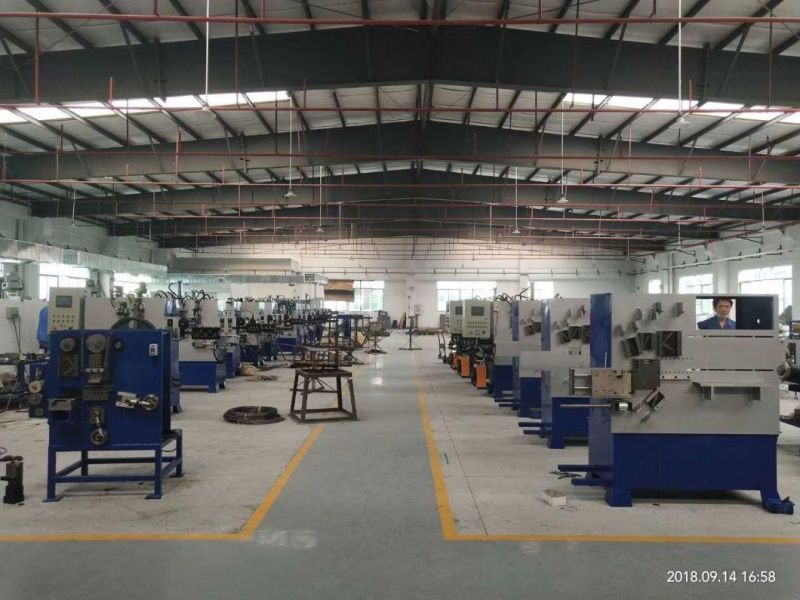

Workshop:
