Wellnit Split Frame Pipe Cold Cutting and Beveling Machine by Electric Oce-159
Zhejiang Wellnit Mechanical Technology Co., Ltd.- Waterproof Rating：IPX-8
- Warranty：1-year
- Certification：CE, ISO 9001:2008
- Condition：New
- Control：Semi-Automatic
- Application：Metal
Base Info
- Model NO.：OCE-159
- Power Source：Electric
- Layout：Horizontal
- Mounting Method：Split Od Mounted
- Rated Power：1.5-2.0kw
- Pipe Thickness：Less Than 30mm
- Delivery Detail：3-15days
- Working Range：φ50-159
- Rotation Speed：20r,Min
- Power Supply：220-240V,1pH 50-60Hz

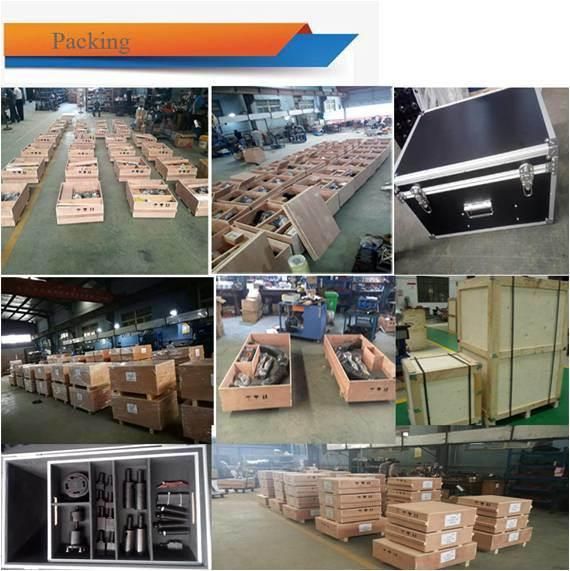

- Transport Package：Wooden Packing
- Specification：159
- Trademark：wellnit
- Origin：China
- HS Code：8461909000
- Production Capacity：10sets,Week
Description
(mm)(rpm) Light Heavy 89 25~89 ≤30 42 159 50~159 ≤30 20 168 60~168 ≤30 18 230 80~230 ≤30 15 275 125~275 ≤30 14 305 150~305 ≤30 ≤110 13 325 168~325 ≤30 ≤110 13 377 219~377 ≤30 ≤110 12 426 273~426 ≤30 ≤110 12 457 300~457 ≤30 ≤110 12 508 355~508 ≤30 ≤110 12 560 400~560 ≤30 ≤110 12 610 457~610 ≤30 ≤110 11 630 480~630 ≤30 ≤110 11 660 508~660 ≤30 ≤110 11 715 560~715 ≤30 ≤110 11 762 600~762 ≤30 ≤110 11 830 660~830 ≤30 ≤110 10 914 762~914 ≤30 ≤110 10 1066 914~1066 ≤30 ≤110 10 1230 1066~1230 ≤30 ≤110 10 1430 1230~1430 ≤30 ≤110 10

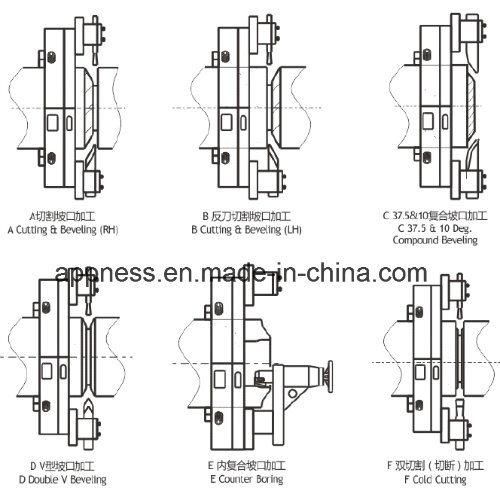

Processing Schematic
Axial & radial clearance
Shipping:
Loading Port: Shanghai, China.
Delivery terms: CIF, FOB C&F etc. based on Incoterms 2010.
Delivery time: 2 working days for the stock, 10 working days for the new, from the receipt of down payment and the actual delivery time depend on your order.
Other shipping terms can be negotiated.
More About Us:
Processing Schematic

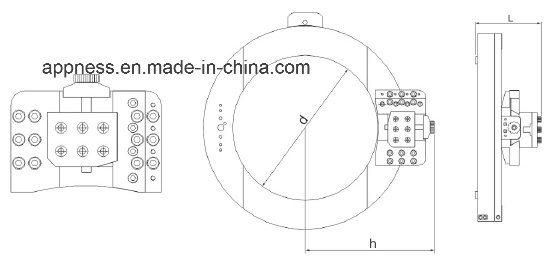

Axial & radial clearance
| d(mm) | h(mm) | L(mm) | |
| 89 | 90 | 132 | 159 |
| 159 | 160 | 217 | 171 |
| 168 | 170 | 227 | 171 |
| 230 | 232 | 253 | 171 |
| 275 | 280 | 275 | 171 |
| 305 | 308 | 290 | 171 |
| 325 | 330 | 300 | 171 |
| 377 | 380 | 328 | 171 |
| 426 | 430 | 351 | 172 |
| 457 | 460 | 367 | 172 |
| 508 | 510 | 396 | 181 |
| 560 | 560 | 420 | 182 |
| 610 | 612 | 445 | 182 |
| 630 | 632 | 454 | 182 |
| 660 | 670 | 475 | 182 |
| 715 | 715 | 495 | 185 |
| 762 | 765 | 520 | 187 |
| 830 | 830 | 555 | 187 |
| 914 | 915 | 592 | 194 |
| 1066 | 1070 | 619 | 194 |
| 1230 | 1235 | 777 | 207 |
| 1430 | 1438 | 877 | 220 |
