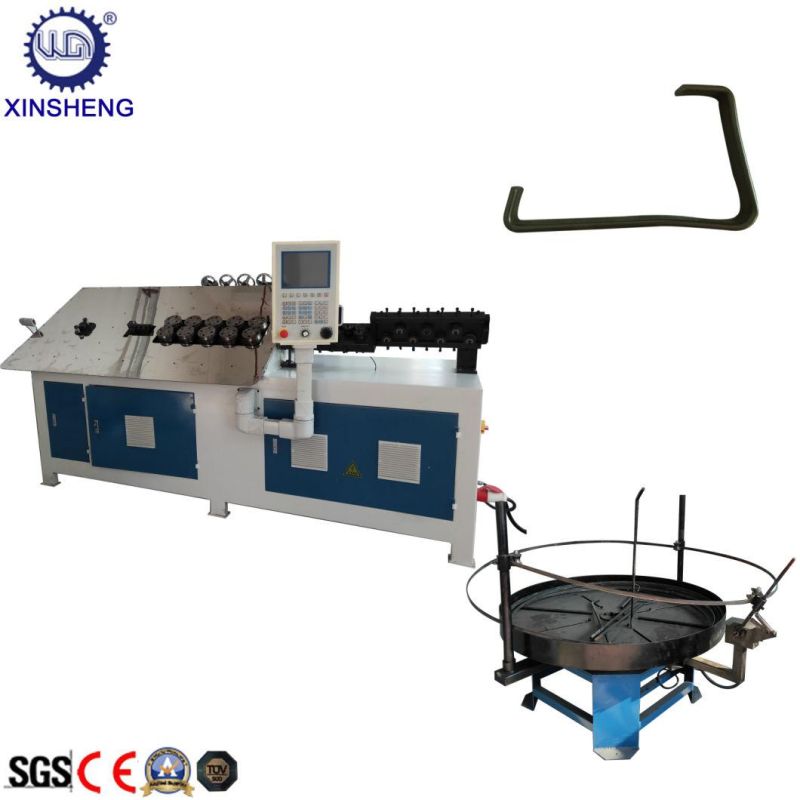

2D CNC Wire Bending Machine with High Presicion
Dongguan Xinsheng Hardware Machinery Co., Ltd.- Waterproof Rating：IPX-6
- Warranty：2-year
- Condition：New
- Certification：ISO 9001:2008, CE
- Automation：Automatic
- Suitable for：Copper, Aluminum, Carbon Steel, Stainless Steel
Base Info
- Model NO.：GT-WB-80-4A
- Type：Coiling Bending Machine
- Product Name：2D CNC Wire Bending Bender Machine
- Voltage：220,380,440V
- Feeding Roller Number：3 Pairs
- Wire Turning Angle：Unlimited
- Axis：4
- Wire Diameter：2-6mm
- Screen Display：10inch
- Feeding Servo Motor：3.0kw
- Twisting Servo Motor：2.3kw
- Cutting Servo Motor：2.3kw
- Bending Accuracy：+,-0.3mm
- Feeding Accuracy：+,-0.2mm
- Feeding Speed：30mtrs,Min
- Machine Size：250*100*160cm
- Weight：1400kg
- Transport Package：Standard Export Fumugated Wooden Case
- Specification：2500X1000X1600mm
- Trademark：WG
- Origin：China
- HS Code：846221900
- Production Capacity：1000 Sets Per Year
Description
Basic Info.
Model NO. GT-WB-80-4A Type Coiling Bending Machine Product Name 2D CNC Wire Bending Bender Machine Voltage 220/380/440V Feeding Roller Number 3 Pairs Wire Turning Angle Unlimited Axis 4 Wire Diameter 2-6mm Screen Display 10inch Feeding Servo Motor 3.0kw Twisting Servo Motor 2.3kw Cutting Servo Motor 2.3kw Bending Accuracy +/-0.3mm Feeding Accuracy +/-0.2mm Feeding Speed 30mtrs/Min Machine Size 250*100*160cm Weight 1400kg Transport Package Standard Export Fumugated Wooden Case Specification 2500X1000X1600mm Trademark WG Origin China HS Code 846221900 Production Capacity 1000 Sets Per YearProduct Description
Automatic 4Axis CNC 2D Wire Bending Manufacturer Bender MachineProduct Description
CNC wire bending machine is to expertly produce kinds of wire forms in 2D and 3D fully automatically.
It is suitable for wire size from 2.0mm up to 6.0mm.
Technical parameter of CNC Wire Bending Machine:
| Model | GT-WB-60-4A | GT-WB-80-4A | GT-WB-100-4A | GT-WB-120-4A |
| Wire size(mm) | 2.0-6.0 | 3.0-8.0 | 4.0-10.0 | 5.0-12.0 |
| Axis | 4 | 4 | 4 | 4 |
| feeding roller number | 3 pairs | 3 pairs | 3 pairs | 3 pairs |
| wire turning angle | 0-360° | 0-360° | 0-360° | 0-360° |
| Feeding servo motor | 3.0kw | 3.0kw | 4.0kw | 5.5kw |
| Twisting servo motor | 1.5kw | 2.3kw | 3.0kw | 4.0kw |
| Turn head up and down servo motor | 1.5kw | 2.3kw | 1.5kw | 2.3kw |
| Bending accuracy | +/-0.3mm | +/-0.3mm | +/-0.5mm | +/-1.0mm |
| Feeding accuracy | +/-0.2mm | +/-0.2mm | +/-0.2mm | +/-0.3mm |
| Feeding speed | 80 mtrs/min | 30 mtrs/min | 20 mtrs/min | 20 mtrs/min |
| machine size(cm) | 230*100*160 | 240x100x160 | 280x100x160 | 320x100x160 |
| machine weight(kg) | 1300.0 | 1400.0 | 1600.0 | 1800.0 |
Pls contact me for further information and you are cordially invitited to visit our factory at any your free time .
Skp:Jesusbaby2082
I will stay here waiting for you~

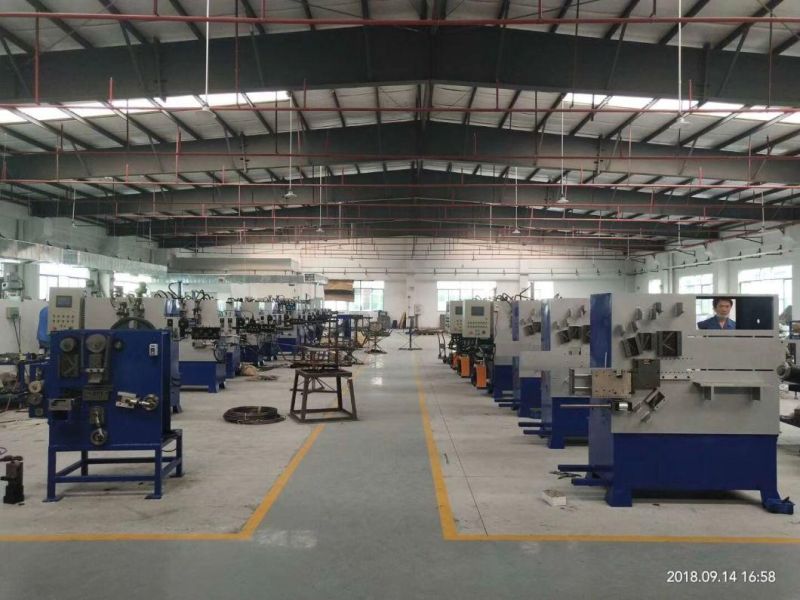

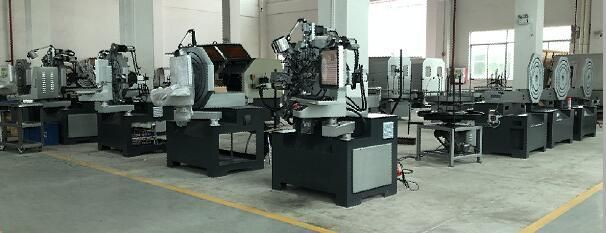

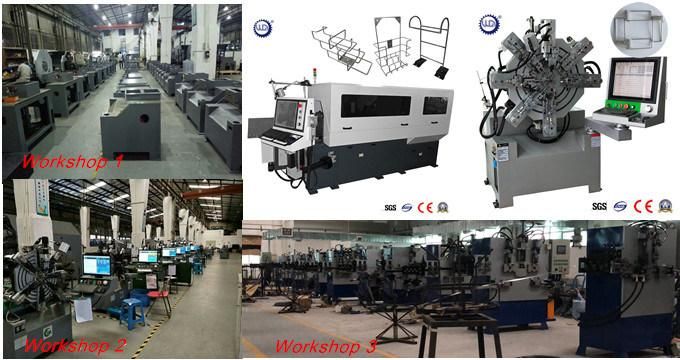

Workshop:
Main Products:
