Wellnit Split Frame Pipe Cold Cutting and Beveling Machine by Electric Oce-275
Zhejiang Wellnit Mechanical Technology Co., Ltd.- Waterproof Rating：IPX-8
- Warranty：1-year
- Certification：CE, ISO 9001:2008
- Condition：New
- Control：Semi-Automatic
- Application：Metal
Base Info
- Model NO.：Oce-275
- Power Source：Electric
- Layout：Horizontal
- Mounting Method：Split Od Mounted
- Rated Power：1.5-2.0kw
- Pipe Thickness：Less Than 30mm
- Delivery Detail：3-15days
- Working Range：φ125-275
- Rotation Speed：14r,Min
- Power Supply：220-240V,1pH 50-60Hz
- Transport Package：Wooden Packing
- Specification：230
- Trademark：wellnit
- Origin：China
- HS Code：8461909000
- Production Capacity：10sets,Week
Description
(mm)(rpm) Light Heavy 89 25~89 ≤30 42 159 50~159 ≤30 20 168 60~168 ≤30 18 230 80~230 ≤30 15 275 125~275 ≤30 14 305 150~305 ≤30 ≤110 13 325 168~325 ≤30 ≤110 13 377 219~377 ≤30 ≤110 12 426 273~426 ≤30 ≤110 12 457 300~457 ≤30 ≤110 12 508 355~508 ≤30 ≤110 12 560 400~560 ≤30 ≤110 12 610 457~610 ≤30 ≤110 11 630 480~630 ≤30 ≤110 11 660 508~660 ≤30 ≤110 11 715 560~715 ≤30 ≤110 11 762 600~762 ≤30 ≤110 11 830 660~830 ≤30 ≤110 10 914 762~914 ≤30 ≤110 10 1066 914~1066 ≤30 ≤110 10 1230 1066~1230 ≤30 ≤110 10 1430 1230~1430 ≤30 ≤110 10

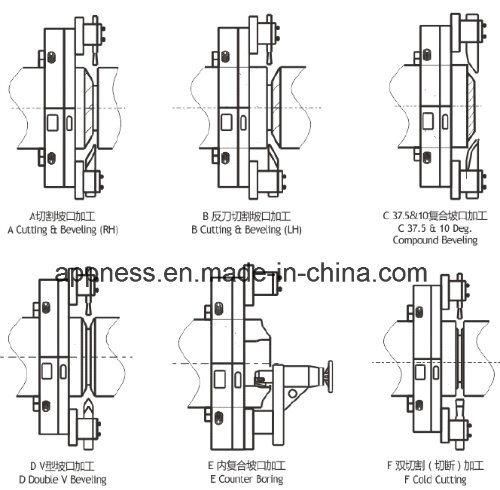

Processing Schematic

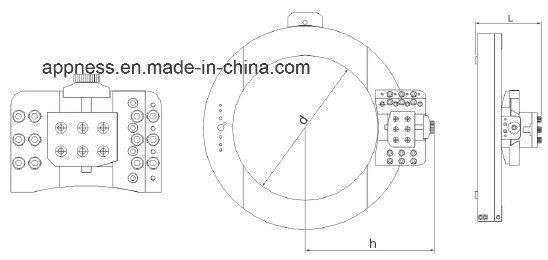

Axial & radial clearance
Spec. d(mm) h(mm) L(mm) 89 90 132 159 159 160 217 171 168 170 227 171 230 232 253 171 275 280 275 171 305 308 290 171 325 330 300 171 377 380 328 171 426 430 351 172 457 460 367 172 508 510 396 181 560 560 420 182 610 612 445 182 630 632 454 182 660 670 475 182 715 715 495 185 762 765 520 187 830 830 555 187 914 915 592 194 1066 1070 619 194 1230 1235 777 207 1430 1438 877 220
Shipping:
Loading Port: Shanghai, China.
Delivery terms: CIF, FOB C&F etc. based on Incoterms 2010.
Delivery time: 2 working days for the stock, 10 working days for the new, from the receipt of down payment and the actual delivery time depend on your order.
Other shipping terms can be negotiated.
