• Model NO.：GM-SB-114CNC
• Type：Pipe and Tube Bending Machine
• Transport Package：Iron Frame
• Specification：CE
• Trademark：GMACC
• Origin：China
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-SB-114CNC Type Pipe and Tube Bending Machine Transport Package Iron Frame Specification CE Trademark GMACC Origin China Production Capacity 5000PCS/Year

Product Description

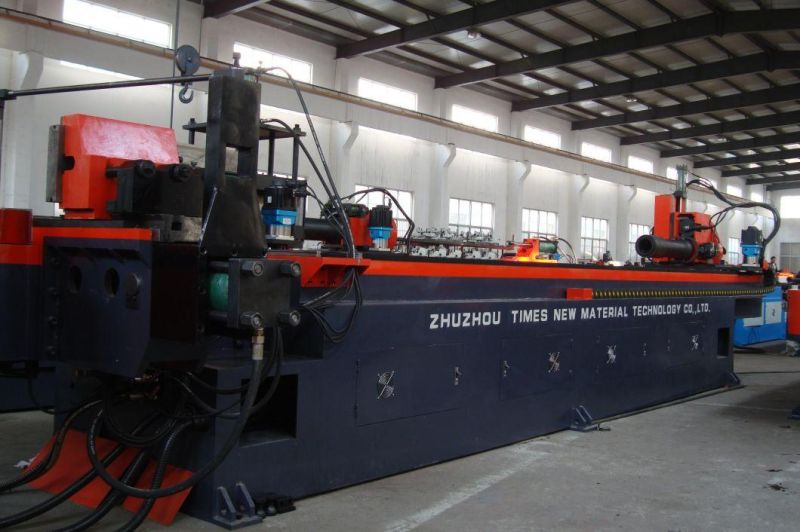

GM-114CNC automatically bend in the same machine suitable for continuous automatic workpiece complete different direction, a number of different angles of three-dimensional workpieces, using the touch-screen machine operators and industrial computer control procedures, is an efficient, economical automatic pipe bender.

1 Construction Machine
The European plane bend light machine reliability, with Asian features similar mechanical products from manufacturers; Bed adopt a plate welding, casting steel form. The use of imported hydraulic system control; Electronic imports by servo motors, industrial computers and touch-screen operation panel.

2 Main performance
Using touch-screen operation panel and PLC control system, the Chinese mode menu is simple, accurate, fast, complete functions, a high degree of automation features, and have not lost power procedures and the characteristics of the workpiece parameters.

Name unit GM-114CNC
Max. Siphon Capacity mm 114*5
Max. Bending Radius Region mm R≤ 500
Max. Bending Angle Region ° 185
Max. Through Effective Distance mm 5100
Bending Precision ° ± 0.10
Bending Speed r/min 0~3
Feeding Precision mm ± 0.10
Feeding Speed mm/sec 600
Turn Pipe Precision ° ± 0.10
Turn Pipe Speed deg/sec 160
Oil Pump Displacement L 31
General Power KW 11
Max. Pressure Map 14
General Length*Width*Height mm 7500*1600*1400
General Weight T 5.5

A) As a welding pieces of body, parts of body and die components are used CNC machining center processing completed to ensure the accuracy of machine parts.
B) linear guide way, made in Taiwan ABBA
Hydraulic system, have adopted a combination of import items
Fuzhou, Taiwan's sole hydraulic motor-source
Hydraulic Pump, made in Japan
Hydraulic Elements, made in USA BEST
Oil way board, made in Taiwan
Cylinder, made in Taiwan (oil seal and seal are in Germany or the United
States)
Double-layer laminated steel tubing used legitimately imported Taiwan Datong
C) Electronic parts
Touch screen made in Japan Mitsubishi
PLC made in Japan Mitsubishi
Servo motor made in Japan Mitsubishi
Automatic encoder, button switch, contactor with Taiwan Shihlin
