• Model NO.：QC12K 8X3200 E200S
• Hydraulic Valve：Rexroth
• Pump：Sunny
• Pipe Connector：Emb
• Footswitch：Karcon
• Backgauge Motor：Jiahuang
• Ball Scerw：Hiwin
• Transport Package：Plastic Cover
• Specification：CE
• Trademark：ZYMT
• Origin：China
• HS Code：8462299000
• Production Capacity：1500 Sets,Year

Basic Info.

Model NO. QC12K 8X3200 E200S Hydraulic Valve Rexroth Pump Sunny Pipe Connector Emb Footswitch Karcon Backgauge Motor Jiahuang Ball Scerw Hiwin Transport Package Plastic Cover Specification CE Trademark ZYMT Origin China HS Code 8462299000 Production Capacity 1500 Sets/Year

Product Description

Hydraulic Shearing Machine QC12Y-8X3200 E200S:

Details:
Cutting thickness: 8mm;
Cutting length 3200 mm;
Cutting angle: 1 deg; 30'
RAM travel: 8 times/minute
Back gauge travel: 500mm
Motor: 7.5 KW

1. The mainframe is fitted with numeric-control system special for shearing machines;
2. The position of rear stopper is displayed in a real-time manner;
3. Multi-step programming function is available and the rear stopper is able for automatic operation and continuous positioning, to achieve an automatic adjustment for position of rear stopper;
4. It is provided with counting function for shearing, to display the shearing numbers in a real-time manner, able for power-failure memory of position of rear stopper, procedures, and parameters;

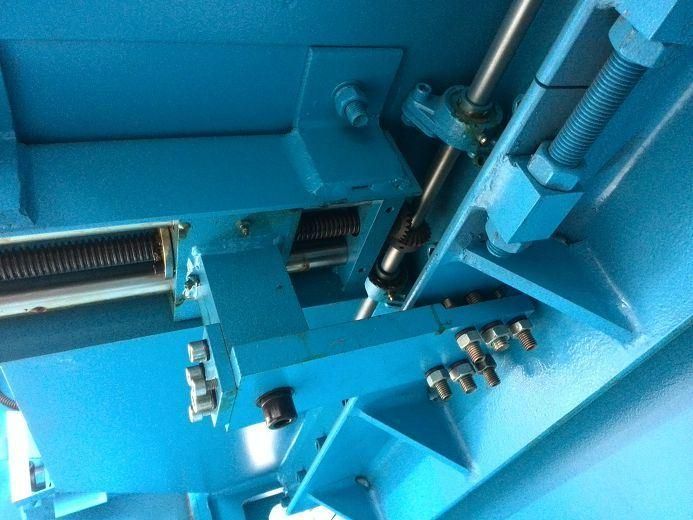

5. Imported ball bearing lead screw and linear guide rail are used, to ensure the positioning precision, so that the processing precision of machine is higher;
6. Ball screw and line guide rail as optional for guarantee higher precision;
7. cNC controller: China E200, Holland DELEM DAC310; [ Guarantee the machine precision in 0.15mm]




Our service.
1:established over 100 sales and service outlets in the country's 29 provinces, municipalities and also the establishment of foreign 72 sales points, machine sales, spare parts supply, maintenance, technical advice and a range of services for users at hone and abroad.
2:we have a specialized group in charge of the whole business process. pre-sales to be a staff, the sales is a friend, and after-sales we are partners.

Packing&Delivery:

With more than 10 years exporting experience, we are so skilled for loading containers and packing the machines in container for safety. Each machine use min. 6mm dimeter steel rope to fix the four angles with the container, to avoid the machinery equipment move in the container.

Certifications:
