• Model NO.：E200
• Trademark：ZYMT
• Origin：China
• HS Code：8462299000
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. E200 Trademark ZYMT Origin China HS Code 8462299000 Production Capacity 3000 Sets/Year

Product Description

NC Two Axes Hydraulic Press Brake/Bending Machine with E200:
1. Output 150 sets/month
2. High quality
3. 1 year warranty
4. 35 days delivery

Details:
Control system: E200
Hydraulic system: Omega
Ball screw, line guide: Taiwan HIWIN
Pipe connector: Gemeny EMB
Seal rings: Janpanese NOK
Main electrics: Germany TE/OMROM
Foot Switch: South Korea Karcon

Descriptions:
1. Hydraulics with torsion bar;
2. Intergrated hydraulic system, upper transmission, pressure control for adjustment of tonnage;
3. Segmented upper punch, multi-V lower die;
4. Oblique steel solid deflection compensation device is adopted for upper punch;

5. International standard electrics and switches;
6. 2 axis(Y-upper RAM, X-back gauge) NC controllers from China E20, E200; DELEM DA41; Cybelec DNC400; Italy Maper HT072;
7. E10 Digital display system display the working position of X, Y;
8. Main operation are by the NC controllers or display system;
9. Ball screw and line guide rail as optional choices for guarantee the higher precision;

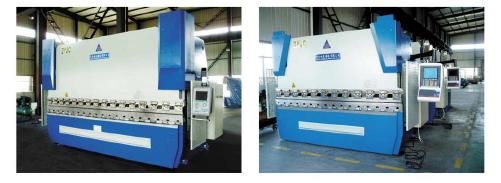

Pictures:

Parameters:

Model (WC67Y)	Nominal Pressure (kN)	Length of table (mm)	Distance Between Housing (mm)	Throat Depth (mm)	Stroke (mm)	Open Hight (mm)	Main Motor (kW)	Dimensions (L x W x H) (mm)	weight (T)
40/2000	400	2000	1600	200	110	335	4	2545x1510x2050	3
40/2500	400	2500	2000	200	110	335	4	2950x1510x2080	3.5
63/2000	630	2000	1600	250	110	350	5.5	2555x1600x2130	3.8
63/2500	630	2500	2000	250	110	350	5.5	2960x1600x2180	4.2
63/3200	630	3200	2600	250	110	350	5.5	3740x1600x2230	5.2
100/2500	1000	2500	2000	350	150	400	7.5	2980x1650x2330	6.3
100/3200	1000	3200	2600	350	150	400	7.5	3740x1650x2355	7
100/4000	1000	4000	3200	350	150	400	7.5	4550x1650x2450	8.8
100/5000	1000	5000	4000	350	150	400	7.5	5100x1500x2650	11.8
125/2500	1250	2500	2000	350	150	410	7.5	3980x1650x2370	7.5
125/3200	1250	3200	2600	350	150	410	7.5	3750x1650x2450	8.2
125/4000	1250	4000	3200	350	150	410	7.5	4550x1650x2470	9
125/5000	1250	5000	4000	350	150	410	7.5	5100x1500x2795	11.5
125/6000	1250	6000	4500	350	150	410	7.5	6100x1500x2895	14
160/2500	1600	2500	2000	350	150	425	11	2980x1715x2410	8.5
160/3200	1600	3200	2550	350	150	425	11	3750x1715x2450	11
160/4000	1600	4000	3200	350	190	450	11	4550x1715x2730	12
160/5000	1600	5000	4000	350	190	450	11	5100x1570x2900	15.5
160/6000	1600	6000	4500	350	190	450	11	6100x1570x3010	19
200/3200	2000	3200	2600	350	240	460	11	3750x1815x2715	13
200/4000	2000	4000	3200	350	240	460	11	4550x1815x2850	14
200/5000	2000	5000	3800	350	240	460	11	5100x1715x3020	18.5
200/6000	2000	6000	4500	350	240	460	11	6100x1715x3120	21
250/3200	2500	3200	2600	400	240	525	11	3750x2010x2850	15.5
250/4000	2500	4000	3200	400	240	525	11	4550x2010x3010	17
250/5000	2500	5000	3800	400	240	525	11	5100x1890x3190	21.5
250/6000	2500	6000	4500	400	240	525	11	6100x1890x3350	28
300/3200	3000	3200	2600	400	250	545	15	3740x2100x3235	19.5
300/4000	3000	4000	3200	400	250	545	15	4340x2100x3300	22
300/5000	3000	5000	3800	400	250	545	15	5100x2100x3430	26
300/6000	3000	6000	4500	400	250	545	15	6100x2100x3490	29
