• Model NO.：GM-SB-50CNC
• Type：Pipe and Tube Bending Machine
• Transport Package：Iron Frame
• Specification：GM-50CNC-2A-1S
• Trademark：GMACC
• Origin：China
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-SB-50CNC Type Pipe and Tube Bending Machine Transport Package Iron Frame Specification GM-50CNC-2A-1S Trademark GMACC Origin China Production Capacity 5000PCS/Year

Product Description

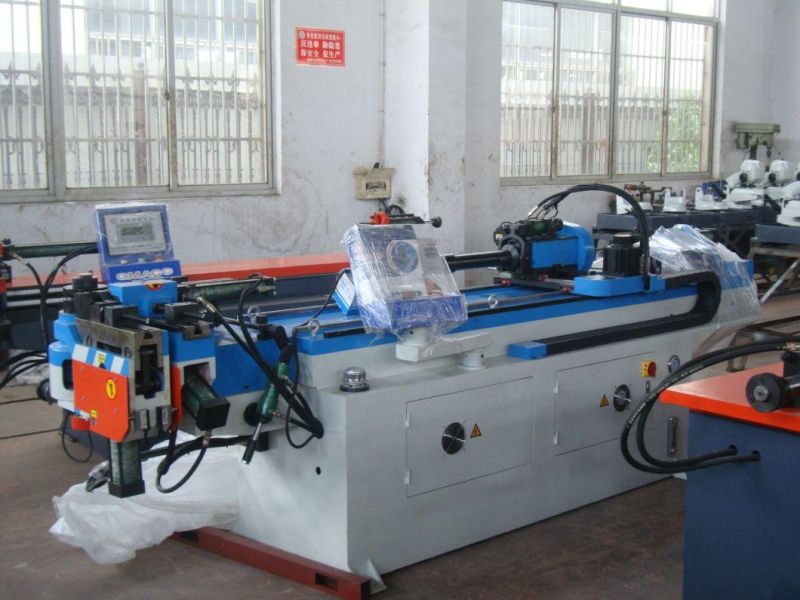

SB-CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order.

Y, B, C three coordinatesofmotions under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending springback compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection.

Pipe bending(C axis), pipe rotating (B axis), and pipe feeding(Y axis) are all drove by closed ring servomotor. Advanced technology, high automation reliability, integrated design all make CNC pipe bending machine the first class pipe processing machine in the world.

Name	Unit	Parameter
Max. Bending Capacity	mm	50*2
Bending Radius Range	mm	20-250
Max. Bending Angle	°	190°
Bending Speed	° /sec	2000
Turning Speed	° /sec	45
Feeding Speed	mm/sec	200
Bending Precision	°	1000
Turning Precision	°	± 0.10
Feeding Precision	mm	± 0.10
Turning Servomotor Power	kW	± 0.10
Feeding Servomotor Power	kW	0.75
Though Effective Distance	mm	1
System Motor Power	kW	5.5
Max. Pressure	Kg/cm	17
Oil Pump Delivery Volume	L	16
L*W*H (Packaging Dimension)	mm	4000*800*1300
Weight	T	2.5
