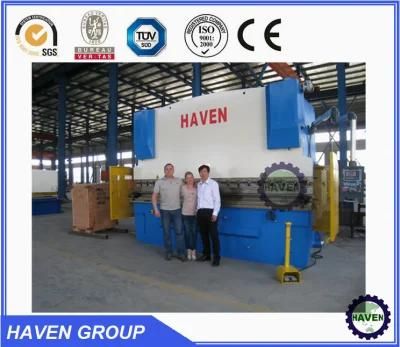

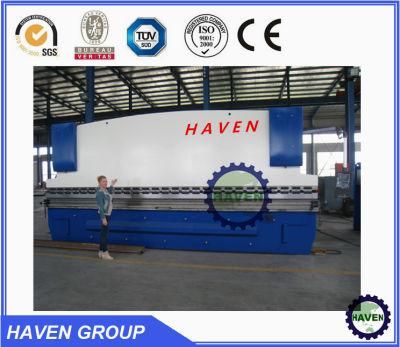

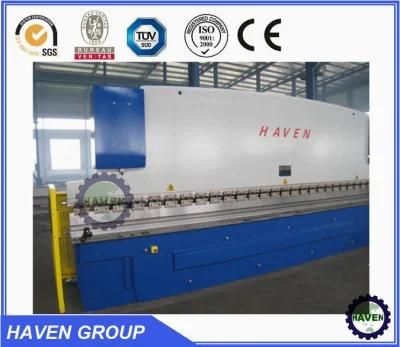

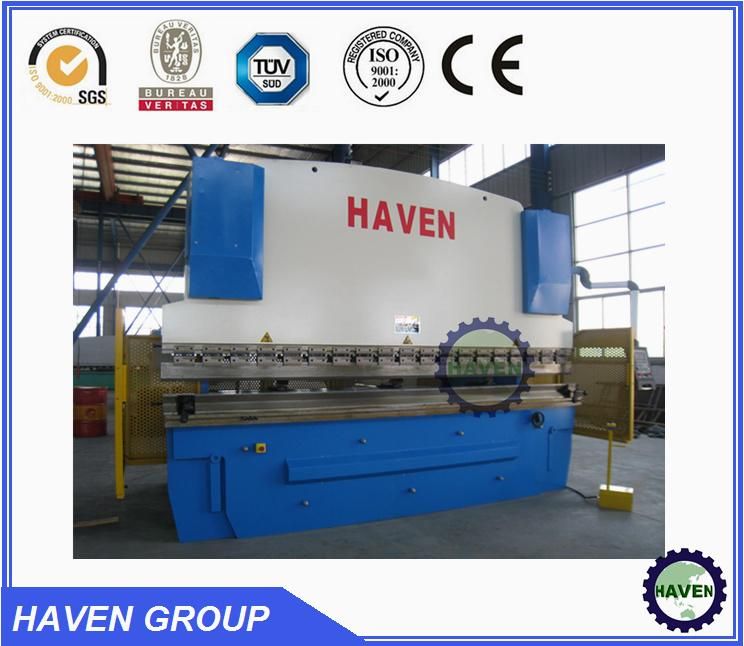

WC67Y-250X4000 Hydraulic Stainless Metal and Sheet Plate Bendig Machine
Shaanxi HAVEN Equipment Co., Ltd.- Warranty：1-year
- Condition：New
- Certification：ISO 9001:2000, CE
- Automation：Semi-Automatic
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
- Type：Hydraulic Bending Machine
Base Info
- Model NO.：WC67Y-250x4000
- Main Motor：20kw
- Nominal pressure (KN)：2500KN
- Working width (mm)：4000mm
- RAM stroke (mm)：200
- Transport Package：Steel Pallet
- Specification：Force 250t, Length 4000mm
- Trademark：HAVEN
- Origin：China
- HS Code：84622990
- Production Capacity：80units,Month
Description
Basic Info.
Model NO. WC67Y-250x4000 Main Motor 20kw Nominal pressure (KN) 2500KN Working width (mm) 4000mm RAM stroke (mm) 200 Transport Package Steel Pallet Specification Force 250t, Length 4000mm Trademark HAVEN Origin China HS Code 84622990 Production Capacity 80units/MonthProduct Description

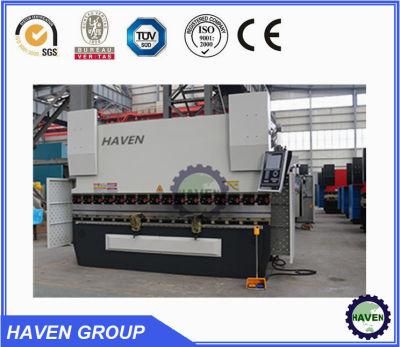

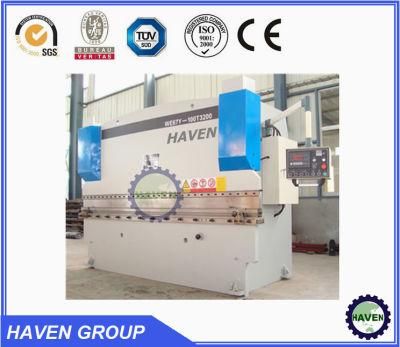

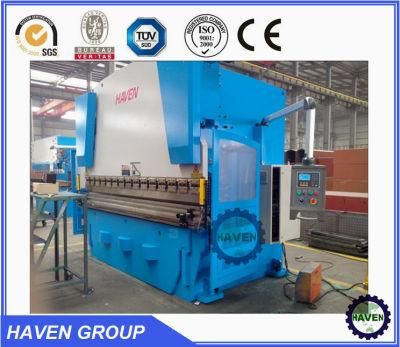

WC67Y-250X4000 Hydraulic Stainless metal and sheet plate Bendig Machine

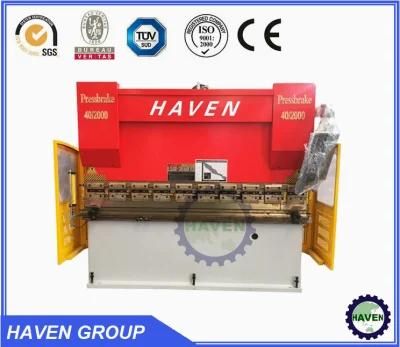

| Specification | 40 2000 | 63 2500 | 80 2600 | 80 3200 | 100 2500 | 100 3200 | 125 3200 | 125 4000 | 160 3200 | 200 3200 | 250 3200 | 300 3200 | 350 3200 |
| Nominal pressure (KN) | 400 | 630 | 800 | 800 | 100 | 1000 | 1250 | 1250 | 1600 | 2000 | 2500 | 3000 | 3500 |
| Working width (mm) | 2000 | 2500 | 2600 | 3200 | 2500 | 3200 | 3200 | 4000 | 3200 | 3200 | 3200 | 3200 | 3200 |
| Ram stroke (mm) | 100 | 100 | 100 | 100 | 120 | 120 | 120 | 120 | 200 | 200 | 200 | 250 | 250 |
| Stroke adjustment (mm) | 80 | 80 | 80 | 80 | 100 | 100 | 100 | 100 | 160 | 160 | 160 | 300 | 300 |
| Max. Stroke number (/min) | 11 | 10 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 7 | 7 | 6 | 6 |
| Motor power (k w) | 3 | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 11 | 11 | 15 | 20 | 22 | 22 |
| Net weight ( t ) ( about) | 2.6 | 4.5 | 5.5 | 6.5 | 6.9 | 8.2 | 8.7 | 9.2 | 10.5 | 13.5 | 15.5 | 21 | 23 |
