• Model NO.：2-WE67K-500X7000
• Working force：1000kn
• Length of table：2X7000mm
• distance between frames：5600mm
• Transport Package：Steel Pallet
• Specification：Total 10000t, 14000mm
• Trademark：HAVEN
• Origin：China
• HS Code：8459
• Production Capacity：30 Units,Month

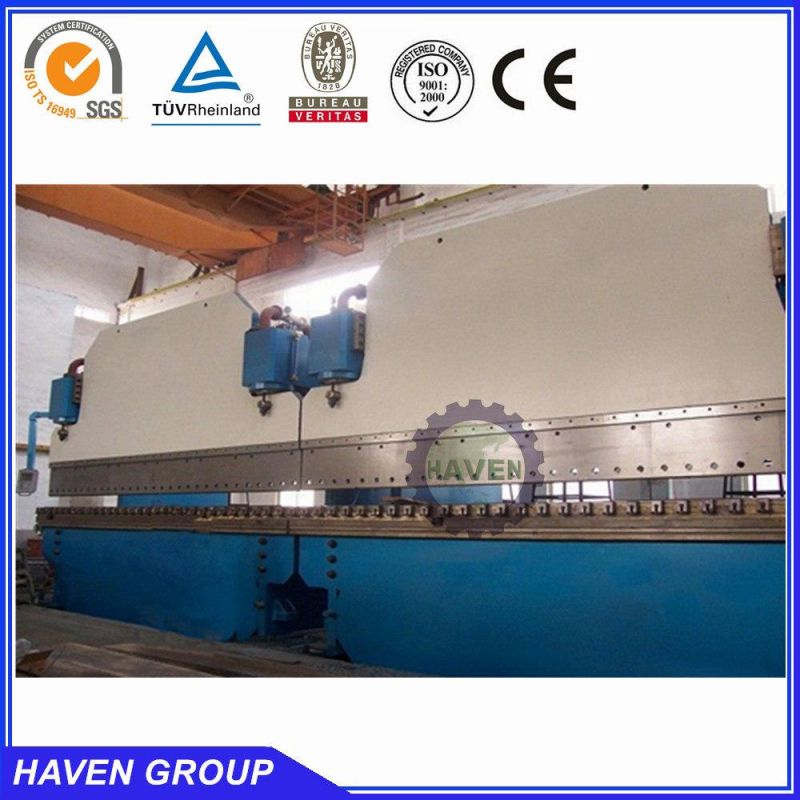

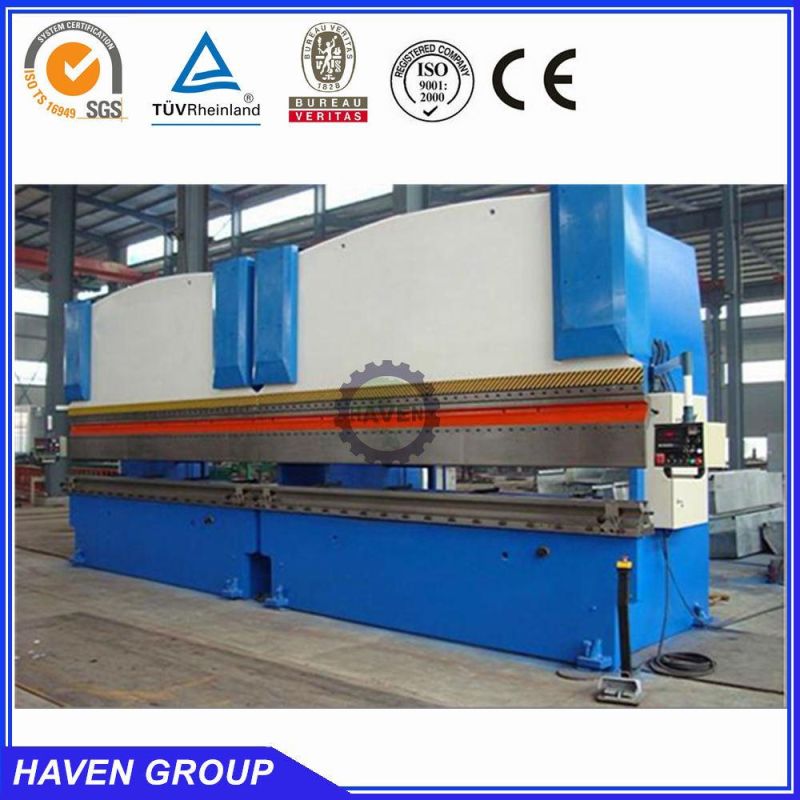

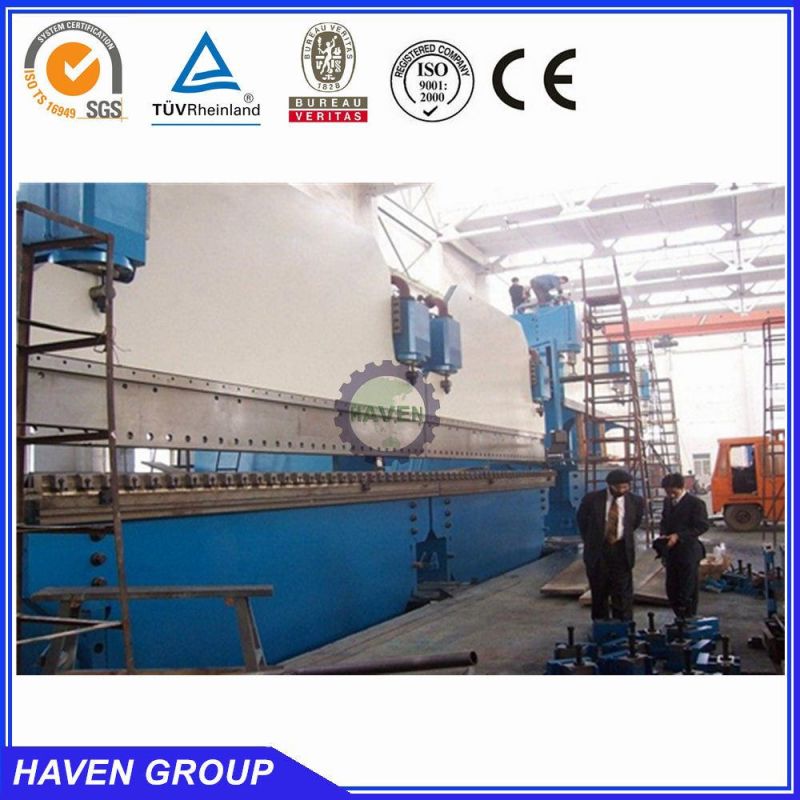

TypeMult-machine Tandem Hydraulic CNC electro-hydraulic synchroWorking force2X500TonLength of table2X7000mmdistance between frames5600mmThroat depth1000mmOpen height1000mmStroke320mmWorking
SpeedUnload70mm /sWorking7mm /sReturn60mm /sMain motor2x45kwCNC systemType: DELEM DA52
Delem Co., Netherlands
2 axis(Y1,Y2)
+Automatic crowning systemToolWith 1 punching and 1 multi V block bottom die for making octagonal taper type pole.
With front and back sheet supporting standSeal in the cylindersNOK, made in JapanHydraulic componentsBOSCH-Rexroth - , GermanyHydraulic pumpNitch , Japan, or BOSCH , Germany,Linear Raster displayer sensorHEIDENHAIN, GERMANYMain Electric Elements in cabinetSchneider  Gross weight2x 68000kg(net 62000kg)Overall size(mm) LxWxH2x7250x5170x6100Packing:With plastic cover
The machine should be disassembled during transportation. Our engineer should go to customer to assemble and adjust it.
Transportation:
