• Model NO.：WC67K-160x3200
• Transport Package：Steel Pallet
• Specification：Max.Pressure as 1600kn, Max Width: 3200mm
• Trademark：HAVEN
• Origin：China
• HS Code：8466
• Production Capacity：50 Units,Week

Basic Info.

Model NO. WC67K-160x3200 Transport Package Steel Pallet Specification Max.Pressure as 1600kn, Max Width: 3200mm Trademark HAVEN Origin China HS Code 8466 Production Capacity 50 Units/Week

Product Description

WC67Y Hydraulic Press Brake, Hydraulic Press Brake Machine, Plate Bending Machine




Standard Facilities:
 1. ESTUN E21 NC control + Frequency inverter
 2.Front support arms
3. Motorized stroke adjustment
4. T slot on both front side and back side of the worktable
5.  OMAGE Hydraulic valve
6.  SUNNY hydraulic pump
7.  Siemens famous brand motor
8.  Siemens or Schneider Electric parts
9.  Machine power is turn-off when the electric cabinet door opened

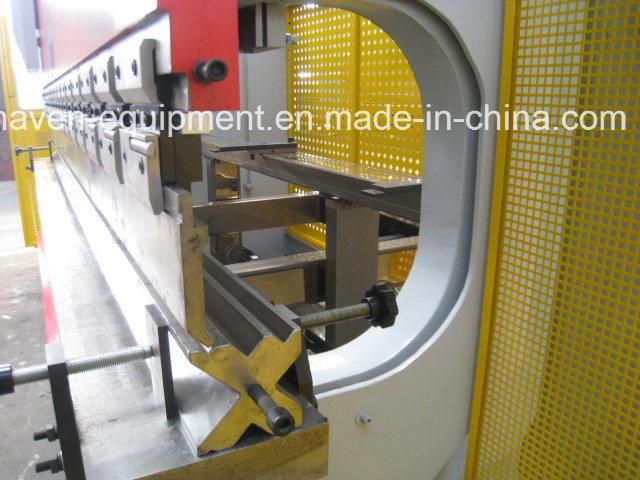

10. Upper clamps with Anti Wedges
11. Hydraulic and Electrical overload protection
12. Side safety guard and Full height back safety guard
13. With standard Top punch and Bottom Die
14. Back gauge beam is made of profile steel and liner guide
15. Back gauge is supported with ball screw and polished steel round bar with 0,05mm accuracy
2. Estun E21 NC Press Brake Control system:
1. Monochrome LCD Box Panel.
2. Integral factor programmable freely
3. Automatic positioning control
5.Internal time relay
6.Ram stroke counter
3. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement
4. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
5. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
6. Main features
1. The whole machine is in sheet plate welded structure, which internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.
2. Double hydraulic oil cylinder is applied for upper transmission, provided with mechanical limit stopper and synchronous torsion bar, stable and reliable operation, as well as high precision.
3. Electrical adjustment and manual fine-tuning adjustment mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital display device, easy and quick in use.
4. Upper clamp is fitted with compensation device.
5. Worktable mechanical compensation or hydraulic compensation device is optional.

Model	Nominal Pressure (kN)	Length of table (mm)	Distance Between Housing (mm)	Throat Depth (mm)	Stroke (mm)	Open High (mm)	Main Motor (kW)	Dimensions (L x W x H) (mm)	weight (t)
40/2000	400	2000	1600	200	100	335	4	2100x1110x1990	2.8
40/2500	400	2500	2000	200	100	335	4	2600x1110x1990	3.5
63/2000	630	2000	1600	250	100	335	5.5	2100x1285x2185	3.8
63/2500	630	2500	2000	250	100	335	5.5	2600x1285x2185	4.2
63/3200	630	3200	2600	250	100	335	5.5	3300x1290x2300	5.2
100/2500	1000	2500	2000	320	100	335	7.5	2600x1470x2510	6.3
100/3200	1000	3200	2600	320	100	335	7.5	3300x1470x2520	7
100/4000	1000	4000	3200	320	150	400	7.5	4100x1470x2520	8.8
100/5000	1000	5000	4000	320	150	400	7.5	5100x1470x2750	11.8
125/2500	1250	2500	2000	320	150	400	7.5	2600x1470x2510	7.5
125/3200	1250	3200	2600	320	150	400	7.5	3300x1470x2520	8.2
125/4000	1250	4000	3200	320	150	400	7.5	4100x1470x2520	9
125/5000	1250	5000	4000	320	150	400	7.5	5100x1470x2800	12.5
125/6000	1250	6000	4500	320	150	400	7.5	6100x1700x2700/235	16
160/2500	1600	2500	2000	320	150	450	11	2600x1500x2530	8.5
160/3200	1600	3200	2600	320	150	450	11	3300x1500x2560	10
160/4000	1600	4000	3200	320	190	450	11	4100x1500x2730	12
160/5000	1600	5000	4000	320	190	450	11	5100x1500x2960	15.5
160/6000	1600	6000	4500	320	190	450	11	6100x1790x2725/235	19
200/3200	2000	3200	2600	320	240	460	11	3300x1700x2560	13
200/4000	2000	4000	3200	320	240	460	11	4100x1700x2830	14
200/5000	2000	5000	3800	320	240	460	11	5300x1930x3000/250	20
200/600	2000	6000	4500	320	240	460	11	6300x2000x3100/250	25
250/3200	2500	3200	2600	400	240	525	11	3300x1850x3000	17
250/4000	2500	4000	3200	400	240	525	11	4100x1850x3100	18
250/5000	2500	5000	3800	400	240	525	11	5300x1850x3100/300	25
250/6000	2500	6000	4500	400	240	525	11	6300x2000x3170/540	32
300/3200	3000	3200	2600	400	250	555	15	3300x2050x3200	21
300/4000	3000	4000	3200	400	250	555	15	4300x2050x3300	24
300/5000	3000	5000	3800	400	250	555	15	5300x2300x3500/540	29
300/6000	3000	6000	4500	400	250	555	15	6300x2300x3865/690	35
