• Model NO.：GM-SB-38NCB
• Type：Pipe and Tube Bending Machine
• Machine Type：Hydraulic
• PLC&Touch Screen：Mitsubishi
• Bending Capacity：O. D3-38mm
• Bending Driven：Cylinder
• Company：Sino-Italian Joint Venture
• Transport Package：Iron Frame
• Specification：3200*700*1300mm
• Trademark：GMACC
• Origin：Made in China
• HS Code：8462299000
• Production Capacity：50 PCS,Month

Basic Info.

Model NO. GM-SB-38NCB Type Pipe and Tube Bending Machine Machine Type Hydraulic PLC&Touch Screen Mitsubishi Bending Capacity O. D3-38mm Bending Driven Cylinder Company Sino-Italian Joint Venture Transport Package Iron Frame Specification 3200*700*1300mm Trademark GMACC Origin Made in China HS Code 8462299000 Production Capacity 50 PCS/Month

Product Description

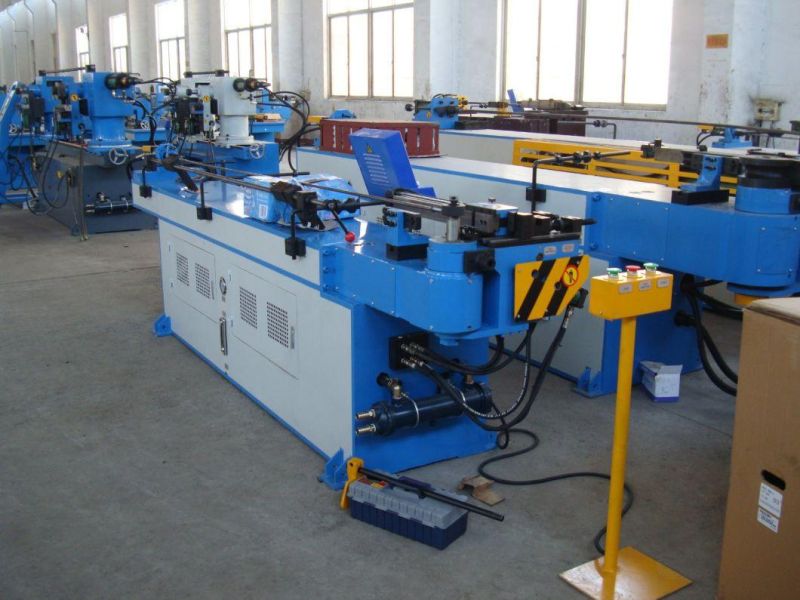

Technical Parameter and Configuration for Automatic Pipe Bending Machine GM-SB-38NCB
Machine Characteristic
Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.

Name	Unit	Parameter
Max.   Bending  Capacity	mm	O. D38*2
Bending  Radius  Range	mm	20-200
Max.   Bending  Angle	°	190°
Though  Effective  Distance	mm	2000
Bending  Speed	° /sec	60
Bending  Precision	°	± 0.10
System  Motor  Power	KW	4
Oil  Pump  Delivery  Volume	L	14
Max.   Pressure	Mpa	16
L*W*H  (Packaging  Dimension)	mm	2500*700*1300
Machine  Weight	T	1.5
