• Model NO.：SB-38CNC-TR-R-LR 6A
• Type for Fold-Bending Machine：CNC Fold-Bend Machine
• Ype for Pipe and Tube Bending Machine：Electric Hydraulic Pipe Bender
• Machine Type：Pipe Bender, Tube Bender
• Certificates：Ce, ISO9001
• Eextra Function：1d Bending, Cutting
• Modle：Sb-38cncdre Pipe Bender
• Brand：Sanco
• Technology：Taiwan
• Application：Wheelbarrow, Wheelchair, Boiler, Automobile
• Applied Material：Carbon Steel, Stainless Steel, Copper, Aluminum
• Transport Package：Wooden Case
• Specification：2800kgs
• Trademark：Sanco
• Origin：China
• HS Code：846221
• Production Capacity：3000sets,Year

Basic Info.

Model NO. SB-38CNC-TR-R-LR 6A Type for Fold-Bending Machine CNC Fold-Bend Machine Ype for Pipe and Tube Bending Machine Electric Hydraulic Pipe Bender Machine Type Pipe Bender, Tube Bender Certificates Ce, ISO9001 Eextra Function 1d Bending, Cutting Modle Sb-38cncdre Pipe Bender Brand Sanco Technology Taiwan Application Wheelbarrow, Wheelchair, Boiler, Automobile Applied Material Carbon Steel, Stainless Steel, Copper, Aluminum Transport Package Wooden Case Specification 2800kgs Trademark Sanco Origin China HS Code 846221 Production Capacity 3000sets/Year

Product Description

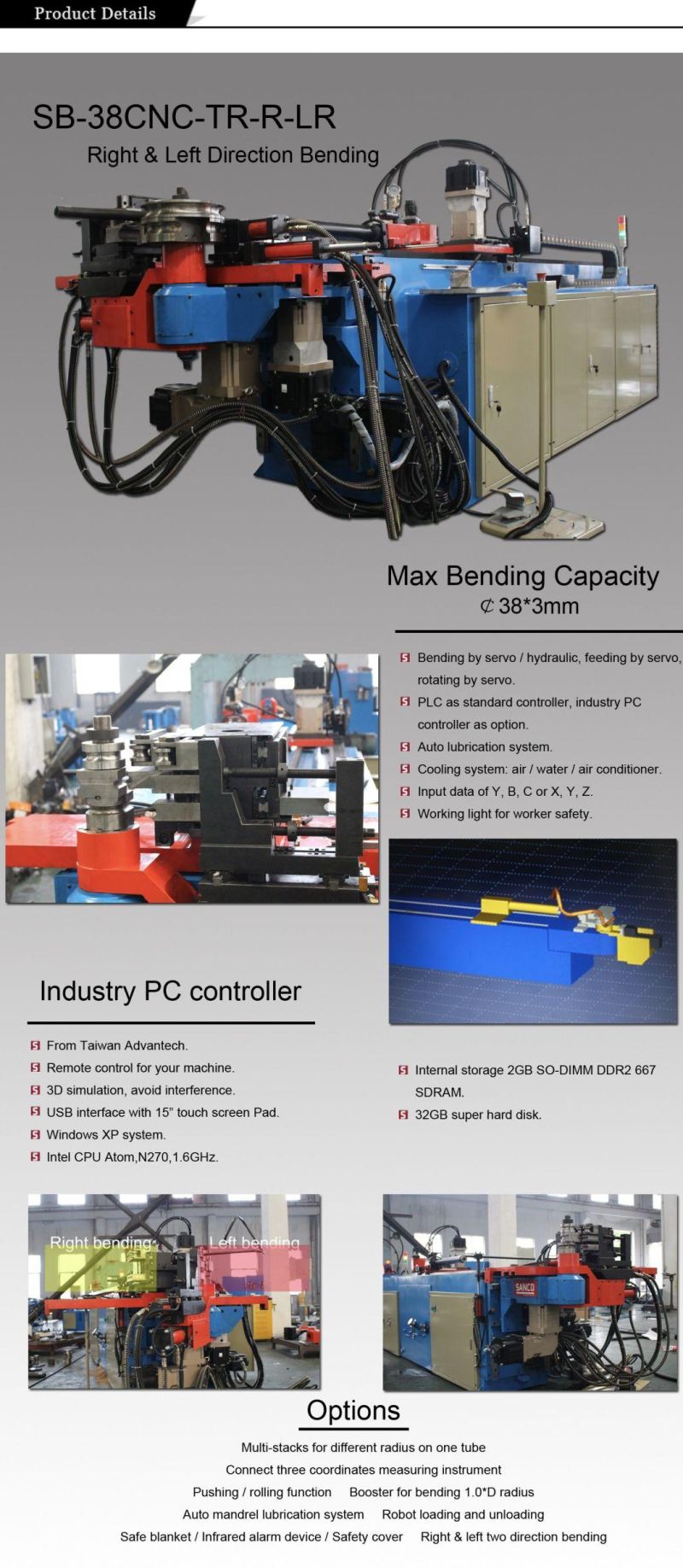

 Sanco High Technology Left and Right Head Bending Machine

Stainless Steel Pipe Bending Machine Technical Data:


No.	Item	Data
1	Max Bending Capacity	Φ38*3mm
2	Rang of Bending Radius	25-150 mm
3	Max Bend Angle	190 Deg
4	Max Length Over Mandrel	2600 mm
5	Working Height	1120 mm
6	Bending Speed	248 Deg/Sec
7	Bending Precision	+/-0.1 Deg
8	Feeding Speed	940 mm/Ses
9	Feeding Precision	+/-0.1 mm
10	Rotate Speed	375 Deg/Sec
11	Rotate Precision	+/-0.1 Deg
12	Machine Size	4200x1300x1500 mm
13	Machine Weight	2800 Kg

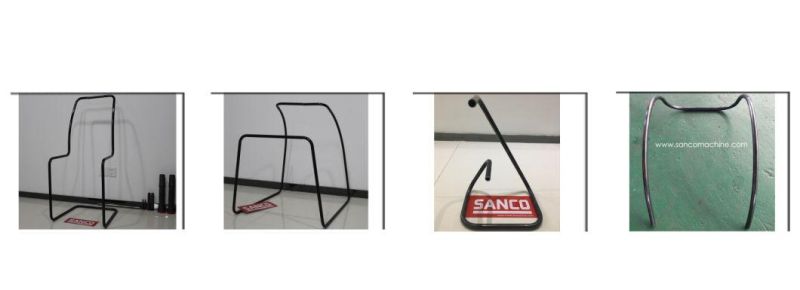

Pipe Bending Machine Bend Sample








Contacts:

SANCO MACHINERY CO., LTD Since 1984
Add: 17#, Economic Development Zone, Nanfeng Town, Zhangjiagang City, China.
Tel / Fax: +86-0512-58900248
Cell phone : +86-158-9547-5880

sancogroup.en.made-in-china.com
