• Model NO.：SB-38NCB
• Machine Type：Hydraulic Tube Bending Machine
• Certificates：Ce, ISO9001
• Color：Blue or Customized
• Eextra Function：1d Bending, Cutting
• Modle：Sb-38ncb
• Brand：Sanco
• Technology：Taiwan
• Application：Wheelbarrow, Wheelchair, Boiler, Automobile
• Applied Material：Carbon Steel, Stainless Steel, Copper, Aluminum
• Transport Package：Wooden Case
• Specification：1000KGS
• Trademark：Sanco
• Origin：China
• HS Code：8462219000
• Production Capacity：50000,Year

Basic Info.

Model NO. SB-38NCB Machine Type Hydraulic Tube Bending Machine Certificates Ce, ISO9001 Color Blue or Customized Eextra Function 1d Bending, Cutting Modle Sb-38ncb Brand Sanco Technology Taiwan Application Wheelbarrow, Wheelchair, Boiler, Automobile Applied Material Carbon Steel, Stainless Steel, Copper, Aluminum Transport Package Wooden Case Specification 1000KGS Trademark Sanco Origin China HS Code 8462219000 Production Capacity 50000/Year

Product Description

Brief Introduction of NC Pipe Bending Machine

Semi-auto NC type single axis pipe bending machine is Feeding Y axis by manual, Rotation B axis by manual, Bend C axis by Hydraulic. The bending angle controlled by high accuracy encoder from 0-190°. It is manily used for simple bending requirements, and with samll production.  The biggest of our NC pipe bending machine can bend up to OD325mm.





Features / Equipment :
Bend-arm (C-axis) by hydraulic,clamp die by hydraulic, pressure die by hydraulic
Die movement ( Main clamp, pressure clamp, mandrel, booster) by hydraulic
With tube mechanical stopper, automatic mandrel lubrication (not suitable for thick lubrication oil) , anticipated mandrel retraction unit  Anticipated mandrel retraction unit. It adops imported special control system. With high stability.
Water-cool system as standard, option: fan cooler or air condition
The processing speed is fast and its procession is high. It is suitable for high speed.
It has functions of manual, inching ,auto, setting, changing-program, single step, and so on.
It is a NC automatic bending machine controlled by PLC, an efficient, economical automatic pipe Bender.
Operation panel and PLC control system adopted, simple mode menu, accurate, fast, complete
functions of hand-Operated, inching, quote setting, changing-program.
One set of tooling installed on machine.
Footpedal and emergency stop operation rod easy for working.
Volatge as per customer's requirements.





Contacts:

SANCO MACHINERY CO., LTD Since 1984
Add: 17#, Economic Development Zone, Nanfeng Town, Zhangjiagang City, China.
Tel / Fax: +86-0512-58900248
Cell phone : +86-158-9547-5880

sancogroup.en.made-in-china.com

Technical Specification:

No.	Item	Data
1	Max Round Tube Mild Steel	50.8x2 mm
2	Non Ferrous	50.8x4 mm
3	Square Tube Mild Steel	40x40x2 mm
4	Solid Bar	25 mm
5	Min/Max Bend Radius	35 - 250 mm
6	Clamp Stroke	65 mm
7	Pressure Slide Stroke	65 mm
8	Max Bend Angle	190 Deg
9	Max Length Over Mandrel	2230 mm
10	Bending Speed	44 Deg/Sec
11	Bending Precision	+/-0.3 Deg
12	Hydraulic Motor	5.5 Kw
13	Total Power	5.5 Kw
14	Hydraulic Pressure	120 Bar
15	Hydraulic Tank Capacity	160 L
16	Machine Size	3050x720x1210 mm
19	Machine Weight	1000 Kg

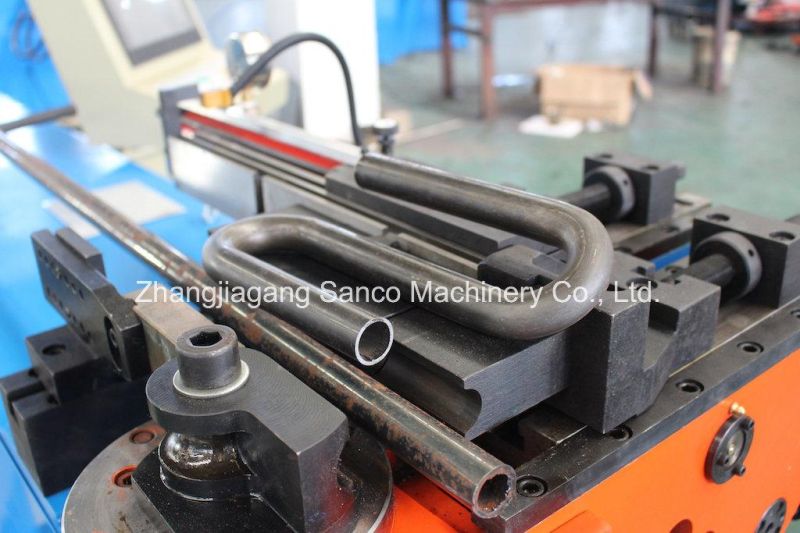

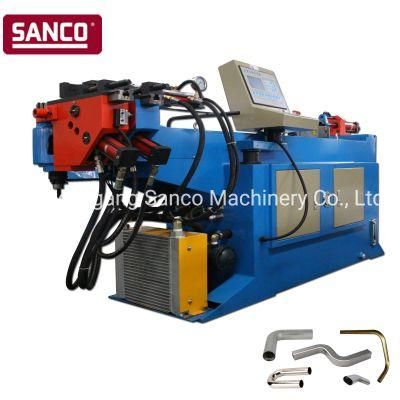

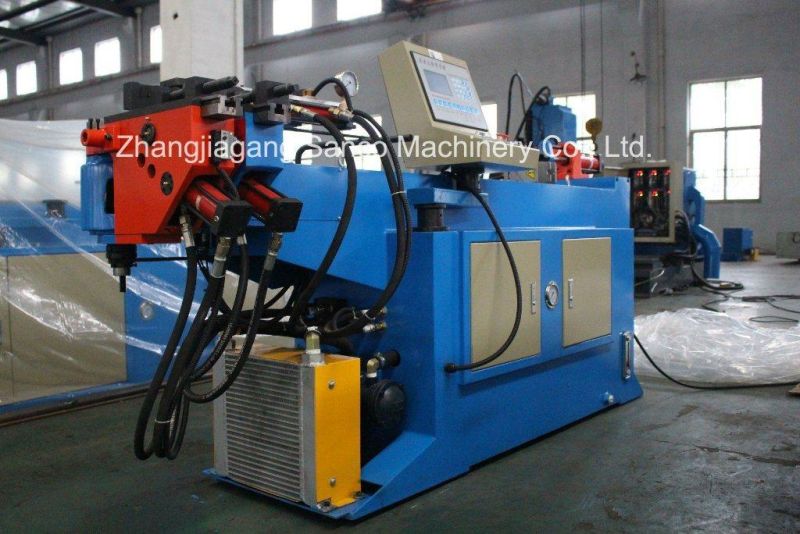

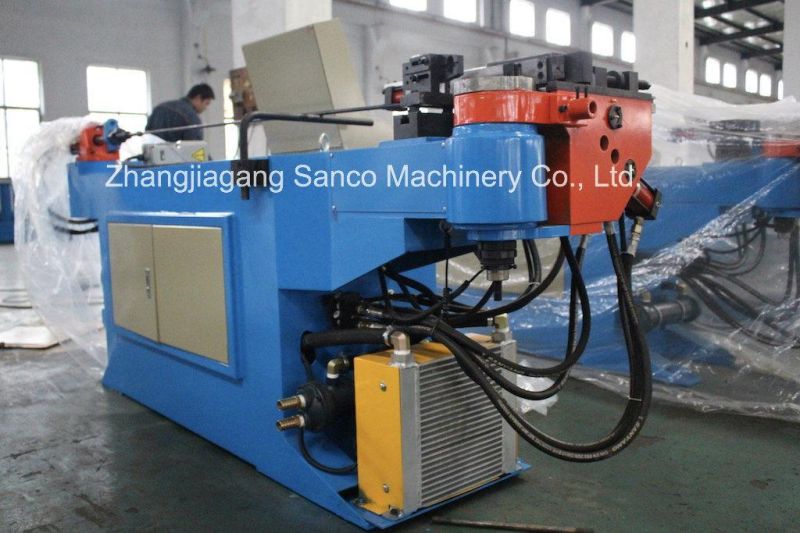

Machine Photos for customer reference

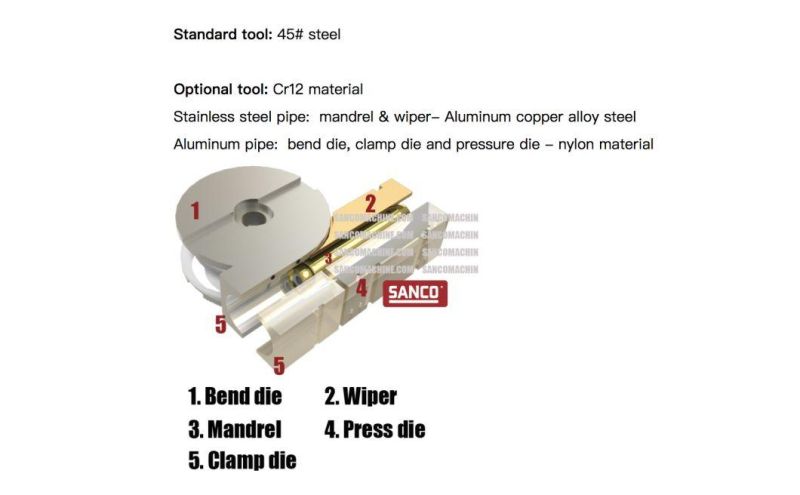

Bending Tooling Description:

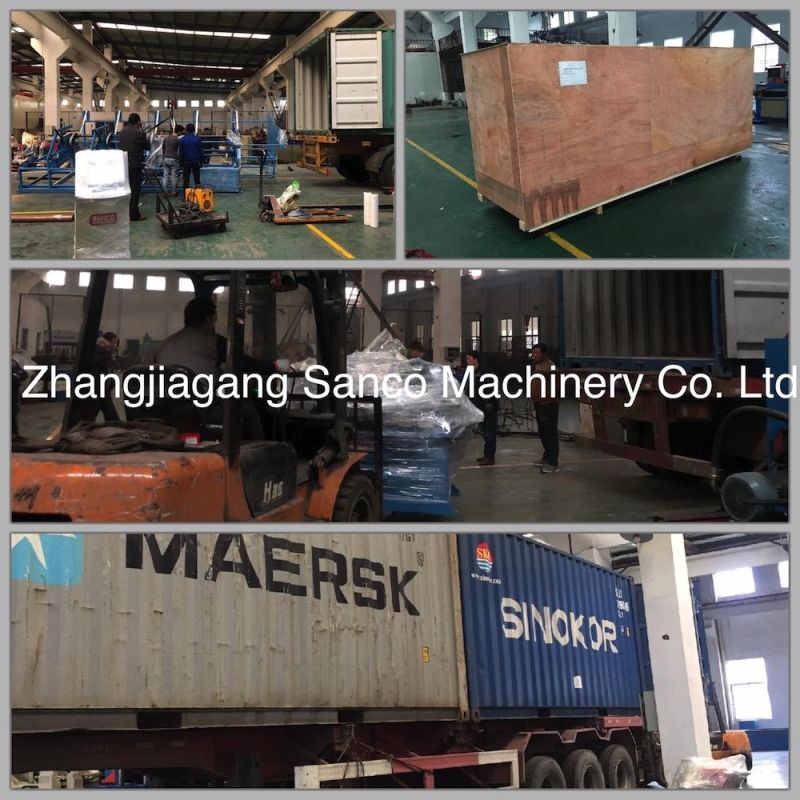

Packaging and Shipment:

FCL and LCL all accpeted, if LCL we suggect customer to use Iron case or wooden case accordingly.




After sales Service

We consider it our responsibility to ensure that the machines supplied by us are running efficiently and productively. While our endeavour is to always build first-class machines, we also realise that it is important to provide 24x7 support to you.

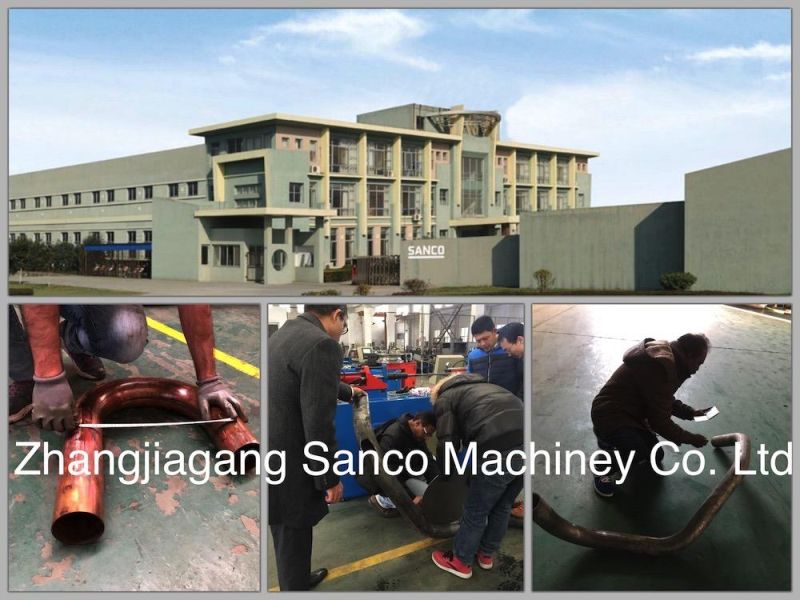

Company Introduction

Our company video link:

https://sancogroup.en.made-in-china.com

SANCO predecesor(Taiwan and China mainland)Machinery Co., Ltd. was established in 1984, and have cooperation with Taiwan bender company since 1989, specialized in manufacturing Pipe Bending Machine, Metal Circular Saw Machine, Pipe End Forming Machine, Polishing Machine, Chamfering Machine and so on. In 1984, SANCO predecesor and "Shanghai Aircraft Design and Research Institute" joint the production of hydraulic pipe bending machine. And in 1984, "Shanghai Aircraft Manufacturing Co., Ltd." assembled 25 airplanes of American model MD82. Chinese government required SANCO predecesor mapping the prototype of Italian bending machine, and SANCO predecesor manufacturing the bending machine to produce airplane related accessories.With 176 workers, 11 professional and technical engineers. SANCO company occupies 20,000 square meters, construction area of 15,000 square meters.The three-dimensional CNC bending machine developed by SANCO predecesor is advanced than other Chinese factories. SANCO predecesor is the leader of drafting the "Chinese Standard of CNC Pipe Bending Machine" (GB / T28763-2012), released in November 2012, and implemented in May 2013. And SANCO predecesor is also the leader of "Chinese Standard of Pipe Bending Machine Safety" (GB28760-2012), released in November 2012, and implemented in October 2013.All machines marked ISO 9001 and CE. SANCO machines exported to the United States, UK, France, Russia, Australia, India, Brazil, Poland, Canada, South Africa, Mexico, UAE, Saudi Arabia, and so on 58 countries.
NOW, AND FOREVER MORE ...    SANCO DO THE BEST OR NOTHING.

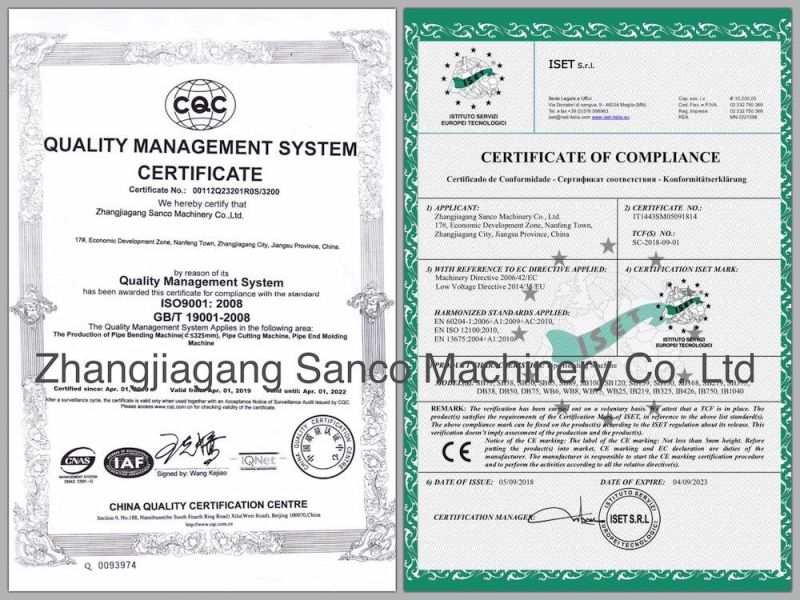

ISO & CE certificate



FAQ


1. Q: How to choose the pipe/tube bending machines?

A: You have to inform us following details:

-          Max. outside diameter:

-          Wall thickness range:

-          Bending radius (CLR):

-          The pipe material:

-          The drawings if possible:

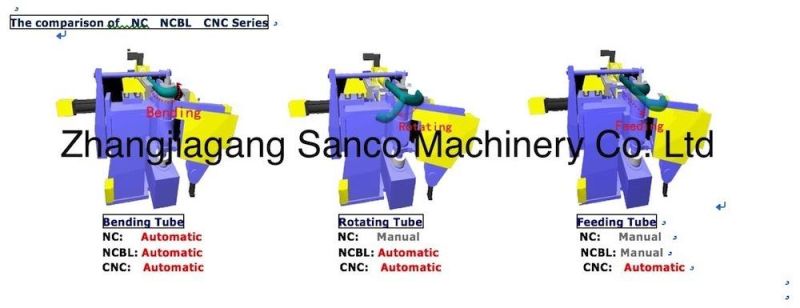

2. Q: What is the difference for NCB, NCBL and CNC machines?

A: NCB is standard hydraulic pipe bending machines, feeding and rotation are manual, and bending is hydraulic automatic.

NCBL is semi-automatic pipe bending machines, mechanical gear feeding, servo motor automatic angle rotation and hydraulic automatic bending.

CNC is fully automatic pipe bending machines, servo motor for feeding and rotations, and hydraulic or servo motor for bending, multiple tooling stack are available for two and more different bending radius (CLR).



4. Q: What is the machine's control?

A: Standard control is Mitsubishi PLC, Special is IPC controls. IPC with function of 3D view, 3D simulation, DWG readout, remote assistance etc.



5. Q: What is the biggest bending capacity you could offer?

A: As of now the biggest bending capacity is 325mm outside diameter for cold bending. For hot bending, the capacity would be 1450mm.



6. Q: Where is your factory located? How can I visit there?

A: Our factory is located in Suzhou city (near to Wuxi).You can fly to Shanghai or Wuxi airport & train station.



7. Q: What is the certificates available?

A: CE & ISO9001



8. Q: How is the training and after sales service?

A: Customer is welcome to visit our factory for pre-shipment, and we wil provide trainning service FOC, or we can send our professional engineer to be abraod in customer's plant, and customer will pay for the air tickets, accommodation, meals, and USD100 per day.
