| MB8 Series CNC Servo Press Brake with ESA S630 System 4+1 Axes Features: |
| The frame is made of steel structure, left and right vertical plate, worktable and pressure plate are welded into a whole structure. After welding, the internal stress is eliminated by tempering, so the whole steel is good and the stability is high. |
| Latest high-frequency responding hydraulic control technology, faster, more efficient and accurate. |
| Optimal ratio of parameters and top-level core configuration ensure stable performance and easy operation. |
| MB8 standard 2 shafts back gauge system, as to complex shape work pieces, 4 or 5 shafts back gauge system and corresponding dies are available for your option. |
| The distance of the rear gear and the stroke of the slider are controlled by the numerical control system, which is convenient and quick. |
| The oil cylinder has been forged, Quenched and tempered, fine grinding, hard chromium plating and other processes, and with the import of sealing ring, the phenomenon of oil leakage in customer service. |
| The hydraulic system adopts the integrated hydraulic system of oil road to reduce the installation of the pipeline, and the appearance of the hydraulic system is beautiful and concise. |

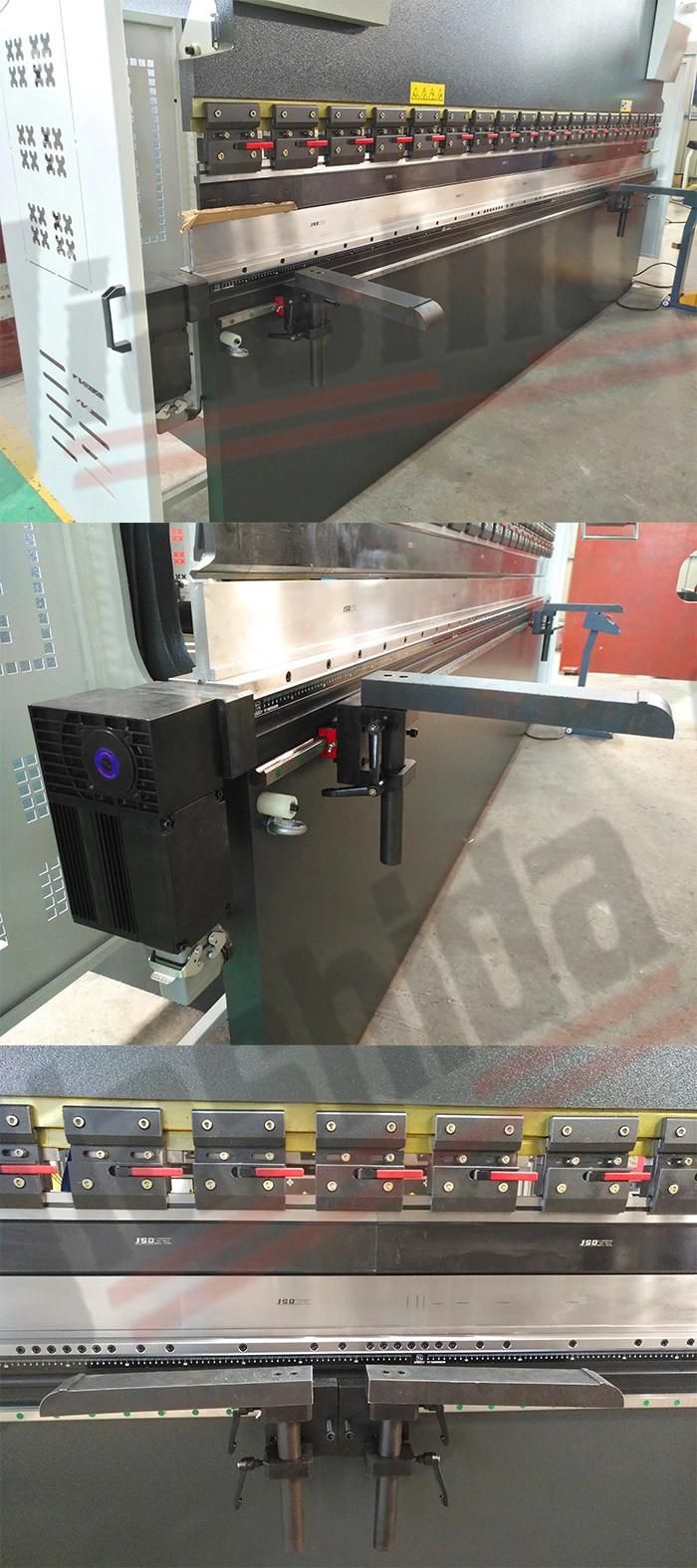

| Quick Clamp |
| Chinese brand quick clamp, for easy and quick tool changing. |
| Front Support |
| 2 pieces of front supporter |
| Moving along the rail for convenience of bending operation |
| Mechanical Compensation |
| When working, the upward compensation workbench produces an upward force that is equivalent to the force of the main oil cylinder to the workbench, and generates an upward convex curve to compensate for the deformation of the worktable and the slider during work. |
| Each group consists of several groups of three-dimensional curved surfaces with different slopes. This compensates for the shortcomings of traditional hydraulic compensation in compensating the blind areas. The compensation curve is closer to the deformation curve of the slide plate, which greatly improves the machining accuracy of the bending machine. |

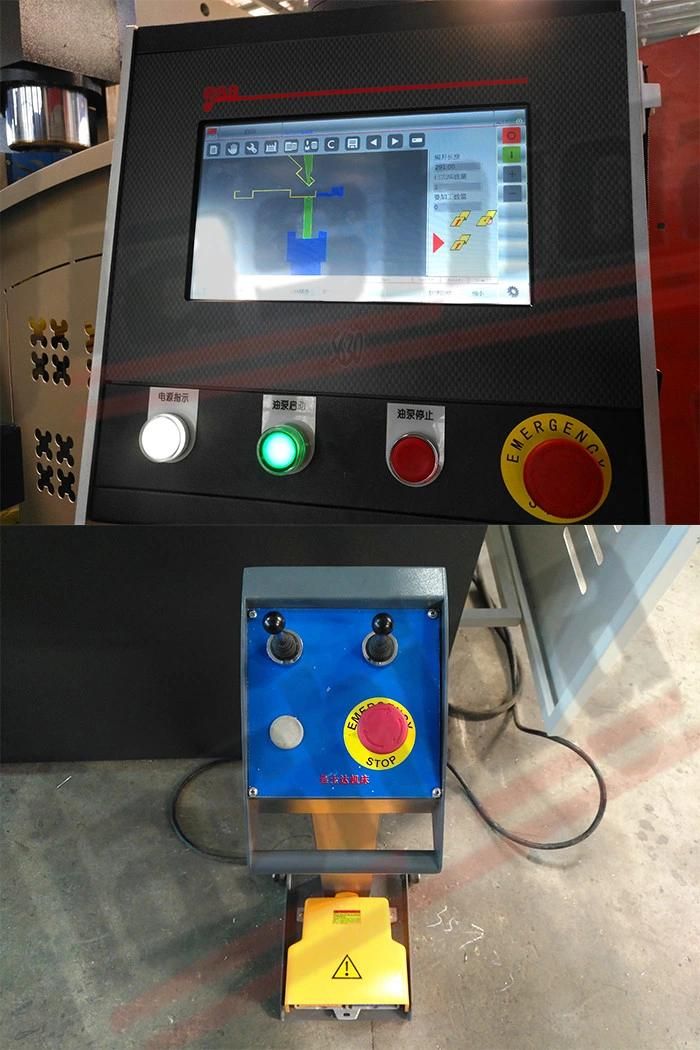

| S630 CNC system features: |
| Can be used for electro-hydraulic bending machine, double-acting bending machine |
| 10 inch touch screen |
| 2D graphics programming function |
| Fill-in programming mode, automatic calculation of bending force and deflection compensation |
| Direct control of multiple servo valves without any external amplifier |
All programs, molds and parameters can be saved to USB flash drive via USB interface
Standard 4+1 axis control |
| South Korea KACON Foot Pedal |
