Cutting & Fold-bend Machine

Hc-608L Electric Automatic Machine for Cable Wire Cutting and Stripping

Changzhou Hechang Intelligent Technology Co., Ltd.
  • After-sales Service:Solve Your Problem in 24 Hours
  • Warranty:1 Year
  • Condition:New
  • Certification:ISO 9001:2008, CE
  • Automation:Automatic
  • Suitable for:Plastic, Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

Base Info

  • Model NO.:HC-608L
  • Model:Hc-608L
  • Outer Dimensions:L1200mm*W600mm*H1210mm
  • Weight:230kg
  • Power Supply:220V
  • Power Consumption(220V):2000W
  • Cutting Length:1mm--99999.99mm
  • Cutting Tolerances:0.1+0.0005*L
  • Multi Conductor Cable Stripping Length:Frond End Stripping Length:Max300mm Rear End Strip
  • Electric Cable Stripping Length:Frond End Stripping Length:Max70mm Rear End Stripp
  • Applicable Wires:Avss,Vsf, IV, Kv, UL,Teflon ,Bur, Bvr, Glass Wire
  • Wire Size:6-70mm2 (AWG10-AWG2,0) Bvr Multi Strands Soft Wire
  • Wire/Cable Middle Window Stripping:The Open Position Can Be Arbitrarily Set , Opening
  • Conduit Diameter:3-18mm
  • Transport Package:Wooden Box
  • Specification:W1680*L560*H1120mm
  • Trademark:hechang
  • Origin:Hechang
  • HS Code:8479899990
  • Production Capacity:30sets,Mouth

Description

Overview Product Description

Detailed Photos

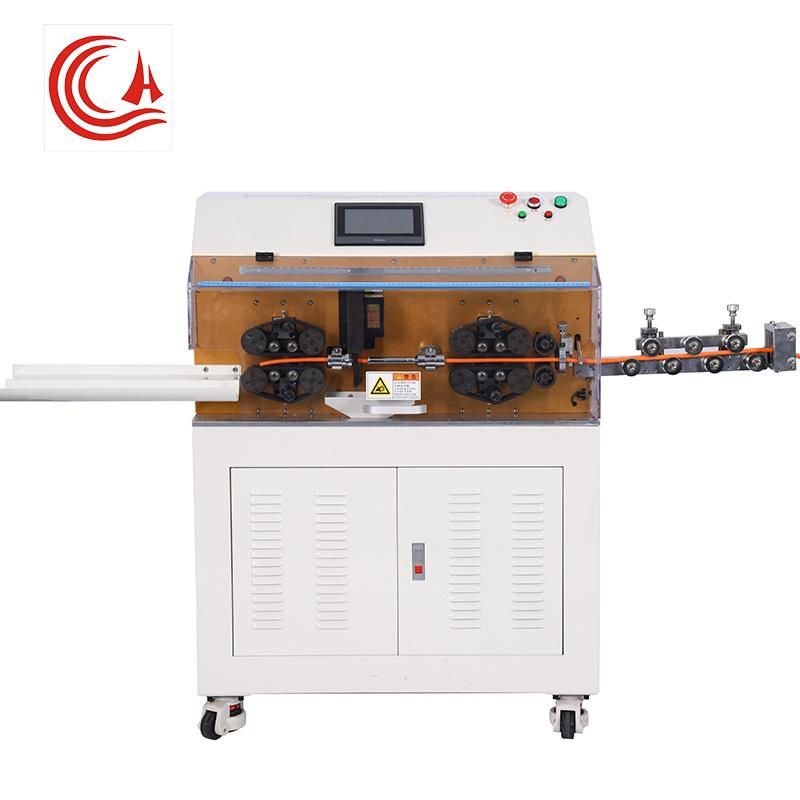

Hc-608L Electric Automatic Machine for Cable Wire Cutting and Stripping

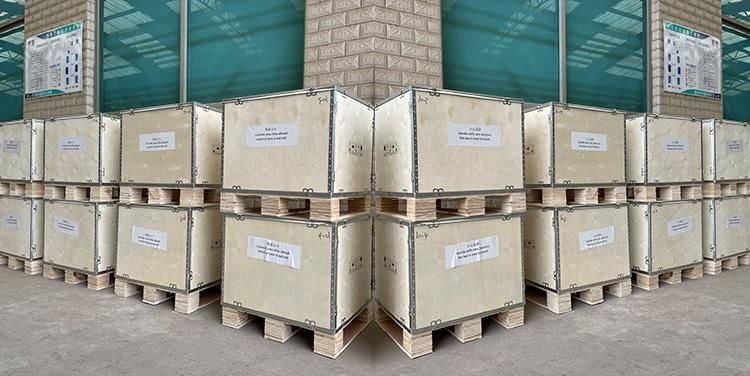

Product ParametersPackaging & Shipping

Hc-608L Electric Automatic Machine for Cable Wire Cutting and Stripping

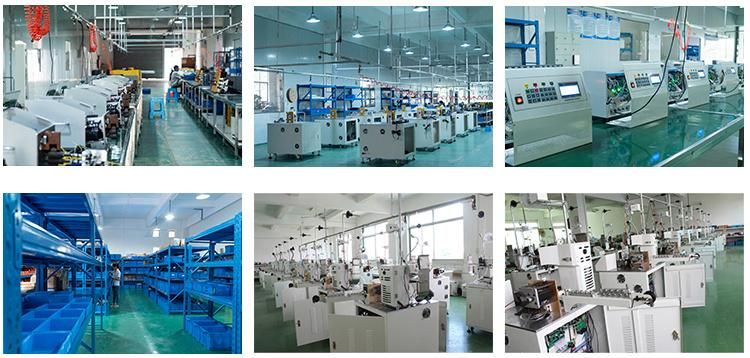

Company Profile

Hc-608L Electric Automatic Machine for Cable Wire Cutting and Stripping
Changzhou Hechang Intelligent Technology Co., Ltd. was established in 2005, specializing in the production of wire and cable processing equipment, wire harness processing equipment, and primary and secondary line equipment. It is a professional enterprise integrating sales, innovation and service. Since its establishment, the company has successively passed ISO9001, CE certification, obtained a number of utility model patents, and established a Jiangxi production base and branch in 2018. The company has a professional R&D technical team, advanced processing technology and efficient after-sales service. The equipment produced is widely used in electronics, new energy vehicles, 5G, 3C, home appliances, medical, aerospace and other industries.

The equipment and accessories of Changzhou Hechang Intelligent Technology Co., Ltd. are independently developed and manufactured, combined with advanced technology in Europe, America and Taiwan, and continue to develop and innovate. It cooperates with many well-known domestic and foreign companies such as Amphenol, Siemens, Delixi and Johnson Controls. Established long-term cooperative relations, products are exported to Europe, America, Southeast Asia, Oceania, Africa and many other countries and regions.

Our Advantages

Hc-608L Electric Automatic Machine for Cable Wire Cutting and StrippingHc-608L Electric Automatic Machine for Cable Wire Cutting and StrippingHc-608L Electric Automatic Machine for Cable Wire Cutting and Stripping

FAQ

1.What are the wearing parts?
Blade and belt. More spare parts info, please contact us.

2.Operation and user manual?
English and Chinese optional.

3.How long is the warranty period?
1year, all belts and blades without of the warranty.

4.What after sales service do you provide?
Technicians online support, video technical support within 24 hours.
If you need local service please check with Hechang Machinery. Generally require additional charges.
