• Model NO.：B5032D
• Slotting length：200mm
• Max.Weight of working piece：400kgs
• table diameter：500mm
• color：As Customer Request
• Transport Package：Plywood Case
• Specification：CE SGS ISO9001
• Trademark：HOTON
• Origin：Shandong China
• HS Code：846120200
• Production Capacity：5 PCS,Month

Basic Info.

Model NO. B5032D Slotting length 200mm Max.Weight of working piece 400kgs table diameter 500mm color As Customer Request Transport Package Plywood Case Specification CE SGS ISO9001 Trademark HOTON Origin Shandong China HS Code 846120200 Production Capacity 5 PCS/Month

Product Description

SLOTTING MACHINE FEATURES:
Features:
This machine is used to process planes,model surfaces,key seating ect,is most suitable for the single-piece or small batch production
The main transmission is to change the crank gear's rotary motion into the reciprocating motion of the ram.
Worktable can be vertical, horizontal and rotary moving, maual or automatic and fast moving.The feed will stopped automatically when worktable is meet trouble or achieve limit.
The start and stop adopt electromagnetism clutch, realize centralized control.
Angle dividing device for table roatry dividing, do machining as required angle.
This machine is well designed as standard,universalization,serialization,automation.Good appearance and convenient maintenance.
Automatic lubrication,easy adjustment
The electric equipment is fixed in the bed at the back of lower bed. it is safe because of the concentrated push buttons in the upper bed.
SPECIFICATION:

SPECIFICATION	B5020D	B5032D	B5040	B5050A
Max slotting length	200mm	320mm	400mm	500mm
Max dimensions of workpiece (LxH)	485x200mm	600x320mm	700x320mm	-
Max weight of workpiece	400kg	500kg	500kg	2000kg
Table diameter	500mm	630mm	710mm	1000mm
Max longitudinal travel of table	500mm	630mm	560/700mm	1000mm
Max cross travel of table	500mm	560mm	480/560mm	660mm
Range of table power feeds (mm)	0.052-0.738	0.052-0.738	0.052-0.783	3,6,9,12,18,36
Main motor power	3kw	4kw	5.5kw	7.5kw
Overall dimensions (LxWxH)	1836x1305x1995	2180x1496x2245	2450x1525x2535	3480x2085x3307



Contact Us:

Andy Wang  TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 13506328892 hotonmachinery.en.made-in-china.com

Company Profile:

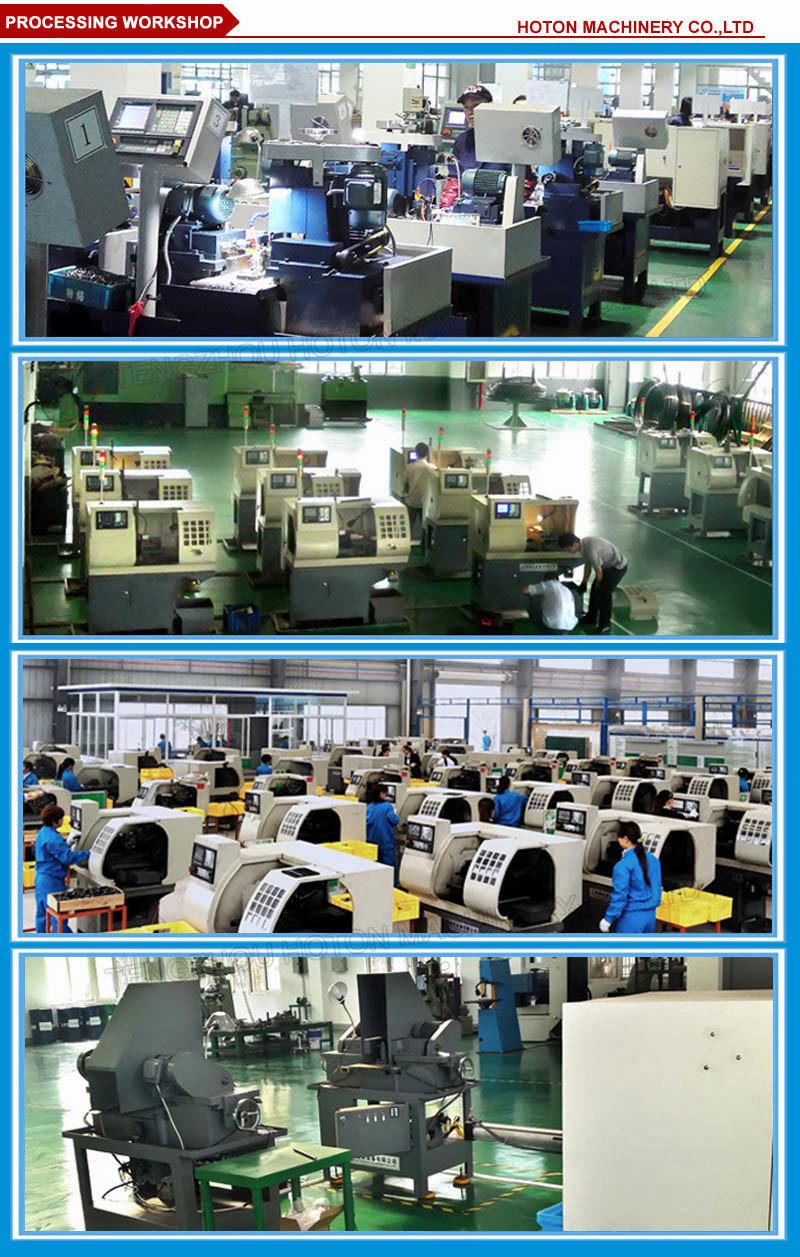

Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.
