• Model NO.：W12S-20X2500
• Type：Roller-Bending Machine
• Roller：4 Rollers
• Control：PLC
• max rolling thickness：20mm
• max rolling width：2500mm
• Transport Package：Steel Pallet
• Specification：W12S-20X2500
• Trademark：HAVEN
• Origin：China
• HS Code：84622990
• Production Capacity：30 Units,Month

Basic Info.

Model NO. W12S-20X2500 Type Roller-Bending Machine Roller 4 Rollers Control PLC max rolling thickness 20mm max rolling width 2500mm Transport Package Steel Pallet Specification W12S-20X2500 Trademark HAVEN Origin China HS Code 84622990 Production Capacity 30 Units/Month

Product Description

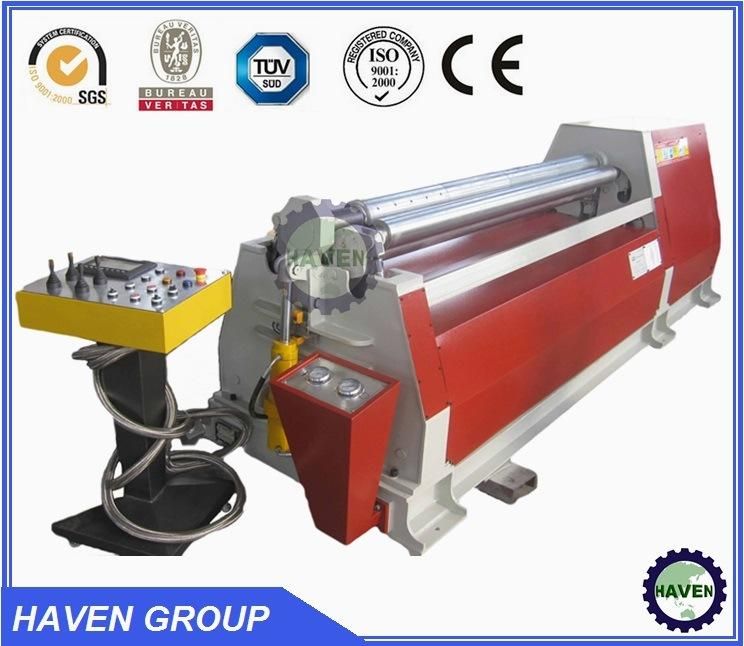

                                             4-Roller Plate Bending Machine W12S-20X2500



Main features:
The machine adopts the four-roller structure with the upper roller as the main drive, providing the plates bending with torque through the engagement between the gear of the moderator and the gear of the upper roller.
The lower roller moves vertically and imposes a force on the piston via. The hydraulic cylinder.
Outer rollers are arranged on both sides of the two inner lower roller. And make inclining movement along the guide rail, and are provided with drive through the lead screw nut and worm gear.
The advantage of this is that the preliminary bending and rolling of the top ends of the plates be done on the same machine.

Main specification:

Model	Working Length (mm)	Max. Thickness (mm)	Pre- Bending (mm)	Upper (Φmm)	Under (Φmm)	Side (Φmm)	Motor Power (km)	dimension(cm)
W12S-4x2000	2000	4	3	160	140	120	2.2	392x86x114
W12S-4x2500	2500	4	3	190	170	150	3	402x125x138
W12S-4x3200	3200	4	3	210	190	170	7.5	466x132x137
W12S-4x4000	4000	4	3	270	250	210	5.5	600x143x152
W12S-6x2000	2000	6	4	190	170	150	3	402x125x138
W12S-6x2500	2500	6	4	210	190	170	7.5	466x132x137
W12S-6x3200	3200	6	4	230	210	190	7.5	516x132x137
W12S-6x4000	4000	6	4	300	270	210	5.5	592x149x173
W12S-8x2000	2000	8	6	210	190	170	7.5	416x132x137
W12S-8x2500	2500	8	6	230	210	190	7.5	466x132x137
W12S-8x3200	3200	8	6	270	250	210	11	551x143x152
W12S-8x4000	4000	8	6	330	300	240	7.5	597x161x184
W12S-10x2000	2000	10	8	230	210	180	7.5	416x132x137
W12S-10x2500	2500	10	8	270	250	210	11	500x143x152
W12S-10x3200	3200	10	8	300	270	210	11	542x146x173
W12S-10x4000	4000	10	8	360	330	250	11	605x168x190
W12S-12x2000	2000	12	9	270	250	210	11	451x143x152
W12S-12x2500	2500	12	9	300	270	210	11	492x146x173
W12S-12x3200	3200	12	9	330	300	240	11	547x161x184
W12S-12x4000	4000	12	9	390	360	300	18	605x198x210
W12S-16x2000	2000	16	12	300	270	210	11	442x146x173
W12S-16x2500	2500	16	12	330	300	240	11	497x161x184
W12S-16x3200	3200	16	12	360	330	250	15	554x168x190
W12S-16x4000	4000	16	12	430	390	330	15	628x218x220
W12S-20x2000	2000	20	16	330	300	240	11	440x200x212
W12S-20x2500	2500	20	16	360	330	250	15	504x168x190
W12S-20x3200	3200	20	16	390	360	300	18.5	552x198x210
W12S-20x4000	4000	20	16	460	420	360	18.5	664x258x230
W12S-25x2000	2000	25	20	360	330	250	15	447x161x184
W12S-25x2500	2500	25	20	390	360	300	18.5	502x198x210
W12S-25x3200	3200	25	20	430	390	330	22	578x218x220
W12S-25x4000	4000	25	20	510	460	390	22	664x296x300
W12S-30x2000	2000	30	25	390	360	300	22	479x218x220
W12S-30x2500	2500	30	25	430	390	330	22	528x218x220
W12S-30x3200	3200	30	25	460	420	360	30	614x258x230
W12S-30x4000	4000	30	25	540	510	440	30	700x305x300
W12S-35x2000	2000	35	28	430	390	330	30	430x250x245
W12S-35x2500	2500	35	28	460	420	360	30	564x258x230
W12S-35x3200	3200	35	28	510	460	390	37	630x258x230
W12S-35x4000	4000	35	28	650	550	480	45	650x300x300
W12S-40x2000	2000	40	32	460	420	360	37	450x250x245
W12S-40x2500	2500	40	32	510	460	390	45	480x250x245
W12S-40x3200	3200	40	32	540	500	440	45	650x305x300
W12S-50x3200	3200	50	40	650	550	480	55	650x360x350
W12S-60x3200	3200	60	48	760	680	580	75	750x450x415

Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement

Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.

Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
