CNC Pipe Bending for Ms Ss202/314/316 Aluminum Copper
Zhangjiagang Sanco Machinery Co., Ltd.- Waterproof Rating：IPX-8
- Warranty：2-year
- Condition：New
- Certification：ISO 9001:2000, CE, UL
- Automation：Automatic
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.：SB-25CNCDRE
- Type：Pipe and Tube Bending Machine
- Machine Type：Hydraulic Tube Bending Machine
- Certificates：Ce, ISO9001
- Color：Blue or Customized
- Eextra Function：1d Bending, Cutting
- Modle：Sb-25cncdre
- Brand：Sanco
- Technology：Taiwan
- Application：Wheelbarrow, Wheelchair, Boiler, Automobile
- Applied Material：Carbon Steel, Stainless Steel, Copper, Aluminum
- Transport Package：Wooden Case
- Specification：2000kgs
- Trademark：Sanco
- Origin：China
- HS Code：846221
- Production Capacity：5000sets,Year
Description
Basic Info.
Model NO. SB-25CNCDRE Type Pipe and Tube Bending Machine Machine Type Hydraulic Tube Bending Machine Certificates Ce, ISO9001 Color Blue or Customized Eextra Function 1d Bending, Cutting Modle Sb-25cncdre Brand Sanco Technology Taiwan Application Wheelbarrow, Wheelchair, Boiler, Automobile Applied Material Carbon Steel, Stainless Steel, Copper, Aluminum Transport Package Wooden Case Specification 2000kgs Trademark Sanco Origin China HS Code 846221 Production Capacity 5000sets/YearProduct Description

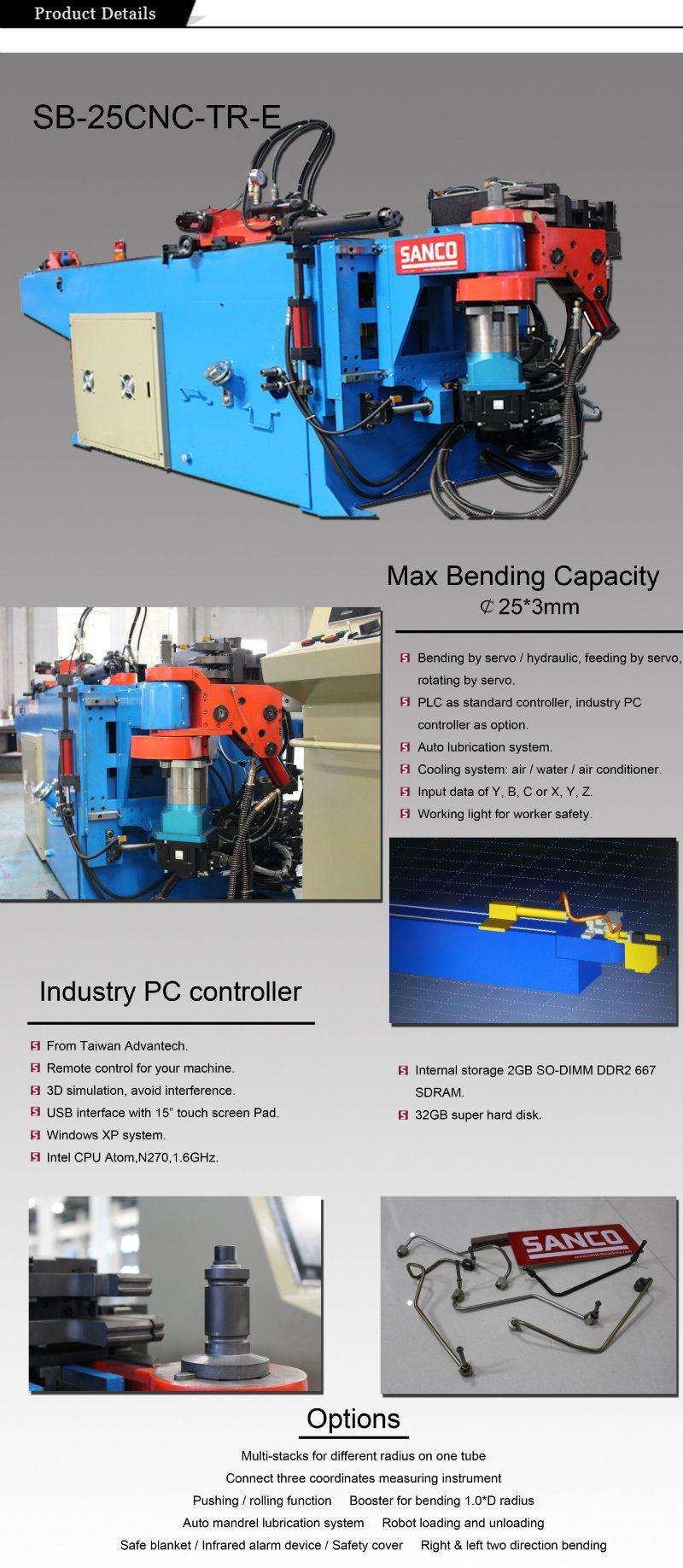

CNC Pipe Bending for MS SS202/314/316 Aluminum Copper
Technical Data:
| Item | Data |
| Max Bending Capacity | Φ25mm |
| Rang of Bending Radius | 10-150 mm |
| Max Bend Angle | 190 Deg |
| Max Length Over Mandrel | 2000 mm |
| Bending Speed | 36-200 Deg/Sec |
| Bending Precision | +/-0.05 Deg |
| Feeding Speed | 200-1000 mm/Ses |
| Feeding Precision | +/-0.05 mm |
| Rotate Speed | 36-350 Deg/Sec |
| Rotate Precision | +/-0.05 Deg |
Contacts:
SANCO MACHINERY CO., LTD Since 1984
Add: 17#, Economic Development Zone, Nanfeng Town, Zhangjiagang City, China.
Tel / Fax: +86-0512-58900248
Cell phone : +86-158-9547-5880
sancogroup.en.made-in-china.com
