• Model NO.：SB-25CNCDRE
• Type：Pipe and Tube Bending Machine
• Machine Type：Hydraulic Tube Bending Machine
• Certificates：Ce, ISO9001
• Color：Blue or Customized
• Eextra Function：1d Bending, Cutting
• Modle：Sb-25cncdre
• Brand：Sanco
• Technology：Taiwan
• Application：Wheelbarrow, Wheelchair, Boiler, Automobile
• Applied Material：Carbon Steel, Stainless Steel, Copper, Aluminum
• Transport Package：Wooden Case
• Specification：2000kgs
• Trademark：Sanco
• Origin：China
• HS Code：846221
• Production Capacity：5000sets,Year

Basic Info.

Model NO. SB-25CNCDRE Type Pipe and Tube Bending Machine Machine Type Hydraulic Tube Bending Machine Certificates Ce, ISO9001 Color Blue or Customized Eextra Function 1d Bending, Cutting Modle Sb-25cncdre Brand Sanco Technology Taiwan Application Wheelbarrow, Wheelchair, Boiler, Automobile Applied Material Carbon Steel, Stainless Steel, Copper, Aluminum Transport Package Wooden Case Specification 2000kgs Trademark Sanco Origin China HS Code 846221 Production Capacity 5000sets/Year

Product Description

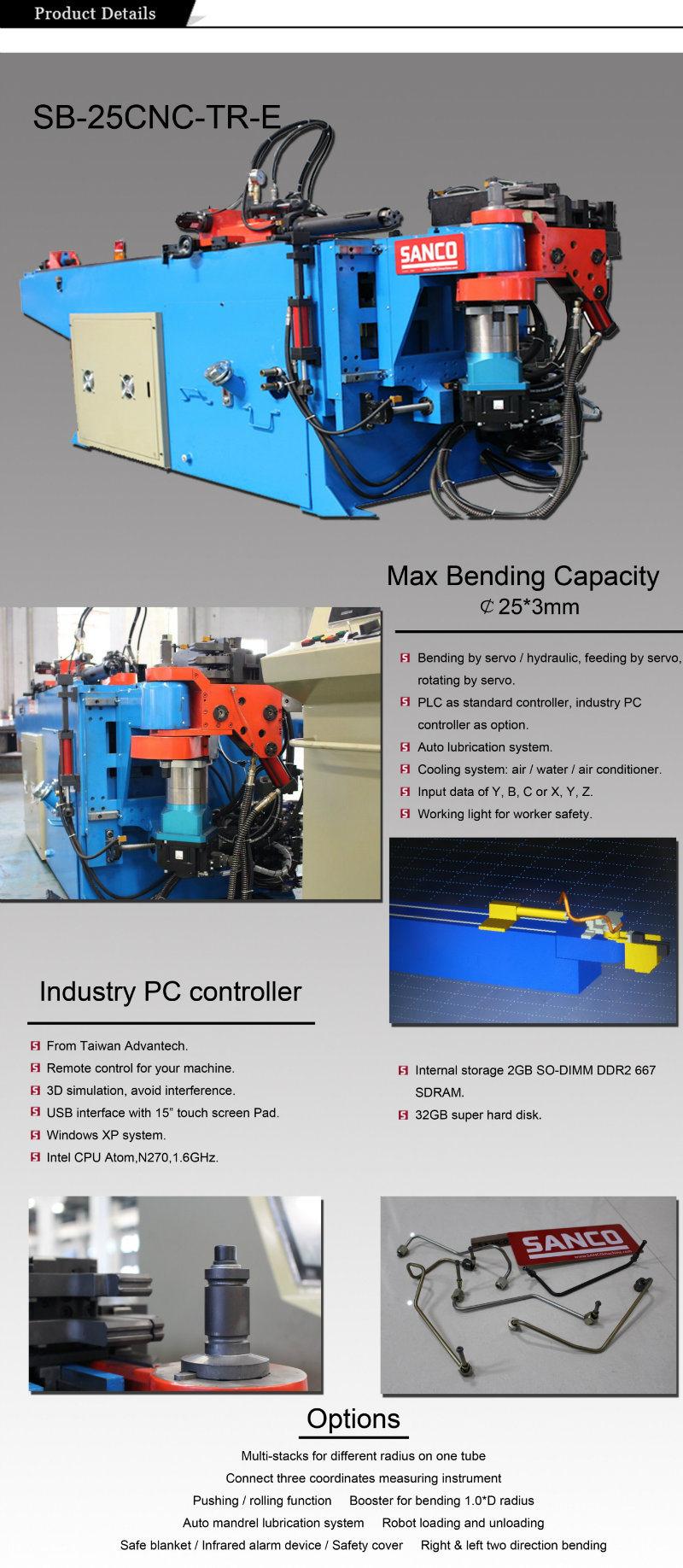

A Tube Bending Machine









Technical Data:


Item	Data
Max Bending Capacity	Φ25mm
Rang of Bending Radius	10-150 mm
Max Bend Angle	190 Deg
Max Length Over Mandrel	2000 mm
Bending Speed	36-200 Deg/Sec
Bending Precision	+/-0.05 Deg
Feeding Speed	200-1000 mm/Ses
Feeding Precision	+/-0.05 mm
Rotate Speed	36-350 Deg/Sec
Rotate Precision	+/-0.05 Deg
