Camless CNC Multi-Axis Wire Forming Machine Manufactures

Dongguan Xinsheng Hardware Machinery Co., Ltd.

Waterproof Rating：IPX-8
Warranty：2-year
Condition：New
Certification：ISO 9001:2008, CE
Automation：Automatic
Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

Base Info

Model NO.：GT60-12R
Type：Coiling Bending Machine
Wire Diameter：2.0-6.0mm
Application：Spring Forming
Voltage：380V 50Hz 3phases
After-Sales Service Provided：Engineers Available to Service Machinery Overseas
Control System：CNC Control
Advantage：Powerful Function
Machine Name：Multi-Axis CNC Wire Bending Machine

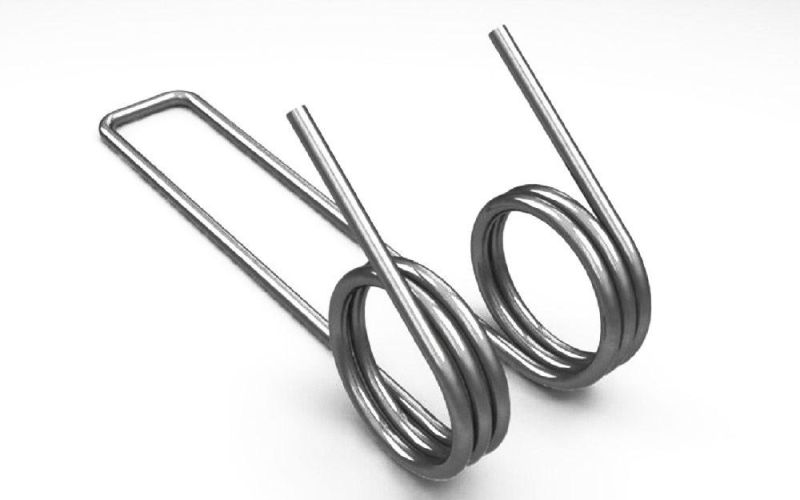

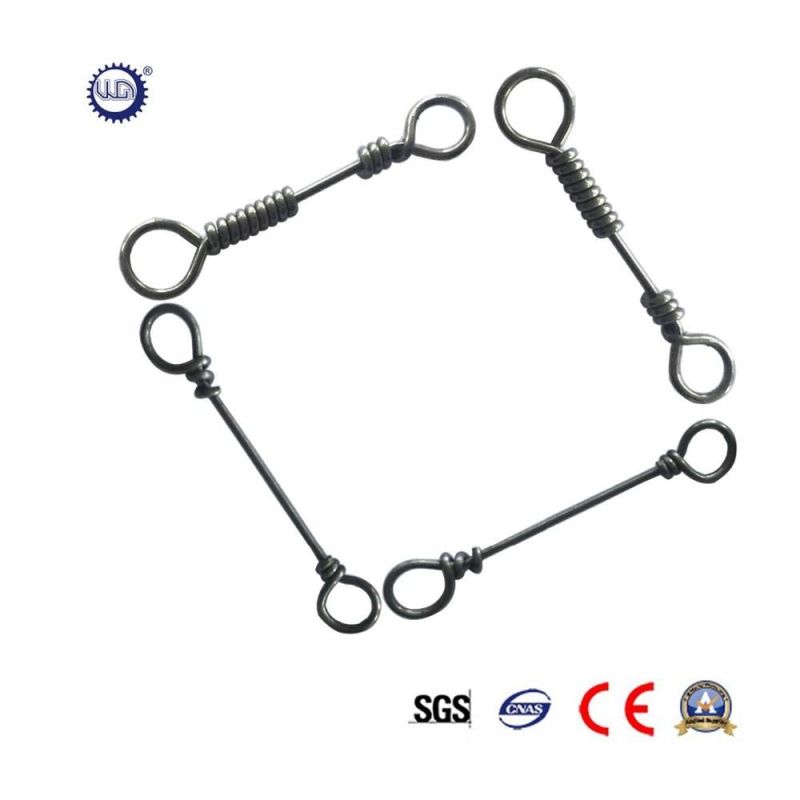

Final Product：Wire Forming Stuff
Transport Package：Standard Wooden Box
Trademark：XINSHENG
Origin：Guangdong, China (Mainland)
HS Code：8463300000
Production Capacity：2 Set Per Month

Description

Basic Info.

Model NO. GT60-12R Type Coiling Bending Machine Wire Diameter 2.0-6.0mm Application Spring Forming Voltage 380V 50Hz 3phases After-Sales Service Provided Engineers Available to Service Machinery Overseas Control System CNC Control Advantage Powerful Function Machine Name Multi-Axis CNC Wire Bending Machine Final Product Wire Forming Stuff Transport Package Standard Wooden Box Trademark XINSHENG Origin Guangdong, China (Mainland) HS Code 8463300000 Production Capacity 2 Set Per Month

Product Description

Technical Parameter

Model		GT60-12R
Line Diameter	mm	2.0-6.0
Max Line Feeding Value	mm	10000
Min Line Feeding Value	mm	0.01
Max Line Feeding Speed	m/min	80
Max Line Length	mm	Unlimited
Axis		12
Total Power of Servo Motors	kw	39.8
Input Power	v/hz/ph	380/50/3
Control system		Made in Taiwan
Program Storage	plus	3000
Air Pressure	kg/cm2	5~6
Probe Number		3
Overall length	mm	3500
Overall width	mm	2150
Overall height	mm	2150
Weight	kg	7000

SPECIFICATIONS:

1) Flexible external twisting head with faster speed and more twisting angle.
2) Adopting Japanese Sanyo Denki servo motor and Taiwanese controller screen display.
3) Camless design, flexible in adjusting and great in precision.
4) Running in a high automatization and intellectualization, no pollution.
5) Bilingual interface(English optional), easy to operate.

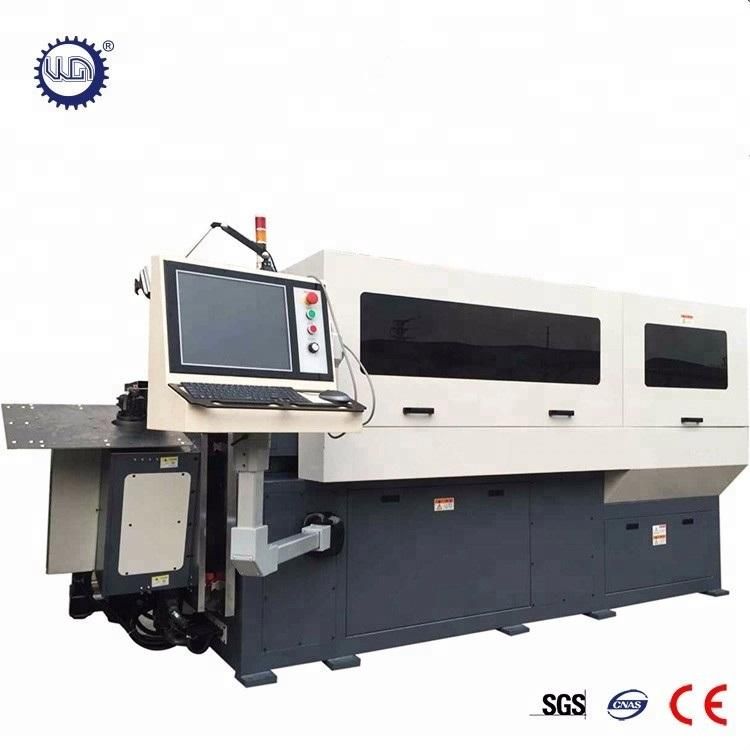

Product Images Camless CNC Multi-Axis Wire Forming Machine Manufactures
