• Model NO.：WC67Y-30x1350
• Length：1350mm
• RAM stroke (mm)：100mm
• Stroke adjustment (mm)：80mm
• Transport Package：Steel Pallet
• Specification：CE Standard
• Trademark：HAVEN
• Origin：China
• HS Code：8462
• Production Capacity：50units,Month

Basic Info.

Model NO. WC67Y-30x1350 Length 1350mm RAM stroke (mm) 100mm Stroke adjustment (mm) 80mm Transport Package Steel Pallet Specification CE Standard Trademark HAVEN Origin China HS Code 8462 Production Capacity 50units/Month

Product Description

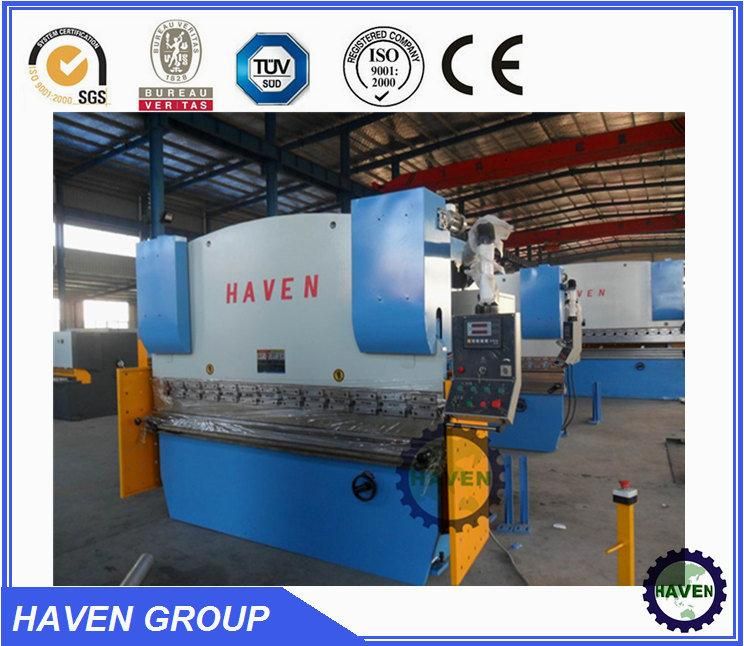

Hydraulic Press Brake Machine for steel plate bending WC67Y

Features:
(1)Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity;
(2)Hydraulic top-drive, steadiness and reliability
(3)Mechanical stop, steel torsion bar to maintain synchronization, high precision;
(4)Motorized-adjusting device of back-gauge and RAM's stroke, fine adjusting by hand wheel, numerical display;

(5)Deflection compensation unit installed on the top die, manual crowed bottom die holder is adopted for the
Machine above 250tons;
(6)Travel limit protection.
(7)Remote pedal control device
(8)Full machine guarding with safety interlocker.
(9)Duplex linked press brake is available as per client's demand.
(10)Electric components are from Siemens
(11)Oil-seal rings are imported from Japan
(12)NC control system are imported from DELEM, Netherland ( NC control system is at extra cost ).

Main specification:

Specification	WC67Y-30/1350	WC67Y-40/1350	WC67Y-63/1350
Nominal pressure (KN)	300	400	630
Working width (mm)	1350	1350	1350
Ram stroke (mm)	100	100	100
Stroke adjustment (mm)	80	80	80
Max. Stroke number (/min)	11	10	9
Motor power (k w)	3	4	5.5
Net weight ( t )	1.8	2.1	3.2
