• Model NO.：WE67K-400x5000
• Application：Machinery
• Type for Fold-bending Machine：CNC Fold-bend Machine
• Transport Package：Steel Pallet
• Specification：Force 400t, Length 5000mm
• Trademark：HAVEN
• Origin：China
• HS Code：8466
• Production Capacity：50 Units,Month

Basic Info.

Model NO. WE67K-400x5000 Application Machinery Type for Fold-bending Machine CNC Fold-bend Machine Transport Package Steel Pallet Specification Force 400t, Length 5000mm Trademark HAVEN Origin China HS Code 8466 Production Capacity 50 Units/Month

Product Description

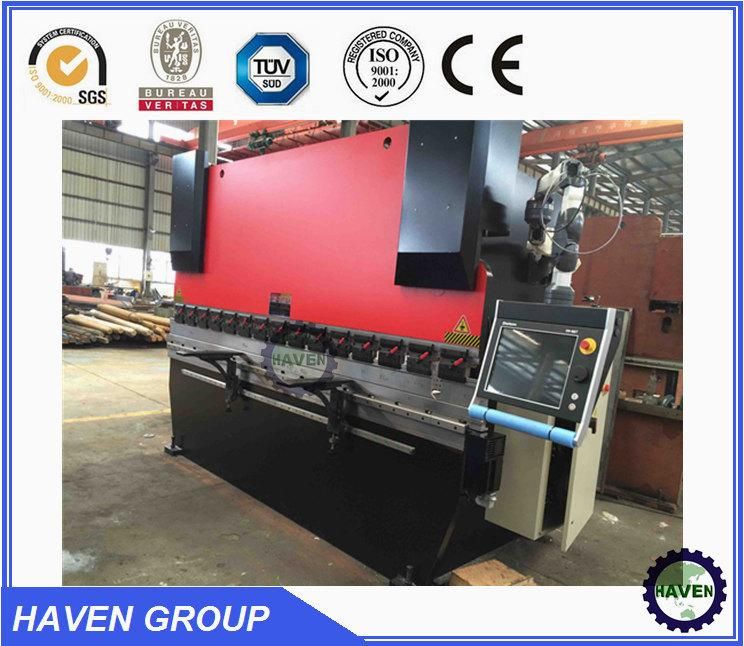

CNC Hydrualic Press Brake, Stainless Steel Bendig Machine, CNC Folding and Bending Machine We67k 400X5000

1. ESTUN E21 NC control + Frequency inverter

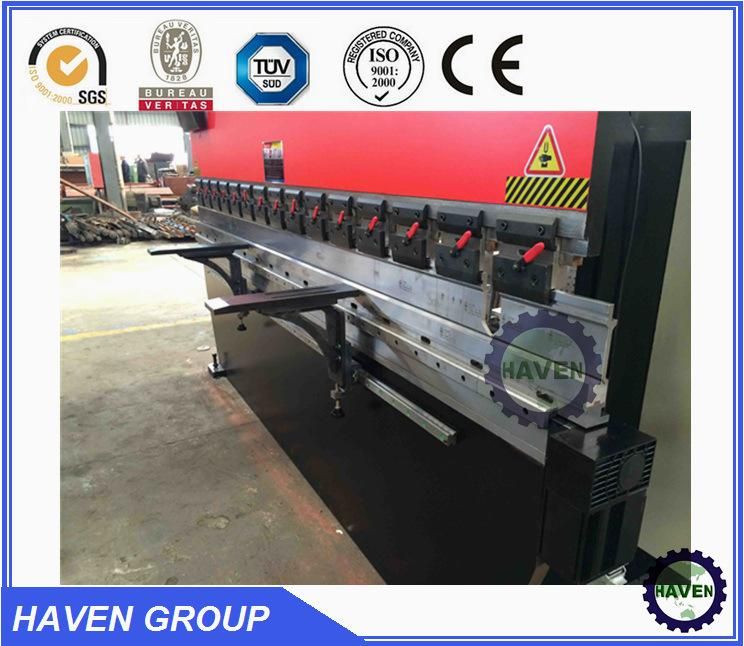

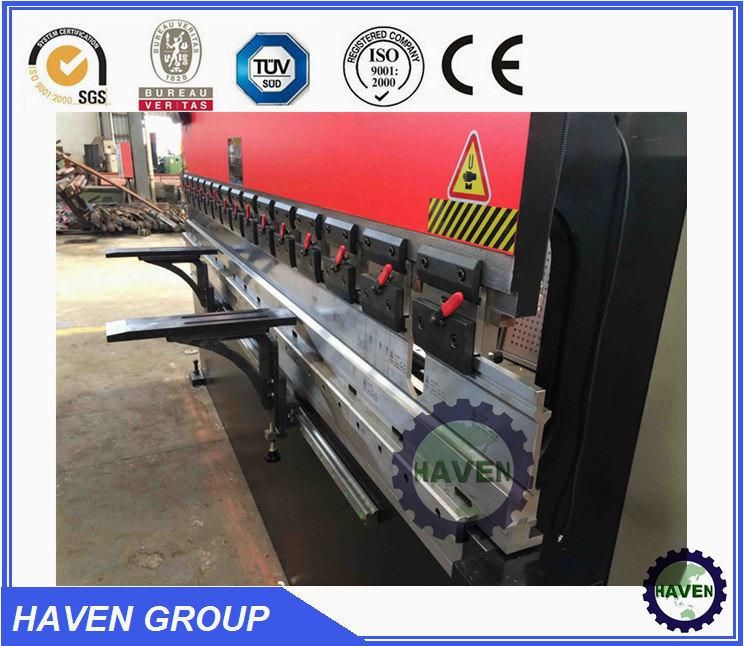

 2.Front support arms
3. Motorized stroke adjustment
4. T slot on both front side and back side of the worktable
5.  OMAGE Hydraulic valve
6.  SUNNY hydraulic pump
7.  Siemens famous brand motor
8.  Siemens or Schneider Electric parts
9.  Machine power is turn-off when the electric cabinet door opened

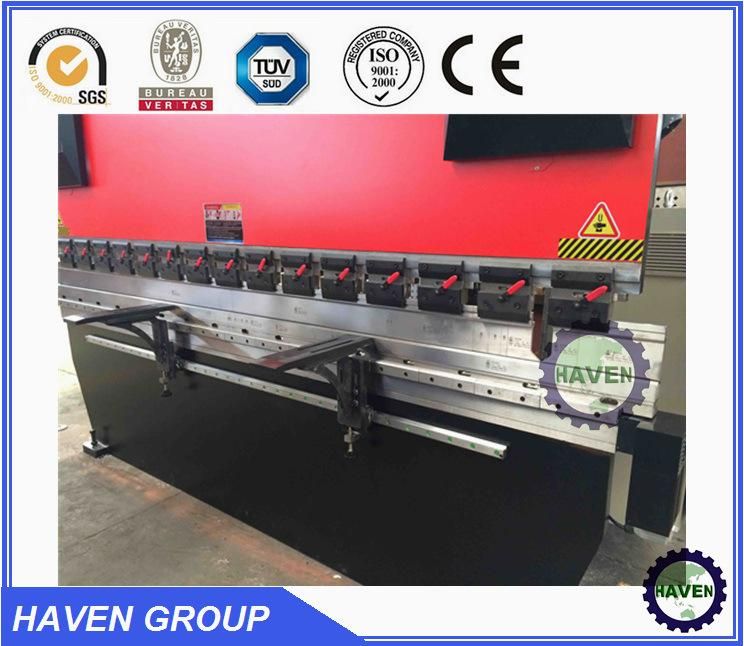

10. Upper clamps with Anti Wedges
11. Hydraulic and Electrical overload protection
12. Side safety guard and Full height back safety guard
13. With standard Top punch and Bottom Die
14. Back gauge beam is made of profile steel and liner guide
15. Back gauge is supported with ball screw and polished steel round bar with 0,05mm accuracy
2. Estun E21 NC Press Brake Control system:
1. Monochrome LCD Box Panel.
2. Integral factor programmable freely
3. Automatic positioning control
5.Internal time relay
6.Ram stroke counter
3. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement
4. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
5. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
6. Main features
1. The whole machine is in sheet plate welded structure, which internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.
2. Double hydraulic oil cylinder is applied for upper transmission, provided with mechanical limit stopper and synchronous torsion bar, stable and reliable operation, as well as high precision.
3. Electrical adjustment and manual fine-tuning adjustment mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital display device, easy and quick in use.
4. Upper clamp is fitted with compensation device.
5. Worktable mechanical compensation or hydraulic compensation device is optional.

Main specification:

Models	Nomal Pressure (Kn)	Length of Table (mm)	Distance Between Housing (mm)	Throat Depth (mm)	Stroke (mm)	Open Hight (mm)	Main Motor (Kw)	Weight (t)	Overall Dimensions (L × W × H) (mm)
WE67K-63/2500	630	2500	2000	320	150	380	5.5	5	2875× 1650× 2350
WE67K-63/3200	630	3200	2700	320	150	380	5.5	5.5	3800× 1650× 2450
WE67K-100/3200	1000	3200	2700	400	180	440	7.5	7.5	3810× 1750× 2530
WE67K 125/3200	1250	3200	2700	400	180	440	7.5	8.2	3820× 1800× 2530
WE67K-125/4000	1250	4000	3200	400	180	440	7.5	9	4600× 1800× 2580
WE67K 160/3200	1600	3200	2700	400	180	450	11	10.8	3830× 1870× 2560
WE67K 160/4000	1600	4000	3200	400	180	450	11	11.5	4610× 1920× 2700
WE67K-200/3200	2000	3200	2700	400	180	450	11	12.5	3900× 1920× 2560
WE67K-200/4000	2000	4000	3200	400	180	450	11	13.8	4620× 1950× 2700
WE67K-200/6000	2000	6000	4800	400	180	480	11	18.5	6080× 1950× 2900
WE67K-250/3200	2500	3200	2700	400	200	480	15	15	3900× 2150× 2950
WE67K-250/4000	2500	4000	3200	400	200	480	15	16.5	4080× 2150× 3000
WE67K-250/5000	2500	5000	4000	400	250	560	15	17.5	5080× 2200× 3250
WE67K-250/6000	2500	6000	4800	400	250	560	15	20	6080× 2200× 3400
WE67K-300/4000	3000	4000	3200	400	250	560	22	19	4080× 2200× 3200
WE67K-300/5000	3000	5000	4000	400	250	560	22	21	5100× 2200× 3300
WE67K-300/6000	3000	6000	4800	400	250	560	22	24	6200× 2200× 3500
WE67K-400/4000	4000	4000	3200	400	320	630	30	25	4100× 2400× 3500
WE67K-400/5000	4000	5000	4000	500	320	630	30	28	5200× 2600× 3700
WE67K-400/6000	4000	6000	4800	500	320	630	30	38	6200× 2650× 4800
WE67K-500/4000	5000	4000	3200	600	320	630	37	40	4200× 2800× 4600
WE67K-500/5000	5000	5000	4000	600	320	630	37	45	5200× 2800× 4900
WE67K-500/6000	5000	6000	4800	600	320	630	37	50	6200× 2800× 5200
WE67K-600/5000	6000	5000	4000	600	320	630	45	58	5200× 3000× 5300
WE67K-600/6000	6000	6000	4800	600	320	630	45	63	6200× 3000× 5600
WE67K-800/5000	8000	5000	4000	700	350	800	55	75	5200× 3500× 5600
WE67K-800/6000	8000	6000	4800	700	350	800	55	85	6200× 3500× 5800
WE67K-1000/6000	10000	5000	4800	700	400	800	55	105	6200× 4100× 6900
