• Model NO.：WE67K-160x3200
• Application：Machinery & Hardware
• Type for Fold-bending Machine：CNC Fold-bend Machine
• Transport Package：Steel Pallet
• Specification：Total 160t, 3200mm
• Trademark：HAVEN
• Origin：China
• HS Code：8459
• Production Capacity：30 Units,Month

Basic Info.

Model NO. WE67K-160x3200 Application Machinery & Hardware Type for Fold-bending Machine CNC Fold-bend Machine Transport Package Steel Pallet Specification Total 160t, 3200mm Trademark HAVEN Origin China HS Code 8459 Production Capacity 30 Units/Month

Product Description

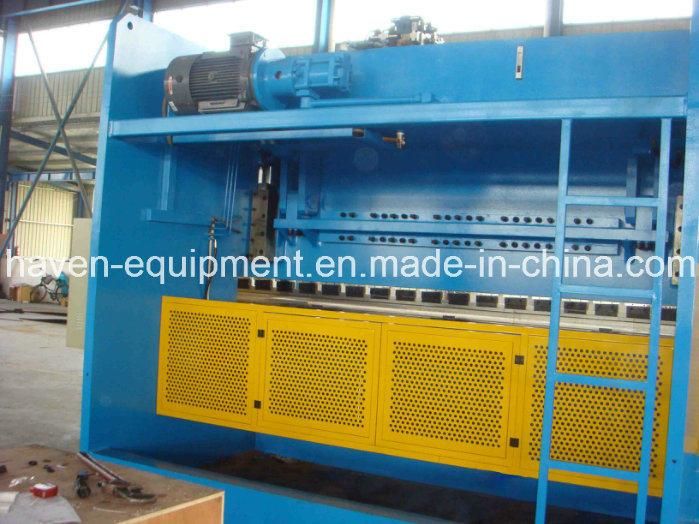

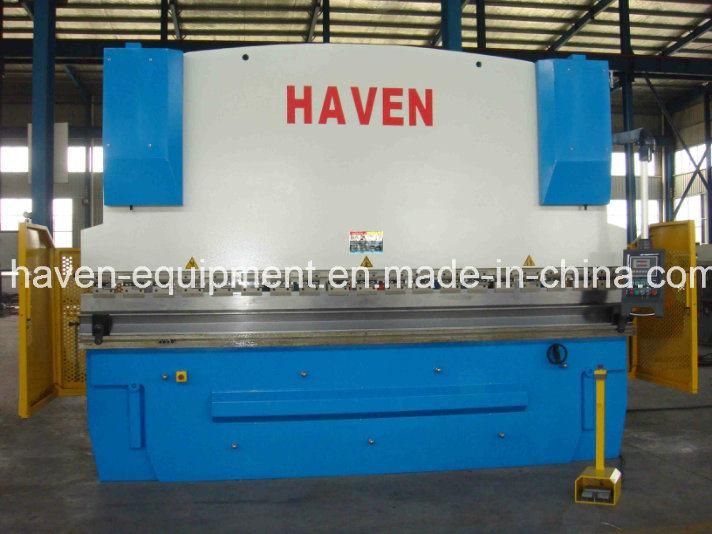

CNC Hydrualic Press Brake, Stainless Steel Bendig Machine, CNC Folding and Bending Machine We67k 160T3200

1. Equipped with DELEM CNC system made in Holland and other key parts such as
Linear scale, hydraulic valve, servo motor are all importing products.

2. There are two linear scales installed on "C" plates on both sides, which is fixed on worktable to eliminate the effect ion of deflection when working. The linear scale will inspect the both end positions of RAM (Y1, Y2) and send signal. After amplified by CNC amplifier, the signal will be fed back to computer. Then the computer will control the volume of oil, which is going to enter into cylinders. So the parallelism of RAM and worktable could be controlled under ± 0.01mm.
3. DELEM system has automatic testing and self-diagnosis functions. Also, Programming is simply composed of putting in sizes of plate to bend, dimensions of work piece and choosing tools. Then CNC system could calculate the bending force and position of back gauge and RAM automatically. Also the RAM penetrating and pressing time relay could be calculated.
4. Good quality electro-hydraulic proportional valve is adopted to ensure the synchronization of both cylinders as well good capacity to deal eccentric load.
5. The stroke of RAM and back gauge are all controlled by CNC system with good precision.
6. Main sliding parts such as cylinders, piston rod, guide way, are all treated with wear-resistance.
7. Back gauge adopts rolling ball screw and rolling guide way, so the repeat positioning precision of X axis could reach ± 0.1mm.
8. Full machine is guarded with safety guard and interlocker to protect the operator
From injured.

Main specification:

Type	Hydraulic CNC electro-hydraulic synchro
Working force	160 T
Length of table	3200 mm
distance between frames	2650 mm
Throat depth	320 mm
Open height	540 mm
Stroke	200mm
Approaching speed	100mm /s
Working speed	10mm /s
Return speed	90mm /s
Main motor	11kw
CNC system	Type: DELEM DA65W Delem Co., Netherlands 4 Axis(Y1,Y2,X,R) + (V) Automatic hydraulic compensation system
Tool	With 1 punching and 1 bottom die
Main Electric Elements in cabinet	Schneider or Siemens
Seal in the cylinders	NOK, made in Japan
Gross weight	11200 kg
Packing size(mm) LxWxH	3450x2150x3000
Packing:	With plastic cover Transportation:1x20' OPEN TOP CONTAINER
