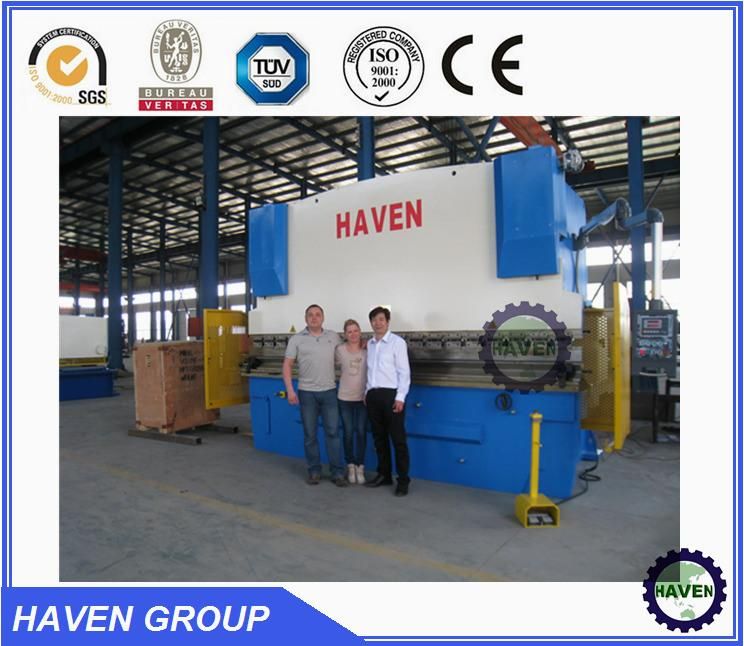

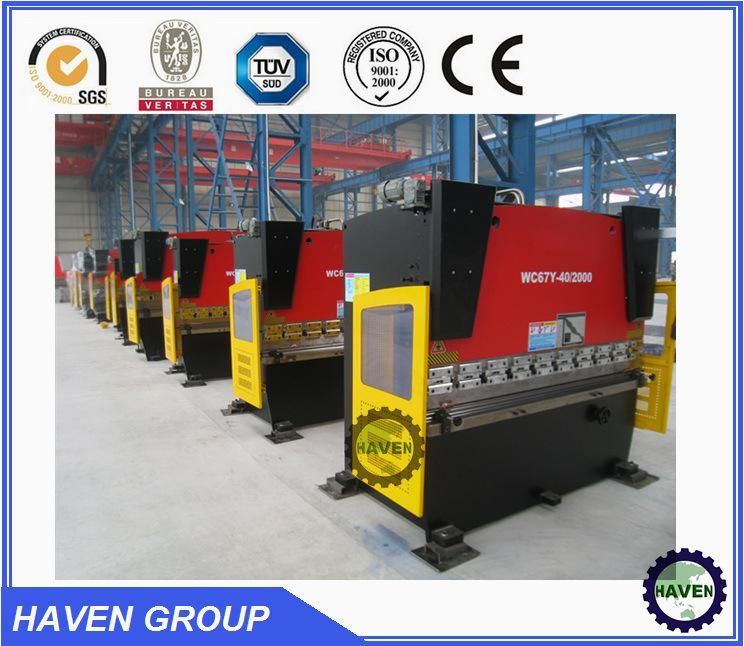

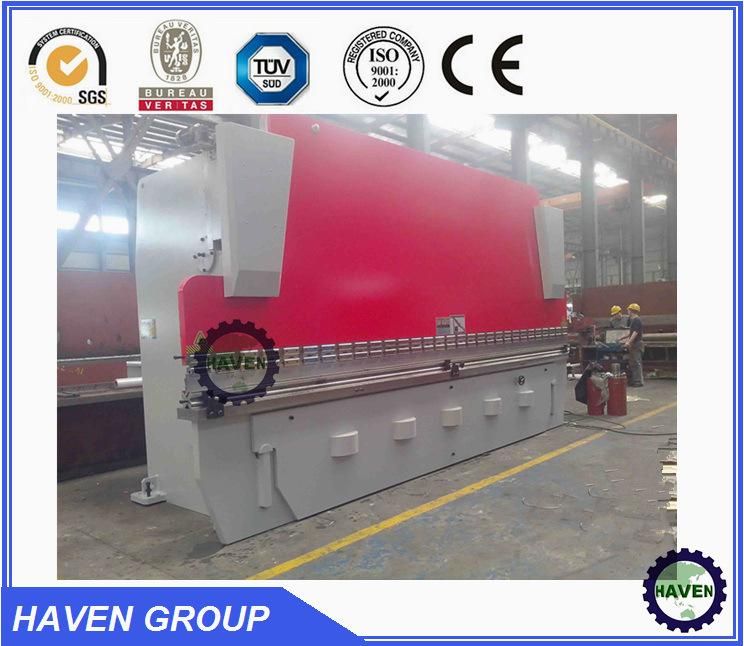

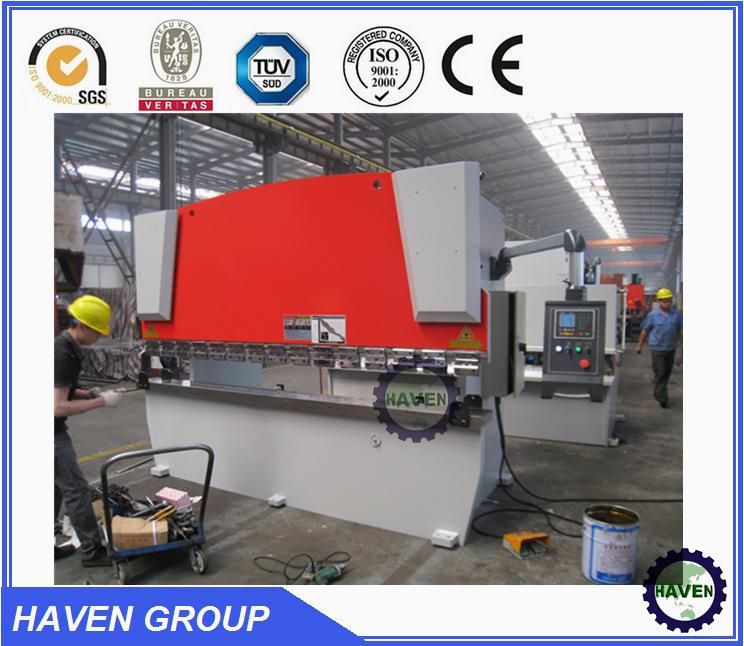

WC67Y Series Hydraulic Type Steel Plate Press Brake and Bending Machine
Shaanxi HAVEN Equipment Co., Ltd.- Warranty：1-year
- Condition：New
- Certification：ISO 9001:2000
- Automation：Semi-Automatic
- Type：Press Brake

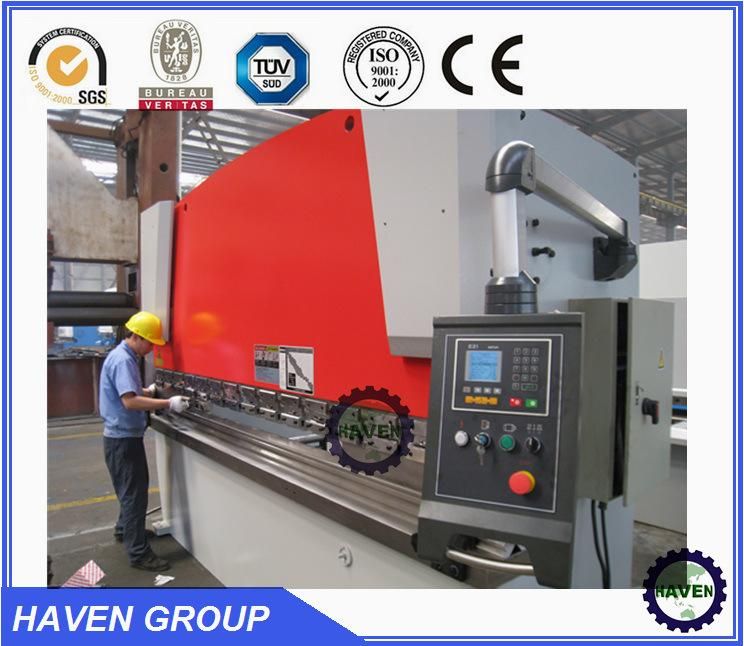

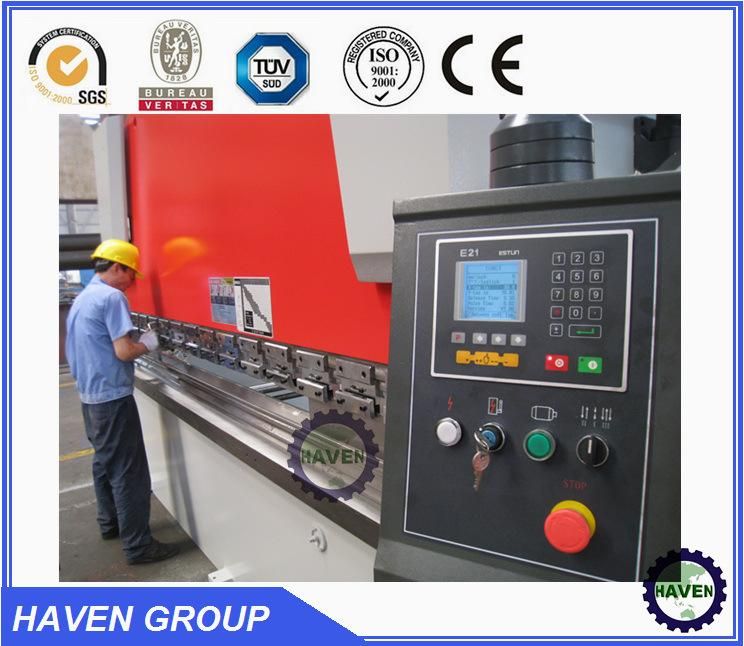

- Press Brake with Mould：E10 Digital Readout
Base Info
- Model NO.：WC67Y
- Application：Machinery
- Type for Fold-bending Machine：Hydraulic Fold-bend Machine
- Transport Package：Steel Pallet
- Specification：CE Standard
- Trademark：HAVEN
- Origin：China
- HS Code：8455
- Production Capacity：100unit,Month
Description
modelNormal pressure(kn) Working table length (mm) Distance between housing Throat depth (mm) Ram travel (mm) Max. open height Adjust- ment of ram travel (mm) Working table Height (mm) Main motor speed Oil flow rate (L/min) Machine overall Dimension (mm) L x W x H Machine weight(T) Power (kw) Speed (mm/s) Approach/ Working/ return 30x1300 300 1300 1110 200 40 275 80 710 3 1440 8 / 6 / 8 10 1800x1550x1900 1.8 30x1600 300 1600 1225 200 40 275 80 710 3 1440 8 / 6 / 8 10 1950x1550x1900 2.1 40x1300 400 1300 1080 200 100 275 80 710 4 1440 8 / 6 / 8 10 1950x1550x1990 2.1 40x1600 400 1600 1200 200 100 320 80 710 4 1440 8 / 6 / 8 10 1950x1550x1900 2.3 40x2000 400 2000 1500 220 100 320 80 730 4 1440 8 / 6 / 8 10 2150x1600x1980 2.8 40x2200 400 2200 1500 220 100 320 80 740 4 1440 8 / 6 / 8 10 2250x1700x1950 3 40x2500 400 2500 2000 220 100 320 80 730 4 1440 8 / 6 / 8 10 2505x1125x2000 3.1 50x2500 500 2500 1900 250 120 300 120 750 5.5 1440 8 / 6 / 8 10 2570x1270x1800 3.3 50x3200 500 3200 2600 250 120 300 120 750 5.5 1440 8 / 6 / 8 10 3270x1350x1960 3.2 63x2000 630 2000 1500 250 100 360 100 770 5.5 960 8 / 6 / 8 25 2060x1725x2280 3.8 63x2500 630 2500 2050 250 100 360 100 770 5.5 960 8 / 6 / 8 25 2560x1725x2280 4.2 63x3200 630 3200 2600 250 100 360 100 770 5.5 960 8 / 6 / 8 25 3260x1700x2260 5.5 80x3200 800 3200 2600 250 100 360 100 780 7.5 960 8 / 6 / 8 25 3520x1620x2230 6.6 80x4000 800 4000 3200 250 100 360 100 780 7.5 960 8 / 6 / 8 25 4050x1820x2280 7.5 100x2500 1000 2500 2050 320 130 390 100 850 7.5 960 8 / 6 / 8 25 2600x1750x2230 6.8 100x3200 1000 3200 2600 320 130 390 100 850 7.5 960 8 / 6 / 8 25 3500x1750x2230 7.2 100x4000 1000 4000 3200 320 130 390 100 850 7.5 960 8 / 6 / 8 25 4060x1800x2500 8.2 100x5000 1000 5000 4080 320 130 390 100 850 7.5 960 8 / 6 / 8 25 5100x1800x2700 9 125x2500 1250 2500 2050 320 130 390 100 850 11 960 8 / 6 / 8 25 2600x1750x2330 7.8 125x3200 1250 3200 2600 320 130 390 100 850 11 960 8 / 6 / 8 25 3500x1750x2330 7.5 125x4000 1250 4000 3200 320 130 390 100 850 11 960 8 / 6 / 8 25 4080x1750x2500 7.5 125x5000 1250 5000 4080 320 130 390 100 850 11 960 8 / 6 / 8 25 5080x1750x2600 7.5 160x3200 1600 3200 2600 320 200 470 160 840 11 960 7 / 5 / 7 25 3400x2100x2520 10.5 160x4000 1600 4000 3200 320 200 470 160 840 11 960 7 / 5 / 7 25 4060x2100x2600 11.8 160x5000 1600 5000 4080 320 200 470 160 840 11 960 7 / 5 / 7 25 5080x2100x2600 14 160x6000 1600 6000 4800 320 200 470 160 840 11 960 7 / 5 / 7 25 6100x2100x2680 15.8 200x3200 2000 3200 2600 320 200 520 180 850 15 960 7 / 5 / 7 63 3400x2200x2650 12.8 200x4000 2000 4000 3200 320 200 520 180 850 15 960 7 / 5 / 7 63 4080x2200x2650 14.5 200x5000 2000 5000 4080 320 200 520 180 850 15 960 7 / 5 / 7 63 5100x2200x2660 16 200x6000 2000 6000 4800 320 200 520 180 850 15 960 7 / 5 / 7 63 6120x2200x2660 17.5 250x3200 2500 3200 2600 400 250 560 220 865 18.5 960 7 / 5 / 7 63 3400x2300x2800 13.5 250x4000 2500 4000 3200 400 250 560 220 865 18.5 960 7 / 5 / 7 63 4120x2300x2800 15 250x5000 2500 5000 4080 400 250 560 220 865 18.5 960 7 / 5 / 7 63 5100x2300x2850 17 250x6000 2500 6000 4800 400 250 560 220 865 18.5 960 7 / 5 / 7 63 6120x2300x2900 19
