• Model NO.：GM-SB-168NCB
• Type：Pipe and Tube Bending Machine
• Bending Theory：Cold Bending
• Technical：Draw Bending,Drawing Bending+Booster,Rolling
• Applicable Pipe Shape：Round, Rectangle, Square, Oval, Solid Bar, Profile
• Cooling System：Water Cooling,Fan Cooling
• Machine Type：Hydraulic
• Transport Package：Iron Frame
• Specification：CBM
• Trademark：GMACC
• Origin：China
• HS Code：8462219000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-SB-168NCB Type Pipe and Tube Bending Machine Bending Theory Cold Bending Technical Draw Bending/Drawing Bending+Booster/Rolling Applicable Pipe Shape Round, Rectangle, Square, Oval, Solid Bar, Profile Cooling System Water Cooling/Fan Cooling Machine Type Hydraulic Transport Package Iron Frame Specification CBM Trademark GMACC Origin China HS Code 8462219000 Production Capacity 5000PCS/Year

Product Description

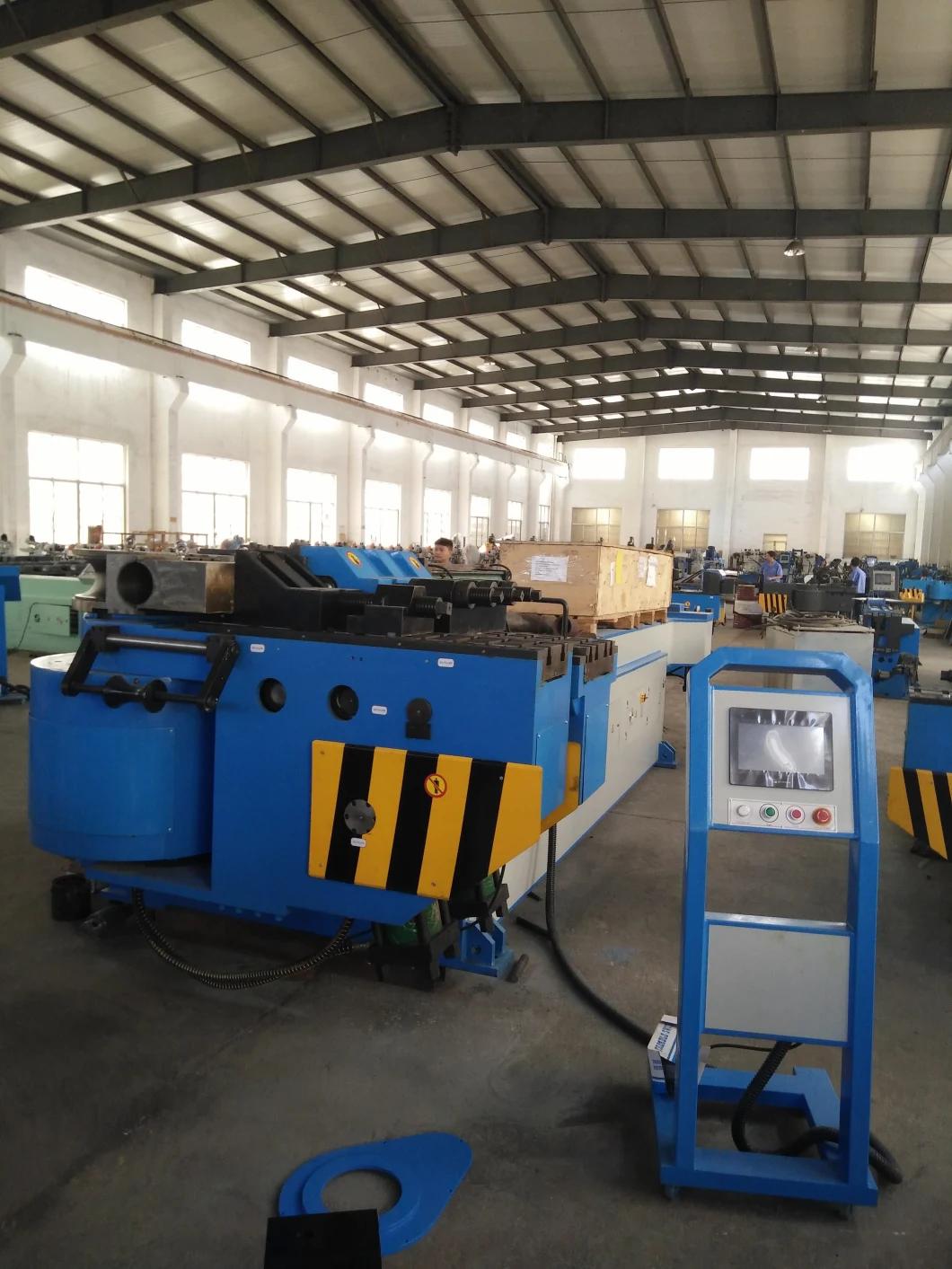

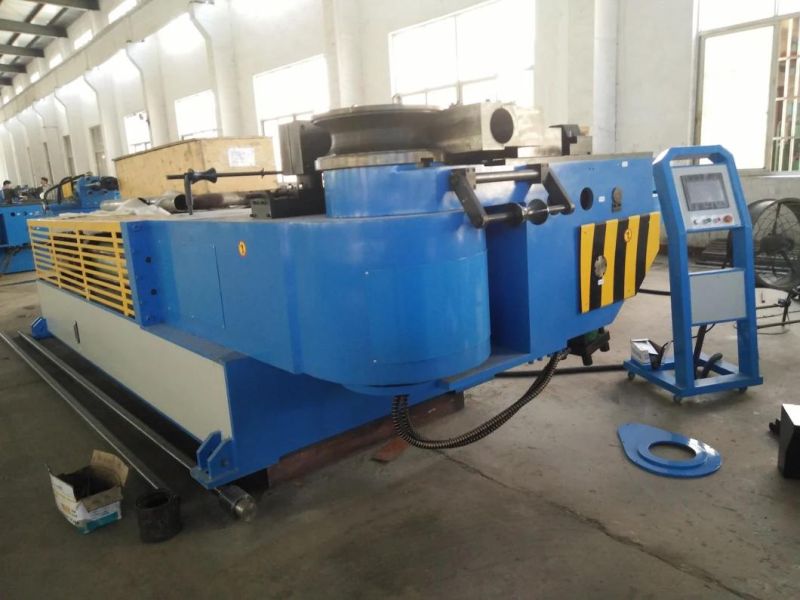

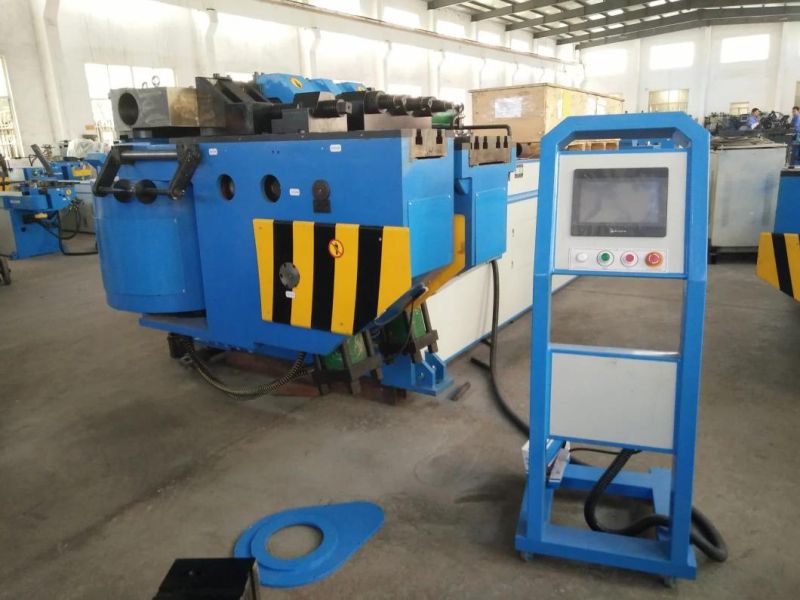

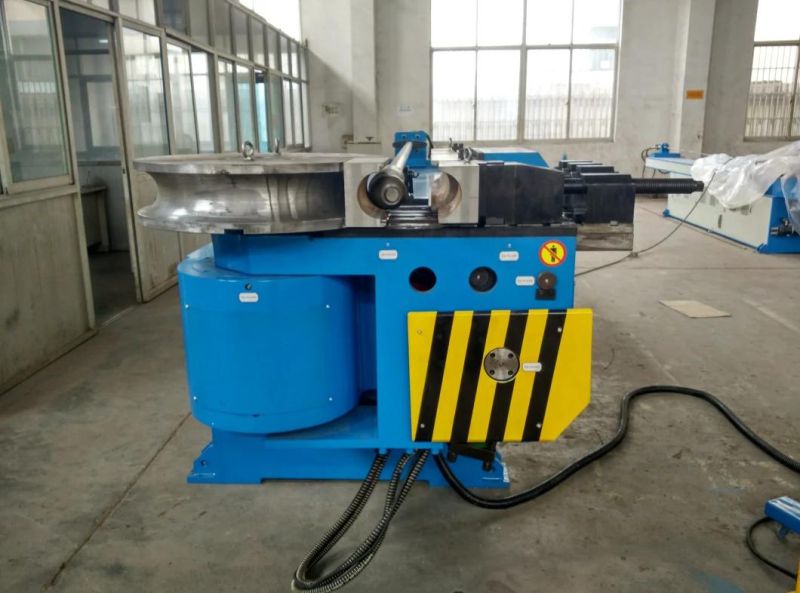

Economical and Practical Hot Sell Hydraulic Rolling Exhaust Tube Bender Machine (GM-SB-168NCB)

• Machine Characteristic

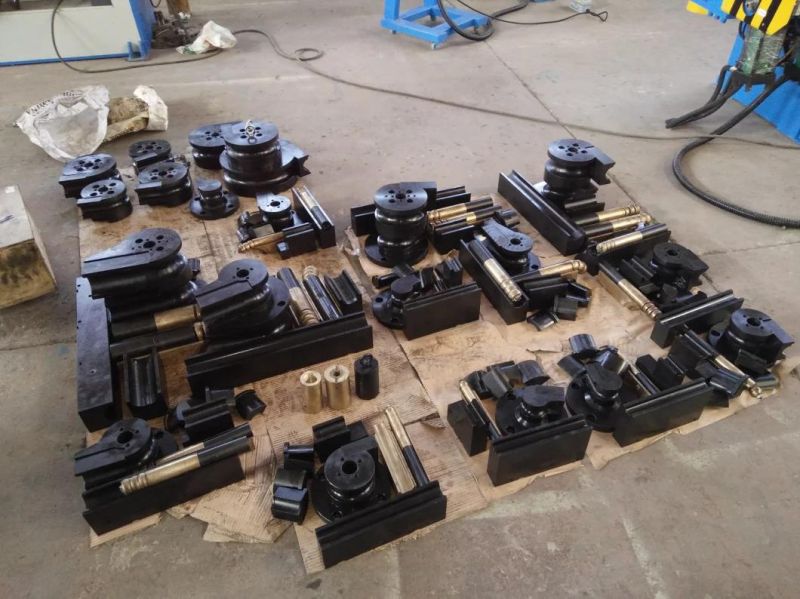

Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.

• Main Technical Parameter

Name	Unit	Parameter
Mild steel round tube	mm	168*18
Stainless Steel	mm	168*12
Light alloy annealed round tube	mm	168*20
Mild steel square tube	mm	150*150*12
Mild steel rectangular tube	mm	155*145*12
Mild steel round solid bar	mm	95
Mild steel square solid bar	mm	85*85
Min. bending radius	mm	60
Max. Bending radius(Standard)	mm	750
Head overhang (on bending centre)	mm	718
Head height (on bending centre)	mm	880
Bending centre height (from floor)	mm	1180
Max. Bending Angle	°	190°
Through Effective Distance	mm	5600
Bending Speed(Max.)	°/sec	8
Bending angle Precision	°	±0.10
System Motor Power	KW	22
Hydraulic Pump Volume	L	56
Max. Pressure	Mpa	16
L*W*H (Packaging Dimension)	mm	7200*2200*1450
Machine Weight	T	14

Configuration of Hydraulic and Electronic Control System

Name	Manufacturer
Hydraulic Motor	Germany Siemens(Beide)or Runmali
Hydraulic Pump	Yuci Yuken/Wuxi Tuoli
Hydraulic Valve	Japan Yuken(Imported)
Cylinder	Shanghai Qifan
Touch screen	Taiwan Weinview(Imported)
PLC	Japan Mitsubishi(Imported)
Angle controller	Japan Nemicon(Imported)
Switch power	Wenzhou Changxing
Contactor	German SCHNEIDER(Imported)
Transformer	Wuxi Xinyu

Production show








About us




FAQ:

1. Q: Are you  manufacturer or trading company?
    A: we are manufacturer,established over 20 years. We are focusing on pipe/tube/solid bar bending machines.

2. Q:Where is the nearest airport to your company?
    A: Wuxi Airport or Shanghai Airport.

3. Q: How to choose the pipe/tube bending machines?
     A: You have to inform us following details:
         - Pipe Outdiameter Range
         - Wall thickness range
         - Bending Radius(Centerline radius)
         - The pipe material
         - how many bends on one piece of pipe
         - detailed drawing if possible

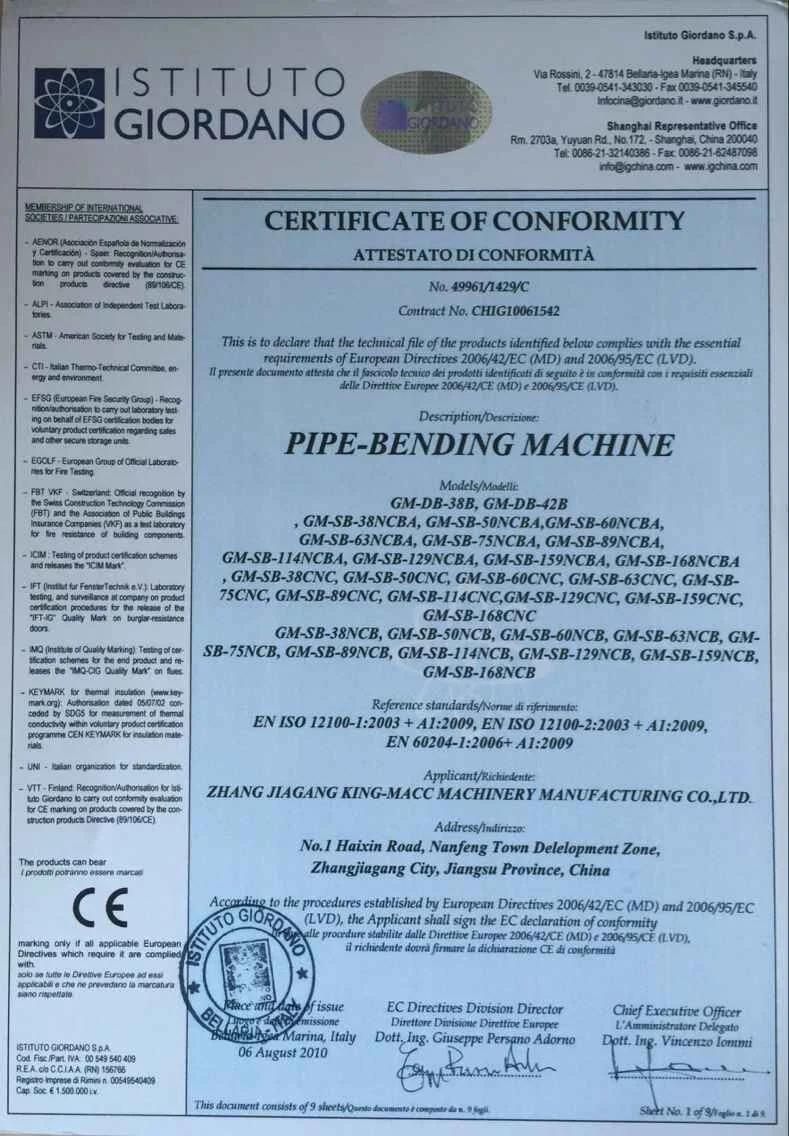

4. Q: What certificate do you have?
     A: We have both ISO and CE certificate.

5. Q:How about your service?
    A: Before Sales Serive:
         1. We will help our customer confirm the right machine model according to the offered pipe inforamtion.
        2. Welcome to visit our factory to see our machine and our workshop before you place an order.

     B: After Sales Service:
     1. We provide manual book,detailed machine installation,commissioning video to help you correctly operate machine.If you need our engineer to go to your factory for machine installation, air tickets,food,hotel,local transportation should be at your
account.
    2. If Any problems on machine,our engineer will solve for you through computer first,most problems can be solved by changing parts,if can't,our engineer can go to your factory to solve for you, we have experienced engineers for abroad market.
       For mechanical parts, which were made by ourselves,we have plenty in our stock,if you need,we can send to you by courier at once.
       For electronic parts, we all use famous brand, which you can buy it easily at your side.
