• Model NO.：GM-SB-159NCB
• Type：Pipe and Tube Bending Machine
• Certificate：ISO9001: 2000
• Applicable Material：S. S, M. S., Copper, Aluminium, Alloy, Galvanized
• Applicable Shape：Round, Rectangle, Square, Oval, Solid Bar, Profile
• Bending Drive：Hydraulic
• Technical：Cold Bend
• Transport Package：Iron Frame,Wooden Case
• Specification：CE
• Trademark：GMACC
• Origin：China
• HS Code：8462219000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-SB-159NCB Type Pipe and Tube Bending Machine Certificate ISO9001: 2000 Applicable Material S. S, M. S., Copper, Aluminium, Alloy, Galvanized Applicable Shape Round, Rectangle, Square, Oval, Solid Bar, Profile Bending Drive Hydraulic Technical Cold Bend Transport Package Iron Frame/Wooden Case Specification CE Trademark GMACC Origin China HS Code 8462219000 Production Capacity 5000PCS/Year

Product Description

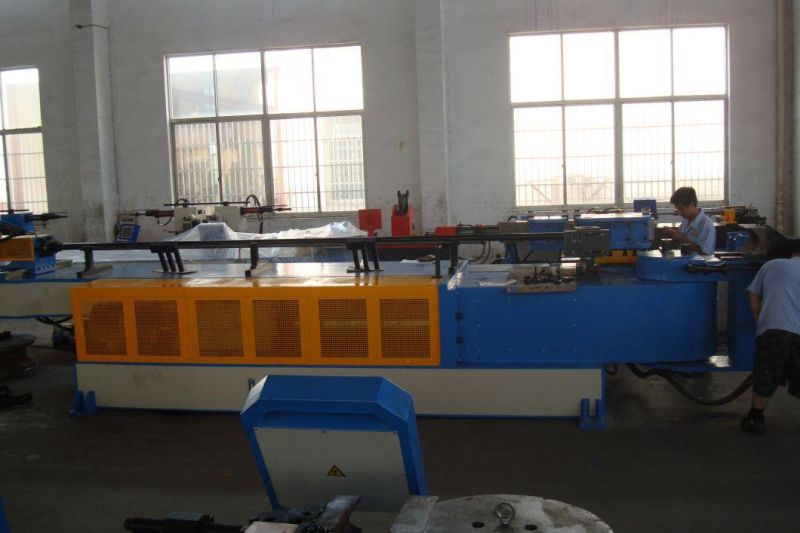

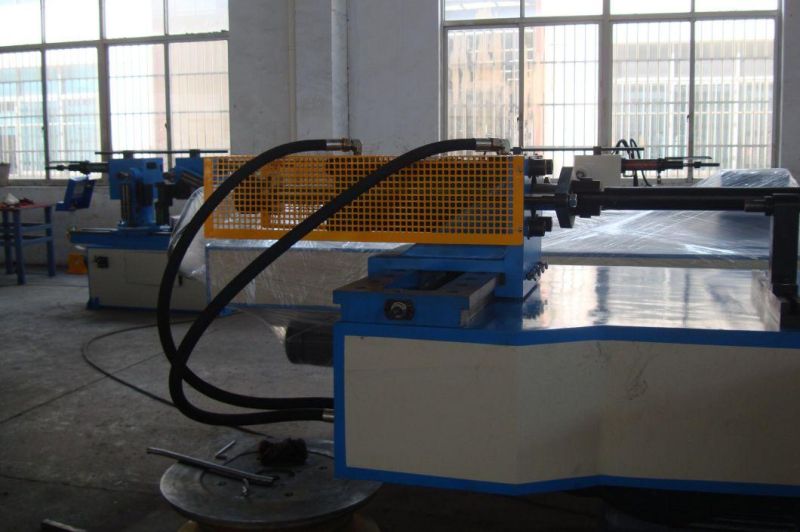

Technical Parameter and Configuration for Automatic Pipe Bending Machine GM-SB-159NCB

1. Machine Characteristic

Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.

1. Main Technical Parameter



Name	Unit	Parameter
Max. Bending Capacity	mm	¢159*18
Bending Radius Range	mm	60-750
Max. Bending Angle	°	190°
Though Effective Distance	mm	5600
Bending Precision	°	±0.10
System Motor Power	KW	22
Oil Pump Delivery Volume	L	14
Max. Pressure	Mpa	16
L*W*H (Packaging Dimension)	mm	7200*2200*1450
Machine Weight	T	14

Configuration of Hydraulic and Electronic Control System


Name	Manufacturer
Hydraulic Motor	Suzhou Jialifan
Hydraulic Pump	Wuxi Tuoli
Hydraulic Valve	Japan Yuken
Oil way Board	Suzhou Boguan
Cylinder	Shanghai Qifan
Oil tube	Suzhou Kejia
Touch screen	Taiwan Weinview
PLC	Japan Mitsubishi
Angle controller	Japan Nemicon
Switch power	Wenzhou Changxing
Contactor	German SCHNEIDER
Other Electric Parts	German SCHNEIDER,Omron, Taiwan SHILIN

FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer.We are focusing on metal pipe/tube processing machinery.
2. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- Bending radius (CLR)
- The pipe material
- The drawings if possible
3. Q: What certificate do you have?
A: We have both ISO and CE certificate.
4. Q: Where is your factory located?
A: Our factory is located in Zhangjiagang City, Jiangsu Province, about 2 hours to Shanghai by car. You can fly to
Shanghai Hongqiao or Pudong airport directly.Or we are about 1 hour to wuxi city by car. You can take fast train to
Wuxi railway station.
